Technical Specifications
Measuring Range:
Resolution:
Accuracy:
Repeatability:
Max measuring speed:
Measuring system:
Display:
Power:

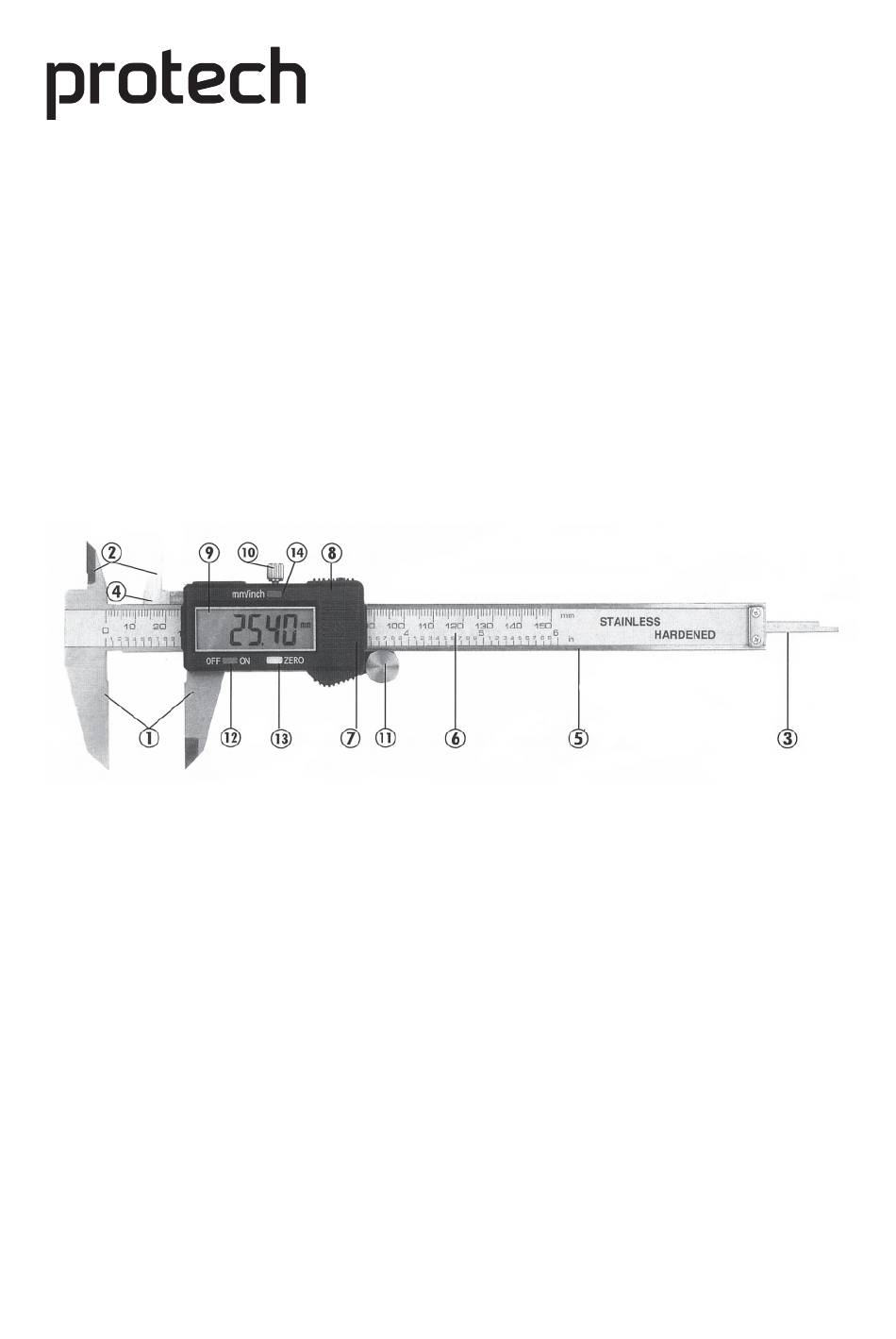

Features
1. External measuring jaws
2. Internal measuring jaws
3. Depth blade
4. Step measuring faces
5. Beam
Applications
1. Operation:
Slider can be removed only after the locking screw (#10) is loosened.
2. Basic measuring methods:
1) Loosen the locking screw
2) Press "on" button, select imperial or metric by pressing "mm/inch" button.
Pressing "mm/inch" button after measurement will display the imperial/metric conversion.
3) To reset display to zero, close external measuring jaws, then press "zero" button.
0 – 150mm / 0 – 6in
0.01mm
0.02mm / 0.001in (<100mm)
0.03mm/0.001in (>100mm – 150mm)
0.01mm/0.0005in
1.5m/sec, 60in/sec
Linear capacitive measuring system
LCD display
1 x LR44 1.5V
6. IMPERIAL & metric scale
7. Battery compartment
8. Output connector
9. LCD Display
10. Slider clamp screw
LCD Type Engineers Calipers
11. Thumb Roller
12. On/off switch
13. Zero switch
14. Imperial & metric conversion switch
TD2082
User Manual
Advertisement
Related Manuals for protech TD2082
Summary of Contents for protech TD2082
- Page 1 LCD Type Engineers Calipers TD2082 User Manual Technical Specifications Measuring Range: 0 – 150mm / 0 – 6in Resolution: 0.01mm Accuracy: 0.02mm / 0.001in (<100mm) 0.03mm/0.001in (>100mm – 150mm) Repeatability: 0.01mm/0.0005in Max measuring speed: 1.5m/sec, 60in/sec Measuring system: Linear capacitive measuring system...
- Page 2 Maintenance instructions 1. Keep the calliper clean and dry (liquid can damage the slider) 2. Use a clean, dry cloth to clean all surfaces – do not use solvents or solvent based cleaners. 3. To save power, turn of the unit when not in use. 4.
