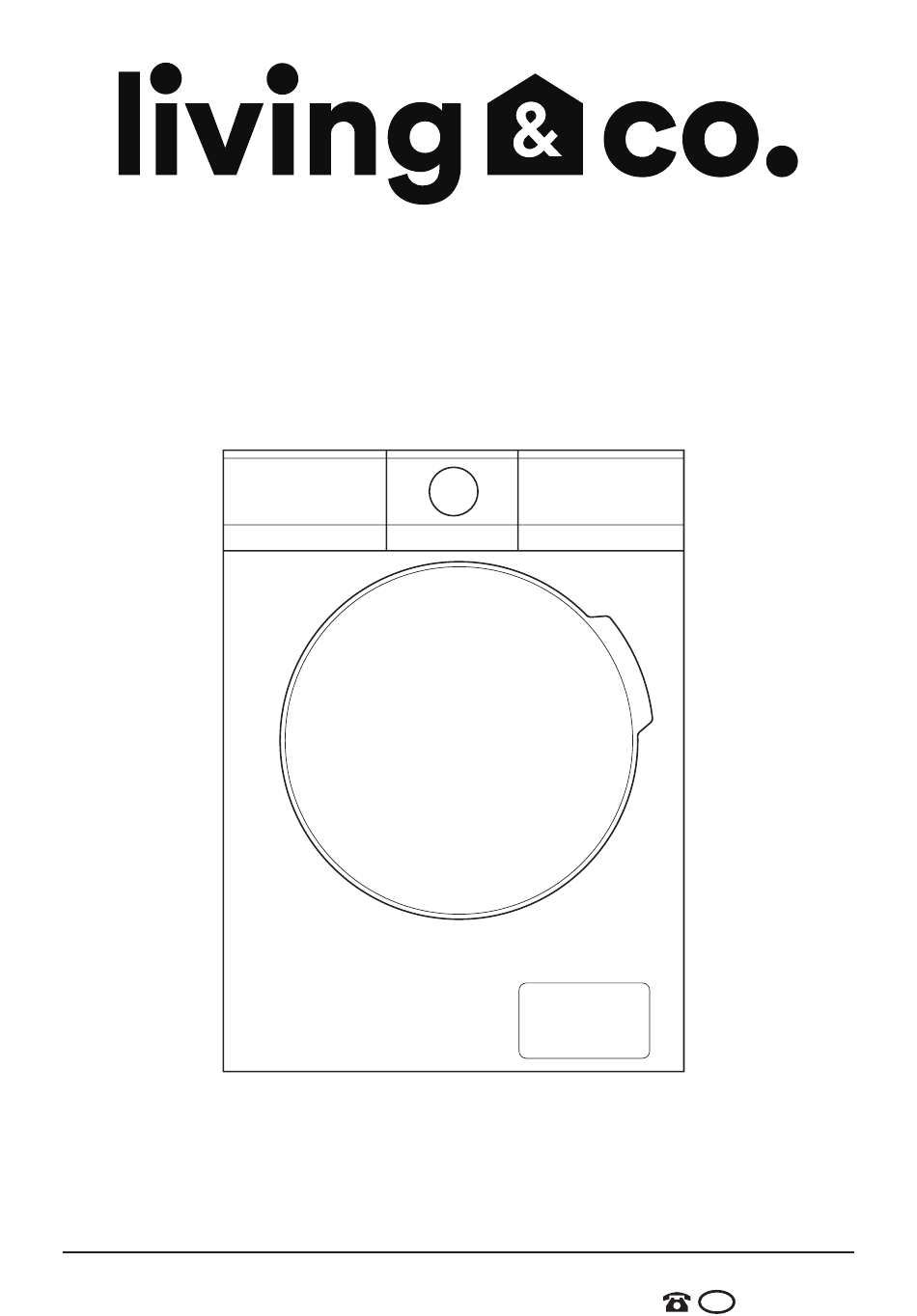

- Page 1 Washing Machine Model: MFM80-U1401B/C14E-AU User Manual AFTER SALES SUPPORT 0800 422 274...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety instructions P. 3 2. Product overview P. 6 3. Installing the product P. 7 4. Operating the washing machine P. 10 5. Maintenance P. 18 6. Troubleshooting P. 20 7. Technical specifications P. 21 8. Responsible disposal P. -
Page 3: Safety Instructions
1. Safety instructions For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Electric shock! • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. - Page 4 • The glass door may be very hot during the operation. Keep children and pets far away from the machine during the operation. Risk of explosion! • Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances such as wax, oil, paint and gasoline. Otherwise, it may cause fire or explosion.
- Page 5 • Cautions to take when transporting the machine: 1. Transport bolts must be reinstalled to the machine by a qualified person. 2. The remaining water should be drained out of the machine. 3. Handle the machine carefully. Never hold any protruded part on the machine while lifting it.
-
Page 6: Product Overview
2. Product overview 2.1 Main parts Top cover Water supply hose Control panel Power supply cord Detergent drawer Drum Filter (behind Door access panel) Drain hose 2.2 Accessories 4 x Hole plug 1 x Inlet hose 1 x Inlet hose 1 x Drain hose 1 x User manual (cold water) (hot water) support (optional) (optional) -
Page 7: Installing The Product
3. Installing the product 3.1 Selecting a location Before installing the appliance, select a location that matches the following criteria: Rigid, dry, and level surface Not exposed to direct sunlight Has sufficient ventilation Has a room temperature above 0°C Far away from heat sources such as coal or gas. Ensure that the appliance is not placed on the power cord. -
Page 8: Levelling The Washing Machine
3.4 Levelling the washing machine Important: The lock nuts on all four feet must be screwed tightly against the housing. 1. Check if the legs are closely attached to the cabinet. If not, turn them to their original positions and tighten the lock nuts. 2. - Page 9 Connect the other end of inlet hose to the water inlet valve on the back of the machine and fasten it by turning the screw clockwise. water Inlet valve water supply hose 3.6 Connecting the drain hose Warning! • Do not kink or protract the drain hose. •...
-
Page 10: Operating The Washing Machine
4. Operating the washing machine 4.1 Quick start guide Caution! • Before using the washing machine, make sure it has been installed correctly including a check that the Transport Bolts have been removed! • Before washing clothes for the first time, you must run a complete cycle of a washing program without clothes. 1. Before washing earth Main terminal... -
Page 11: Preparing Your Laundry
4.2 Preparing your laundry Please check the washing label on each garment and follow the washing instructions on it. Use detergent suitable for machine washing. Check washing labels Remove all items from Tie up loose strings, close pockets zippers Put small items into the Turn thick clothes inside out Separate clothes with mesh bags different textures... -
Page 12: Detergent Drawer
4.3 Detergent drawer Prewash detergent Main wash detergent Softener Release button to pull out the dispenser Pull out the drawer Notes: • Add detergent to compartment I only if you are going to use the Prewash function. • Do not put laundry beads into the detergent drawer. Program Program Cotton... -
Page 13: Control Panel
4.4 Control Panel Wash On/Off Start/Pause Turn the appliance on and off. Start or pause the wash cycle. Options Programs Select additional washing options. Select a program suitable for the laundry type. Display The display shows settings, estimated remaining time, options and status messages. - Page 14 4.5 Options Delay To use the Delay function: 1. Select a program 2. Press the Delay button to choose the delay time (between 0 and 24 hours.) 3. Press [Start/Pause] to commence the delay operation Choose the Program Setting time Start Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be...
-
Page 15: Other Functions
Child Lock Use this function to prevent misuse by children. Press and hold [Function] and [Boost] for 3 Function Boost seconds until you hear a beep. • When the Child Lock is activated, the display will alternately show “CL” and the remaining time. • The Child Lock will lock all buttons except Power button and Child Lock button. •... - Page 16 4.7 Programs Various programs are available to suit different laundry types. Program Description Cotton Wash hard-wearing textiles, heat-resistant textiles made of cotton or linen. Synthetic Wash synthetic clothes such as shirts and coats. While washing knitted textiles, detergent quantity should be reduced due to their loose string construction and easily forming bubbles. Baby Care Wash baby clothes. This program improves rinse and cleaning performance to better protect baby skin.
-
Page 17: Program Selection Guide
4.8 Program selection guide Program Load (kg) Water temperature Wash Time (°C) Default Default Quick 45’ / 15' 0:45 Steam Hygiene 2:28 ECO Wash 0:59 1:01 20°C 1:07 Wool Spin Only 0:12 Drum Clean 1:18 Jeans 1:35 Sports 0:47 Baby Care 2:01 0:58 Synthetic... -
Page 18: Maintenance
5. Maintenance 5.1 Cleaning Warning! Before maintenance, pull out the power plug and turn off the water supply tap. 5.1.1 Cleaning the cabinet Proper maintenance of the appliance can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a wet cloth to wipe it off immediately. Avoid scraping the appliance’s surface with sharp objects. Note: • Do not use formic acid, its diluted solvents, or any equivalent. 5.1.2 Cleaning the drum Any rust left inside the drum by metal objects must be removed immediately with chlorine-free detergents. - Page 19 5.1.5 Cleaning the detergent drawer 1. Press down the arrow location on the softener cover inside the drawer. 2. Lift the clip up and take out the drawer. Then wash all grooves with water. 3. Reinstall the softener cover and push the drawer back into position. Press A and pull out Clean the drawer Clean inside the...
-
Page 20: Troubleshooting
Notes: • Make sure you reinstall the emergency drain hose properly to prevent water leakage. • There may be hot water in the filter while the machine is in use, depending on the selected program. Never open the filter cover during a wash cycle. Always wait until the machine has finished the wash cycle and is empty. Make sure that the filter cover is tightly secured during replacement. 6. Troubleshooting If the machine has a problem, follow the guide below to try and resolve it. If you are unable to fix it, contact the after sales support. Problem Possible cause Solution Washing machine Door is not closed properly Close the door properly cannot start up... -
Page 21: Technical Specifications
7. Technical specifications MFM80-U1401B/C14E-AU Model Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 8.0kg Dimension 595mm 850mm 475mm Weight 63kg Rated Power 1950W Reference Dimension 535mm 521mm 985mm 135mm 8. Responsible disposal At the end of its working life, do not throw this appliance out with your household rubbish. - Page 22 Read the manual. It will help you get the STOP best out of your product. BEFORE RETURNING Still have questions? TO STORE Call After Sales Support 0800 422 274 Warranty We pride ourselves on producing a range of quality products that are both packed with features and completely reliable.
