Sanyo TPM 2140 Service Manual

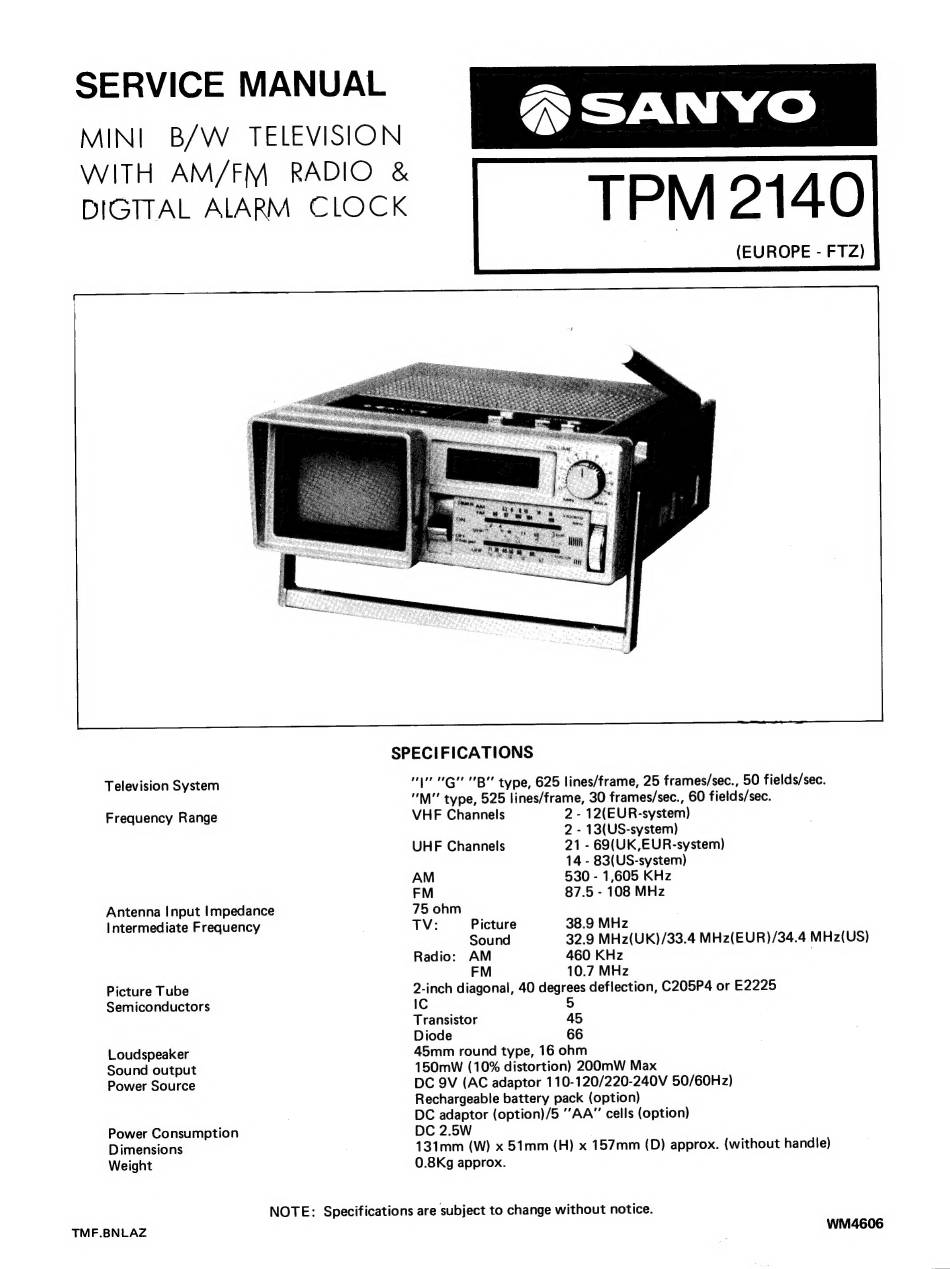

SERVICE MANUAL
Television System
Frequency Range
Antenna Input Impedance
Intermediate Frequency
Picture Tube
Semiconductors
Loudspeaker
Sound output
Power Source
Power Consumption
Dimensions
Weight
(EUROPE - FTZ)
SPECIFICATIONS
VHF Channels 2 - 12(EUR-system)
2 - 13(US-system)
UHF Channels 21 - 69(UK,EUR-system)
14 - 83(US-system)
AM 530 - 1,605 KHz
FM 87.5 - 108 MHz
75 ohm
TV: Picture 38.9 MHz
Sound 32.9 MHz(UK)/33.4 MHz(EUR)/34.4 MHz(US)
Radio:
AM
460 KHz
FM 10.7 MHz
2-inch diagonal, 40 degrees deflection, C205P4 or E2225
IC 5
Transistor 45
Diode 66
45mm round type, 16 ohm
150mW (10% distortion) 200mW Max
DC 9V (AC adaptor 110-120/220-240V 50/60Hz)
Rechargeable battery pack (option)
DC adaptor (option)/5 "AA" cells (option)
DC 2.5W
TMF.BNLAZ
WM4606
