Sony CDP-0945 Service Manual

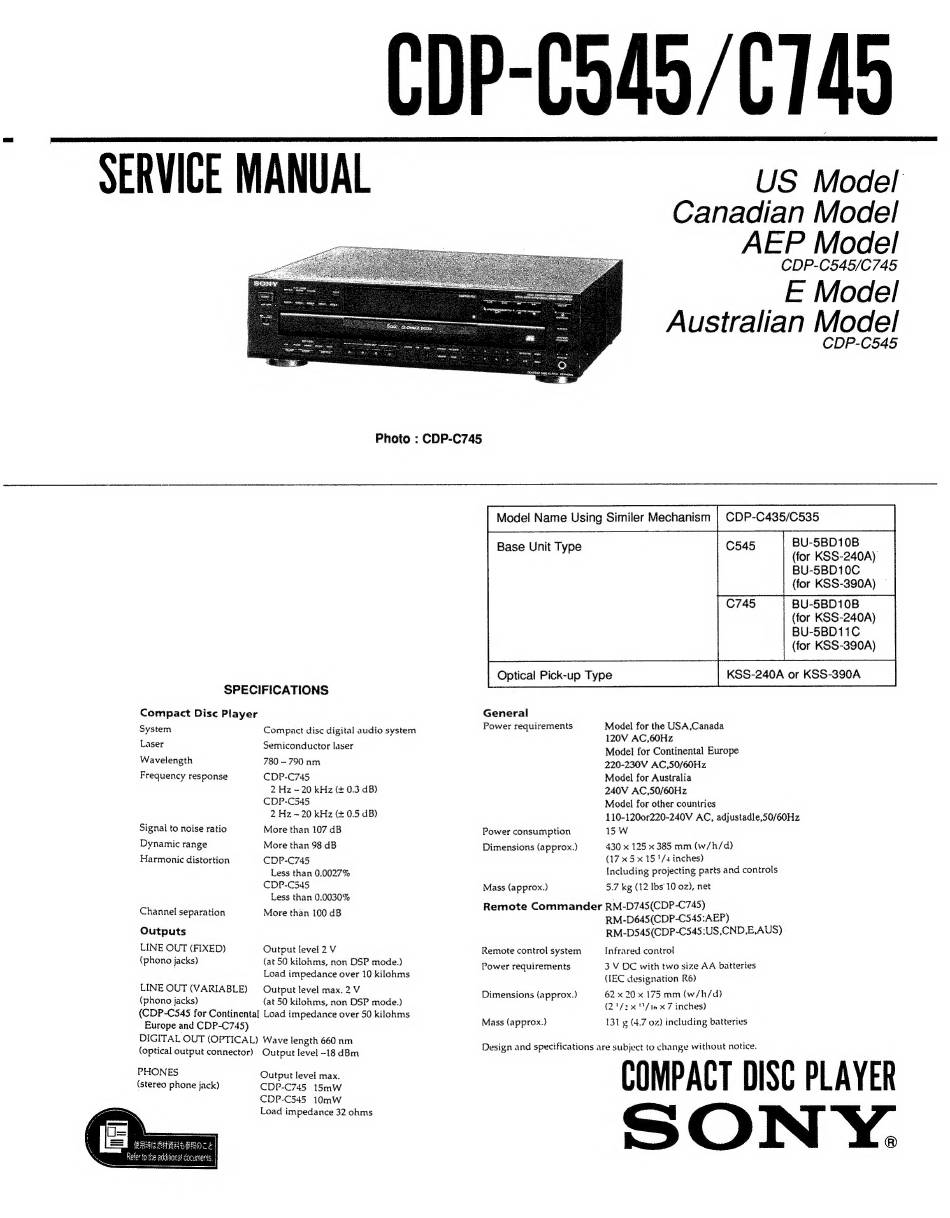

CDP-0945/0745
SERVICE MANUAL
Photo : CDP-C745
SPECIFICATIONS
Compact Disc Player
System Compact disc digital audio system
Laser Semiconductor laser
Wavelength 780 - 790 nm
Frequency response CDP-C745
2 Hz ~ 20 kHz (+ 0.3 dB)
CDP-C545
2 Hz - 20 kHz (+ 0.5 dB)
Signal to noise ratio More than 107 dB
Dynamic range More than 98 dB
Harmonic distortion CDP-C745
Less than 0.0027%
CDP-C545
Less than 0.0030%
Channel separation More than 100 dB
Outputs
LINE OUT (FIXED)
(phono jacks)
Output level 2 V
(at 50 kilohms, non DSP mode.)
Load impedance over 10 kilohms
LINE OUT (VARIABLE) Output fevel max. 2 V
(phono jacks) (at 50 kilohms, non DSP mode.)
(CDP-C545 for Continental Load impedance over 50 kilohms
Europe and CDP-C745)
DIGITAL OUT (OPTICAL) Wave length 660 nm
(optical output connector) Output level -18 dBm
PHONES
(stereo phone jack)
Output level max.
CDP-C745 15mW
CDP-C545 10mW
Load impedance 32 ohms
US Model
Canadian Model
AEP Model
CDP-C545/C745
E Model
Australian Model
CDP-C545
CDP-C435/C535
C545 BU-5BD10B
(for KSS-240A)
BU-5BD10C
(for KSS-390A)
BU-5BD10B
(for KSS-240A)
BU-5BD11C
(for KSS-390A)
KSS-240A or KSS-390A
Model for the USA,Canada
120V AC,60Hz
Model for Continental Europe
220-230V AC,50/60Hz
Model for Australia
240V AC,50/60Hz
Model for other countries
110-1200r220-240V AC, adjustadle,50/60Hz
15 W
430 x 125 x 385 mm (w/h/d)
(17x 5x15 '/4 inches)
Including projecting parts and controls
5.7 kg (12 lbs 10 02), net
Model Name Using Similer Mechanism
Base Unit Type
Optical Pick-up Type
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
Remote Commander RM-D745(CDP-C745)
RM-D645(CDP-C545:AEP)
RM-D545(CDP-C545:US ,CND,E,AUS)
Infrared control
3 V DOC with two size AA batteries
(IEC designation R6)
62 x 20 x 175 mm (w/h/d)
(2'/2* "/t» x7 inches)
131 g (4.7 oz) including batteries
Remote control system
Power requirements
Dimensions (approx.)
Mass (approx.)
Design and specifications are subject to change without notice.
COMPACT DISC PLAYER
SONTY.
