Sony CDP-608ESD Service Manual

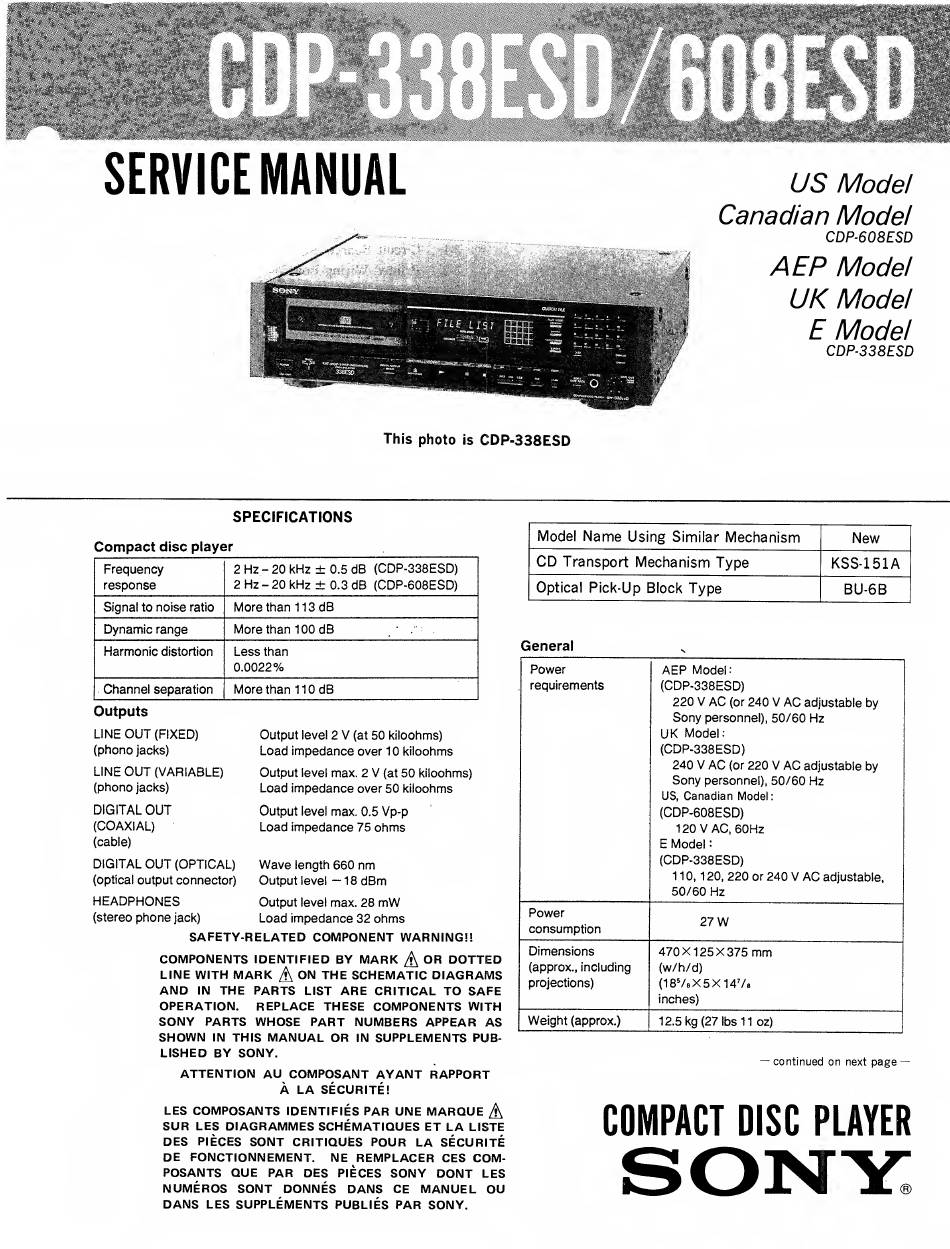

SERVICE MANUAL
US Model
Canadian Model
CDP-608ESD
AEP Model
UK Model
E Model
CDP-338ESD
This photo is CDP-338ESD
SPECIFICATIONS
Compact disc player
Frequency
response
2 Hz-20 kHz ± 0.5 dB (CDP-338ESD)
2 Hz - 20 kHz ± 0.3 dB (CDP-608ESD)
Signal to noise ratio More than 113 dB
Dynamic range More than 100 dB
Harmonic distortion Less than
0.0022%
Channel separation More than 110 dB
Outputs
LINE OUT (FIXED) Output level 2 V (at 50 kiloohms)
(phono jacks) Load impedance over 10 kiloohms
LINE OUT (VARIABLE) Output level max. 2 V (at 50 kiloohms)
(phono jacks) Load impedance over 50 kiloohms
DIGITAL OUT Output level max. 0.5 Vp-p
(COAXIAL) Load impedance 75 ohms
(cable)
DIGITAL OUT (OPTICAL) Wave length 660 nm
(optical output connector) Output level — 18 dBm
HEADPHONES Output level max. 28 mW
(stereo phone jack) Load impedance 32 ohms
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK OR DOTTED
LINE WITH MARK ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB¬
LISHED BY SONY.
ATTENTION AU COMPOSANT AY ANT RAPPORT
A LA SECURITE!
Model Name Using Similar Mechanism
New
CD Transport Mechanism Type
KSS-151A
Optical Pick-Up Block Type
BU-6B
General
Power
requirements
AEP Model:
(CDP-338ESD)
220 V AC (or 240 V AC adjustable by
Sony personnel), 50/60 Hz
UK Model;
(CDP-338ESD)
240 V AC (or 220 V AC adjustable by
Sony personnel), 50/60 Hz
US, Canadian Model:
(CDP-608ESD)
120 VAC, 60Hz
E Model:
(CDP-338ESD)
110,120, 220 or 240 V AC adjustable,
50/60 Hz
Power
consumption
27 W
Dimensions
(approx., including
projections)
470X125X375 mm
(w/h/d)
(185/eX5X 147/s
inches)
Weight (approx.)
12.5 kg (27 lbs 11 oz)
— continued on next page —
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE ^
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM¬
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
COMPACT DISC PLAYER
SONY
