Baxi Quinta Ace S 90 Product Information

Baxi Quinta Ace S 90 Product Information

High-efficiency wall-hung gas boiler
Hide thumbs Also See for Quinta Ace S 90:
Table of Contents

Advertisement

Quick Links

Download this manual
United Kingdom - Ireland
en
Product information
High-efficiency wall-hung gas boiler
Quinta Ace S
90 - 110 - 130 - 150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quinta Ace S 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Baxi Quinta Ace S 90

Summary of Contents for Baxi Quinta Ace S 90

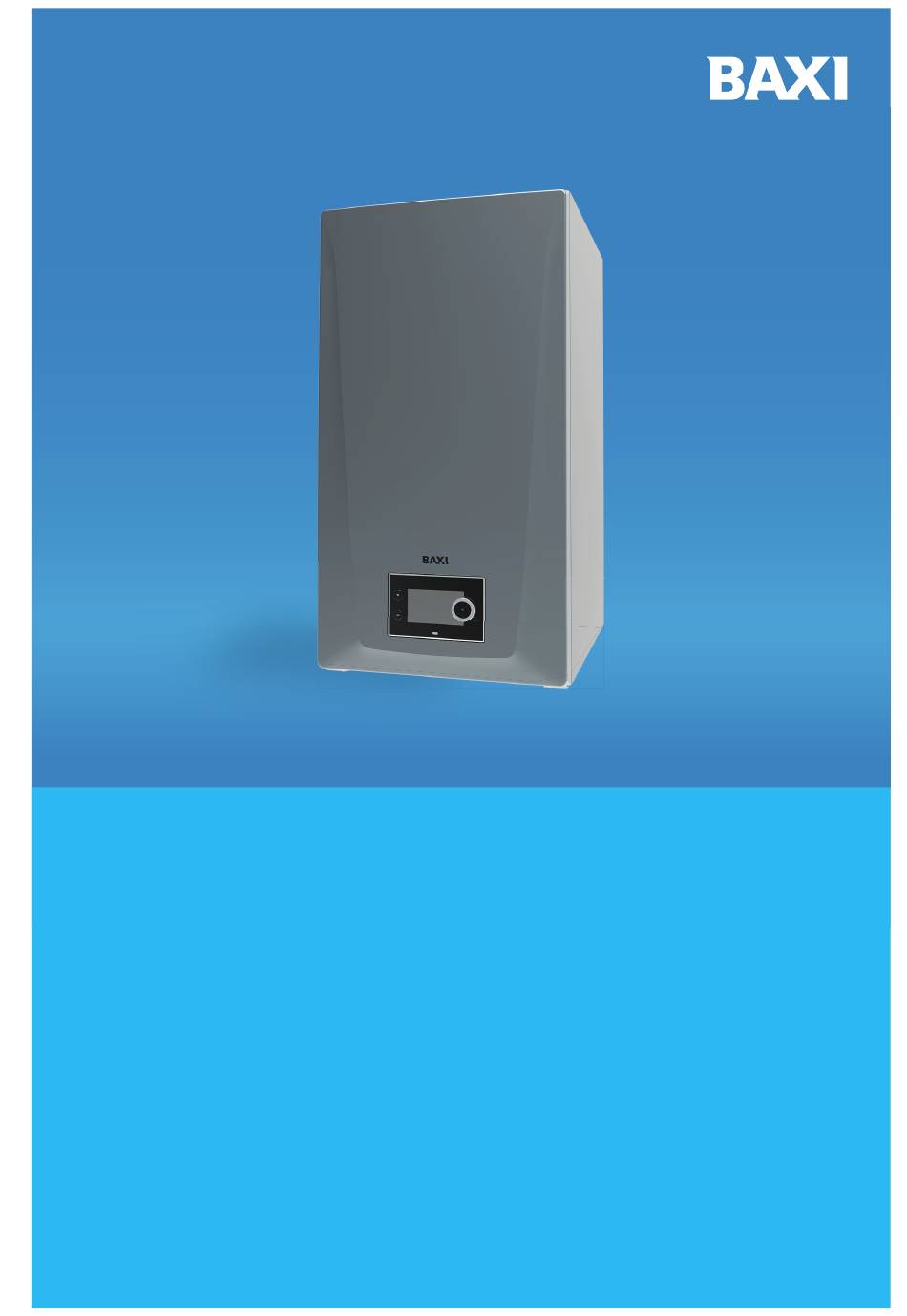

  • Page 1 United Kingdom - Ireland Product information High-efficiency wall-hung gas boiler Quinta Ace S 90 - 110 - 130 - 150...

  • Page 2: Dear Customer

    Dear Customer, Thank you very much for buying this appliance. Please read through the manual carefully before using the product, and keep it in a safe place for later reference. In order to ensure continued safe and efficient operation we recommend that the product is serviced regularly.

  • Page 3: Table Of Contents

    Contents Contents About this manual ................. . . 4 Additional documentation .

  • Page 4: About This Manual

    Ideal choice for cascade configurations. The following boiler types are available: Tab.1 Boiler types Name Rated heat output (Prated) Quinta Ace S 90 85 kW Quinta Ace S 110 102 kW Quinta Ace S 130 122 kW Quinta Ace S 150 140 kW 7877365 - v.01 - 13112024...

  • Page 5: Main Components

    2 Description of the product Main components Fig.1 General 1 Control panel 2 Pressure gauge 3 Quick connect 4 Data plate 5 Safety pressure relief valve outlet 6 Return pipe connection 7 Flow pipe connection 8 Gas pipe connection 9 Trap with condensate drain connection 10 Trap bottle AD-3003370-01 Fig.2...

  • Page 6: Introduction To The Bdr Controls Platform

    2 Description of the product Fig.3 Gas-air 1 Fan 2 Mixing tube 3 Venturi 4 Air inlet with silencer 5 Air pressure switch (only on boiler types: 130 - 150 ) 6 Burner 7 Gas pipe 8 Gas control valve AD-3003211-01 Fig.4 Sensors and boxes...
  • Page 7 2 Description of the product Fig.5 Generic example R-Bus L-Bus S-Bus AD-3001366-02 Tab.2 Components in the example Item Description Function Control Unit: Control unit The control unit handles all basic functionality of the appli­ ance. Connection Board: Connection PCB The connection PCB provides easy access to all connectors of the control unit.

  • Page 8: Standard Delivery

    3 Technical specifications Standard delivery Fig.6 Delivery The boiler is delivered in a packaging on a pallet. The delivery includes: Quinta Ace S boiler Literature pack (including a mounting template) Trap bottle Wall mounting set 1259 AD-3002727-02 Accessories and options Various accessories can be obtained for the boiler.

  • Page 9: Directives

    3 Technical specifications 3.1.3 Directives In addition to the legal requirements and guidelines, the supplementary guidelines in this manual must also be followed. Supplements or subsequent regulations and guidelines that are valid at the time of installation shall apply to all regulations and guidelines specified in this manual.
  • Page 10 3 Technical specifications Tab.6 Dimensions and connections Symbol Description Dimension Flow connection 1½" male thread Return connection 1½" male thread Gas connection 1" male thread Condensation outlet Ø 24 mm external Safety pressure relief valve outlet ¾" male thread Flue gas outlet Ø...

  • Page 11: Electrical Diagram

    3 Technical specifications Electrical diagram Fig.7 Electrical diagram for boiler types 90 - 110. 230 V PE-5 CU-GH20 X62-B X62-A X101-4 X101-3 X114 X104 X101-1 X101-2 X102 X115 X105 X111 BUS1 BUS2 BUS3 BUS4 XC01 PUMP PWM PUMP SUPPLY XQ01 Status LIN-Bus 0-10...
  • Page 12 3 Technical specifications Fig.8 Electrical diagram for boiler types 130 - 150. 230 V PE-5 CU-GH20 X101-4 X101-3 X114 X106 X101-1 X101-2 X102 X115 X104 X105 X111 BUS1 BUS2 BUS3 BUS4 XC01 PUMP PWM PUMP SUPPLY XQ01 Status LIN-Bus 0-10 CB-25 Tout R-Bus Tsyst...

  • Page 13: Technical Data

    3 Technical specifications Technical data Tab.7 General Quinta Ace S Nominal output 80/60 °C 11.4 28.4 28.1 85.0 102.0 121.5 140.3 Nominal output 50/30 °C 10.2 12.3 30.6 30.2 91.8 110.2 130.6 150.9 Nominal input 11.7 29.0 28.6 87.4 104.9 123.8 143.0 Nominal input...
  • Page 14 3 Technical specifications Quinta Ace S Hydraulic resistance ΔT=20 K mbar Water flow ΔT=11 K 6.65 7.97 9.50 10.97 Water flow at maximum CH input 80/60 °C 3.66 4.39 5.22 6.03 Water flow at minimum CH input 80/60 °C 0.40 0.49 1.04 1.21...

  • Page 15: Hydraulic Resistance

    AP101 = 1). Fig.9 Hydraulic resistance AD-3003168-01 Q Water flow (m 2 Quinta Ace S 110 3 Quinta Ace S 130 H Hydraulic resistance (mbar) 4 Quinta Ace S 150 1 Quinta Ace S 90 7877365 - v.01 - 13112024...

  • Page 16: Before Installation

    4 Before installation Tab.13 Water flow rate data Unit Minimum flow rate 2.25 2.25 3.15 Maximum flow rate H at ΔT = 15 °C mbar Q at ΔT = 15 °C H at ΔT = 20 °C mbar Q at ΔT = 20 °C H at ΔT = 30 °C mbar Q at ΔT = 30 °C...

  • Page 17: Requirements For The Condensate Drain

    4 Before installation Fig.10 Location requirements AD-3003137-02 A ≥ 30 mm F ≥ 500 mm B 500 mm G 631 mm C ≥ 30 mm H ≥ 1000 mm D ≥ 430 mm I ≥ 240 mm E 924 mm Requirements for the condensate drain The drain pipe must be Ø...

  • Page 18: Requirements For The Flue Gas Discharge System

    4 Before installation Requirements for the flue gas discharge system 4.6.1 Classification Important The installer is responsible for choosing the correct type, diameter, and length of the flue system. Always use connection materials, roof terminal and/or horizontal flue terminal supplied by the same manufacturer. Consult the manufacturer for compatibility details.
  • Page 19 4 Before installation Tab.17 Type of flue system: C Principle Description Recommended manufactur­ Combined air inlet and flue system (common shared flue sys­ Connecting material to the tem) with overpressure. common shared flue system: Concentric (preferably). Centrotherm Parallel (if concentric is not possible). Cox Geelen Muelink &...
  • Page 20 4 Before installation Tab.20 Type of flue system: C Principle Description Recommended manufactur­ Individual air inlet and shared flue system (common shared flue Connecting material to the system). common shared flue system: Place a condensation drain, equipped with a trap, at the bot­ Centrotherm tom of the duct.

  • Page 21: Material

    4 Before installation 4.6.2 Material Use the string on the flue gas outlet material to check whether it is suitable for use on this appliance. Fig.12 Sample string 1 EN 14471 or EN 1856–1: The material is UKCA and CE approved according to this standard.

  • Page 22: Length Of The Flue And Air Supply Pipes

    Length from the air inlet connection and flue gas connection up to the terminal. Calculation: L = L Tab.25 Maximum length (L) Diameter 110/160 mm Quinta Ace S 90 12 m Quinta Ace S 110 13 m AD-3002011-01 Quinta Ace S 130 Quinta Ace S 150 (1) While maintaining the maximum length, additional 5 times 90°...

  • Page 23: Reduction Table

    Length from the flue gas connection up to the terminal. Calculation: L = L Tab.27 Maximum length (L) Diameter 110 mm Quinta Ace S 90 38 m Quinta Ace S 110 32 m Quinta Ace S 130 21 m AD-3002009-01...

  • Page 24: Additional Guidelines

    4 Before installation Tab.30 Pipe reduction for each bend - radius ½D (concentric) Diameter 110/160 mm 1.2 m R=½D 45° 2.5 m R=½D 90° 4.6.5 Additional guidelines Installation Warning If the flue gas outlet and air supply materials are not installed in accordance with the instructions, this can result in dangerous situations and/or physical injury.

  • Page 25: Water Quality And Water Treatment

    You can go to the website for the instruction. Appendix ErP information 5.1.1 Product fiche Tab.32 Product fiche BAXI – Quinta Ace S Seasonal space heating energy efficiency class (Prated) Rated heat output Annual energy consumption(Q Seasonal space heating energy efficiency (η Sound power level L...

  • Page 26: Package Sheet

    5 Appendix 5.1.2 Package sheet Fig.20 Package sheet for boilers indicating the space heating energy efficiency of the package Seasonal space heating energy effi ciency of boiler ‘I’ Temperature control Class I = 1%, Class II = 2%, Class III = 1.5%, Class IV = 2%, Class V = 3%, Class VI = 4%, from fi...

  • Page 27: Ec Declaration Of Conformity

    5 Appendix The value of the seasonal space heating energy efficiency of the preferential space heater, expressed in %. The factor for weighting the heat output of preferential and supplementary heaters of a package as set out in the following table.
  • Page 28 5 Appendix 7877365 - v.01 - 13112024...
  • Page 29 5 Appendix 7877365 - v.01 - 13112024...
  • Page 30 5 Appendix 7877365 - v.01 - 13112024...
  • Page 31 Original instructions - © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. Subject to alterations.
  • Page 32 0345 070 1055 www.baxi.co.uk Brooks House Coventry Road Warwick CV34 4LL 01 459 0870 www.baxi.ie Unit F 5&6, Calmount Park, Calmount Road, Ballymount, Dublin 12 7877365 - v.01 - 13112024 7877365...
