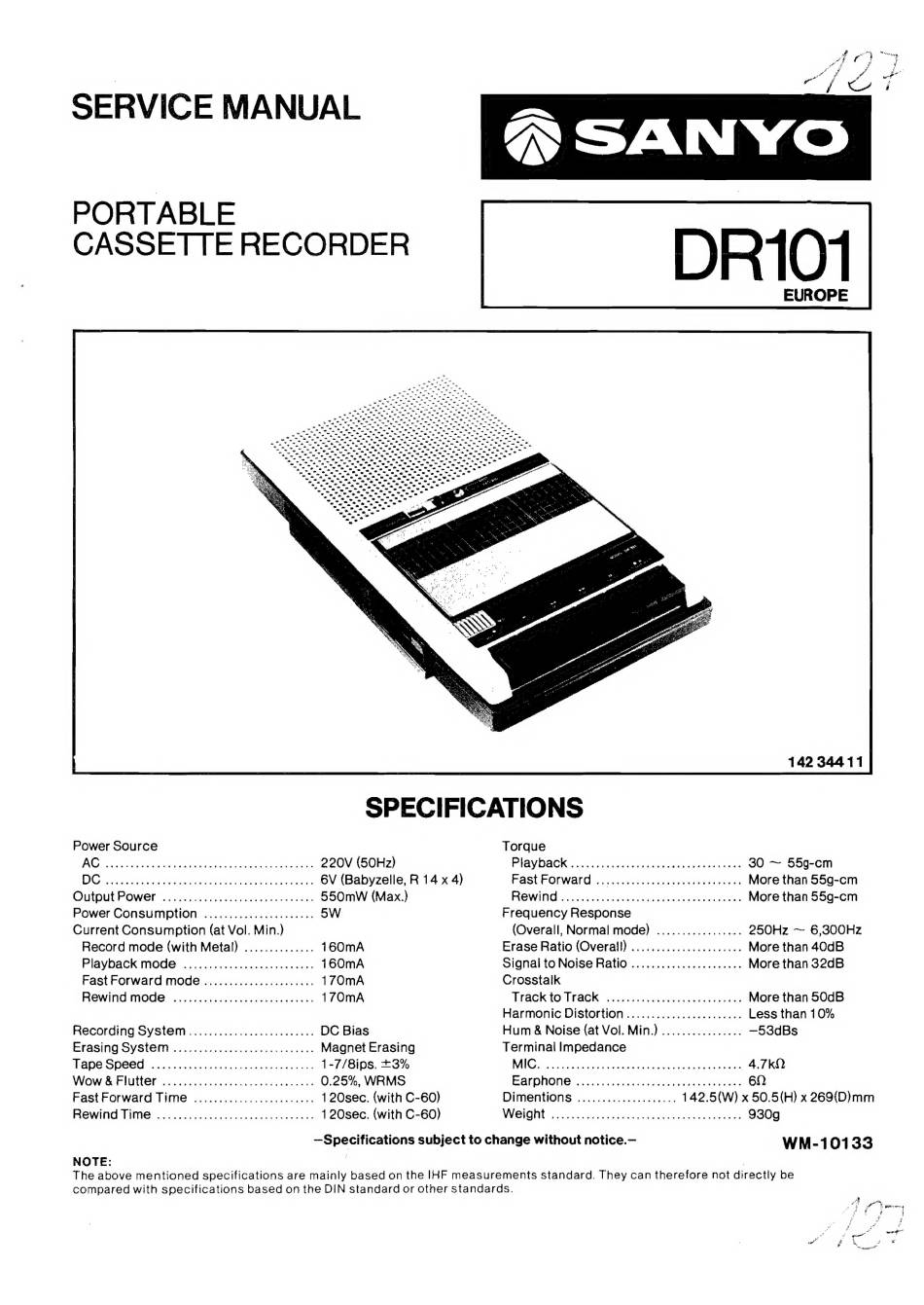

Sanyo DR101 Service Manual

SERVICE MANUAL
PORTABLE
CASSETTE RECORDER
EUROPE
142 34411 |
SPECIFICATIONS
Power Source Torque
|: | Cee Eee nae Re er ere 220V (50Hz) PlAYDACK s.025:4sc5nds5 casedeiiieinanenes 30 ~ 55g-cm
rciesdon tn tate See eoe ate aun ee dai ie 6V (Babyzelle, R 14 x 4) Past FOrWal Gh: i622 isc oink etvaderauietccs More than 55g-cm
OUTPUT POWER 2ccstccicrceisdeneecaiuadiats 550mW (Max.) FREWING 223i. b oreo tes eee eieeneneeucns More than 55g-cm
Power Consumption ...................085 5W Frequency Response
Current Consumption (at Vol. Min.) (Overall, Normal mode) ............... .. 250Hz ~ 6,300Hz
Record mode (with Metal) .............. 160mA Erase Ratio (Overall) ...................05. More than 40dB
Playback Mode ............c.c cece eee ee 160mA Signal to Noise Ratio ...................... More than 32dB
Fast Forward mode ...................08. 170mA Crosstalk
Rewind mode ...........c.ccccc seen eee ees 170mA TAGKHO: TraGK: scccn ei itecvtetvisasaies More than 50dB
Harmonic Distortion....................00- Less than 10%
Recording System......................00- DC Bias Hum & Noise (at Vol. Min.) ................ —53dBs
Erasing System .......... ccc eee ees Magnet Erasing Terminal Impedance
Tape SiG 6s pcckidesceeecddiceslssueesneiws 1-7/8ips. +3% WG oe cts tes hax tanteuaoerdoaeatatanee 4.7kQ
WOW S. FIUMer sce sida eae ealawds See 0.25%, WRMS al PNONe vi. actics eeeetuasteseseuteuees 62
Fast Forward Time .....................05. 1 20sec. (with C-60) Dimentions ................0... 142.5(W) x 50.5(H) x 269(D)mm
Rewind Time ....... 0.0... cece cece cee cee ees 1 20sec. (with C-60) WCIGINE Seuss caccstenie des shox ado edec eee 930g
—Specifications subject to change without notice.— WM-10133
NOTE: |
The above mentioned specifications are mainly based on the IHF measurements standard. They can therefore not directly be
compared with specifications based on the DIN standard or other standards.
