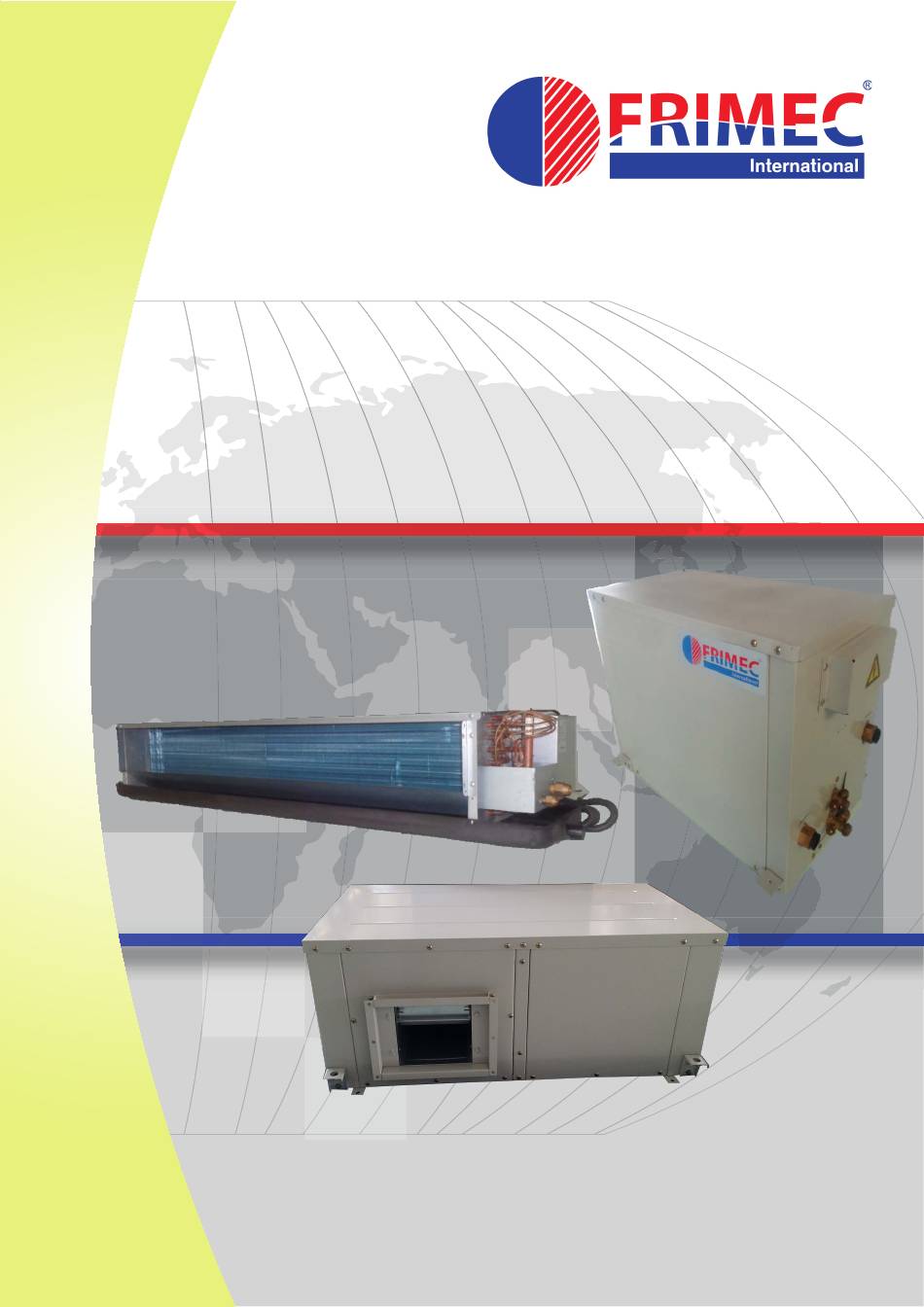

- Page 1 WATER-COOLED DUCTED (CEILING HUNG) Models: FWSN/FWSD 010-050 FWLP 010-100 Direct Expansion System / 21 W01-20...
-
Page 2: Table Of Contents
Dimensions..................22 Wiring Diagram................28 Installation................. 38 Service and Maintenance.............. 45 Troubleshooting................46 © 2020 FRIMEC – INTERNATIONAL. All rights reserved DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn... -
Page 3: Product Nomenclature
Product Nomenclature Water-Cooled Split Ducted Indoor Unit FWSN 220~240V/1Ph/50Hz R410A Cooling Only Unit Size FWSN Water-Cooled Split Ducted Indoor Unit Water-Cooled Split Ducted Outdoor Unit FWSD 220~240V/1Ph/50Hz 380~415V/3Ph/50Hz R410A Cooling Only Unit Size FWSD Water-Cooled Split Ducted Outdoor Unit DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. - Page 4 Water-Cooled Packaged Unit FWLP 220~240V/1Ph/50Hz 380~415V/3Ph/50Hz R410A Cooling Only Unit Size FWLP Water-Cooled Packaged Unit DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn...
-
Page 5: Features
Water-Cooled ducted unit uses water as the cooling medium Energy Saving which has higher efficiency than air. Simultaneous cooling and High can be achieved through water loop system, providing Efficiency comfort and cost saving all year round. Energy can be transferred easily in the system providing excellent solution to diversity effect. -
Page 6: Cooling Cycle
Water-Cooled Ducted Unit Working Principles Outdoor Unit Indoor Unit Cooling Operation Refrigerant Pipe Cooling cycle High pressure refrigerant is discharged from compressor to tube-in-tube heat exchanger. Functioning as a condenser, the tube-in-tube heat exchanger cools down the refrigerant through cool water supplied from cooling tower. Water temperature will rise about 5~6°C. -
Page 7: Engineering Specifications
Engineering Specification General Data - Water-Cooled Split Ducted Unit Indoor Unit FWSN Model Outdoor Unit FWSD 2.90 4.20 5.60 6.40 7.60 8.60 11.80 14.00 Cooling Capacity Btu/h 9,900 14,400 19,100 22,000 26,000 29,300 40,200 48,000 High Speed 1150 1350 1750 1900 2550 Air Volume... - Page 8 General Data - Water Cooled Package Unit Model FWLP Cooling Capacity 2.63 4.07 6.20 7.32 8.40 Power Input 0.68 0.93 1.61 2.00 2.12 Current 3.19 4.60 7.50 9.10 9.80 m 3 /h Air Volume 1080 1250 1650 External Static Pressure Length 1192 1192...
-
Page 9: Operating Range
Operating Range Cooling Standard Indoor Temperature (°C WB) DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn... -
Page 10: System Schematic Diagram
System Schematic Diagram Model : FWSN/FWSD 10 / 15 / 18 / 20 /25 / 30 / 40 / 50 Indoor Unit Outdoor Unit Fin-Tube Tube in Heat Tube Heat Exchanger Exchanger DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. - Page 11 System Schematic Diagram Model : FWLP 10 / 15 / 20 / 25 / 30 / 40 / 50 / 70 Tube-Tube Fin-Tube Heat Heat Exchanger Exchanger Model : FWLP 100 THROTTLE VALVE Tube-Tube Heat Exchanger Fin-Tube Heat Exchanger THROTTLE VALVE DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC.
-
Page 12: Mode Of Operation
Wired LCD Controller Features a) Single Circuit 1. On/Off 1.1. Press《 》button to on/off the unit 2. Mode of Operation 2.1. Press《 》 button to change the mode of operation 2.2. Toggle through cool→ fan → dry →heat → auto 2.3. - Page 13 4. Temperature Setting 4.1. Press once will flash the current set temperature 《 》 《 》 Press again 《 》 《 》 button to adjust the temperature 4.2. setting (16°C – 30°C) 5. Sleep Mode 5.1. In cool, heat or auto mode press《 》button to enable or disable sleep function 5.2.
- Page 14 9. Parameters Check 》 and《 》button for 3s to browse the 9.1. During key lock, hold《 following temperature Temperature area Error code area Return air temperature Indoor coil temperature Outdoor coil/Leaving water temperature Outdoor ambient/Entering water temperature 》button to select temperature to read 9.2.
- Page 15 12. System control parameter 》 button for 3s to enter following 12.1. During key lock, hold《 》and《 menu. Temperature Error Code Area Remarks Area : 10°C ~ 30°C Defrost terminate temperature Default :18°C : 5 ~ 20 min Defrost termination time Default :10 min : 0°C ~ 20°C Cool mode water protection temp...
- Page 16 13. Error codes Fault Error code Insufficient refrigerant Return air temperature sensor error Indoor coil temperature sensor error Outdoor coil temperature sensor error Compressor overload Condensing water temperature protection Low pressure protection High pressure protection Outdoor ambient air/Entering water temperature sensor error Flow switch error Entering and leaving water temperature difference protection Indoor coil anti freeze protection...
- Page 17 b) Double Circuit (FWLP100 only) Clock Display Section Room Temperature Display Section Sleep Mode Timer Display Section Operation Mode Display Section Error Code: Digit #1: 1 Digit #2&3: Error Code (Refer to Error Code) DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC.
- Page 18 1. On/Off Press《 》button; unit will start function Press again《 》button; unit will stop function 2. Mode Press 《M》 button to change the mode of operation Toggle through Cool → Fan → Dry→Hot Water (Not Applicable) 3. Blower Speed Press《 》button to change the blower speed Toggle through Auto →...
- Page 19 8. Real Time Clock Press《 》button for 3sec to enter this submenu Press《M》button to change the day of week: SUN-MON-TUE-WED-THU-FRI-SAT Press 《+》 or 《-》 button to change the clock： 00:00—00:01……—23:58-- 23:59 Press《√》button for 1sec to save the setting Press《X》button for 3sec to exit without saves the setting 9.
- Page 20 10.2 Press 《 》 or 《 》 button to shows compressor no.1 or 2 statuses in clock display section 10.3 1(2):0n(0F) means compressor 1(2) is ON (OFF) 10.4 Press 《X》 button for 3sec to exit. 11. Parameters Check 11.1 Press 《 》...
- Page 21 12. Error/Protect Code Display 12.1 Symbol《 》will light up and display error code when there is any system failure 12.2 When multiple errors occur, all error codes will be displayed one after another 12.3 Press《X》button to clear the error 12.4 Error Code: No.
-
Page 22: Dimensions
Dimensions Model : FWSN 10 / 15 Model FWSN 10 / 15 Model : FWSN 18 / 20 Model FWSN 18 / 20 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn... - Page 23 Model : FWSN 25 Dimensions in mm Model FWSN 25 1435 1225 1185 1227 Model : FWSN 30 / 40 / 50 Model FWSN 30 1435 1225 1185 1227 FWSN 40 1635 1420 1380 1422 FWSN 50 1635 1420 1380 1490 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357...
- Page 24 Model : FWSD 10 / 15 / 18 / 20 / 25 / 30 Model FWSD10 FWSD15 FWSD18/20 FWSD25/30 Model : FWSD 40 / 50 Model FWSD40 FWSD50 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn...
- Page 25 Model : FWLP 10 / 15 WATER INLET WATER OUTLET DN20 DRAIN PIPE Model FWLP 10 FWLP 15 Model : FWLP 20 WATER INLET WATER OUTLET DN20 DRAIN PIPE 1120 1192 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn...
- Page 26 Model : FWLP 25 / 30 WATER INLET WATER OUTLET DN20 DRAIN PIPE 1120 1192 Model FWLP 25 FWLP 30 Model : FWLP 40 / 50 WATER INLET WATER OUTLET DN25 DRAIN PIPE Model FWLP 40 FWLP 50 1333 1365 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC.
- Page 27 Model : FWLP 70 WATER OUTLET WATER INLET DN25 DRAIN PIPE 1578 1678 Model : FWLP 100 WATER OUTLET WATER INLET 1031 DN25 DRAIN PIPE 2168 2268 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn...
-
Page 28: Wiring Diagram
Wiring Diagram Model : FWSN/FWSD 10 / 15 Indoor Section OUTDOOR LEAVING WATER TEMP. SENSOR CN7 CN7-1 AI4 AI3 AI2 AI1 COM1 COMMON LIVE DO1A DO1B DO2 DO3 DO4 N COMP NEUTRAL COMP L SUPPLY: 220-240V / 1N-PE / 50Hz MOTOR COMP N LEGEND... - Page 29 Model : FWSN/FWSD 18 / 20 Indoor Section OUTDOOR LEAVING WATER TEMP. SENSOR CN7-1 COM1 COMMON LIVE DO1A DO1B DO2 DO3 DO4 COMP NEUTRAL COMP SUPPLY: 220-240V / 1N-PE / 50Hz MOTOR COMP LEGEND CM - COMPRESSOR Outdoor Section FL - FLOW SWITCH HP - HIGH PRESSURE SWITCH LP - LOW PRESSURE SWITCH C1-C2 - CONNECTOR...
- Page 30 Model : FWSN/FWSD 25 / 30 Indoor Section OUTDOOR LEAVING WATER TEMP. SENSOR CN7-1 COM1 COMMON LIVE DO1A DO1B DO3 DO4 COMP NEUTRAL COMP MOTOR MOTOR SUPPLY: 220-240V / 1N-PE / 50Hz COMP LEGEND CM - COMPRESSOR Outdoor Section KM - AC CONTACTOR FL - FLOW SWITCH HP - HIGH PRESSURE SWITCH LP - LOW...
- Page 31 Model : FWSN/FWSD 40 / 50 Indoor Section OUTDOOR LEAVING WATER TEMP. SENSOR CN7-1 COM1 COMMON LIVE DO1A DO1B DO2 DO3 DO4 COMP NEUTRAL COMP MOTOR MOTOR SUPPLY: 380-415V / 3N-PE / 50Hz COMP LEGEND CM - COMPRESSOR KM - AC CONTACTOR FR - THERMAL RELAY Outdoor Section RVR - PHASE PROTECTOR...
- Page 32 Model : FWLP 10 / 15 NEUTRAL CN7-1 LEGEND CM - COMPRESSOR FM - FAN MOTOR FL - FLOW SWITCH OLP - OVERLOAD PROTECTOR HP - HIGH PRESSURE SWITCH LP - LOW PRESSURE SWITCH C1-C2 - CONNECTOR Note: ------ Field Installation DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC.
- Page 33 Model : FWLP 20 NORMAL CN7-1 LEGEND CM - COMPRESSOR FM - FAN MOTOR FL - FLOW SWITCH HP - HIGH PRESSURE SWITCH LP - LOW PRESSURE SWITCH C1-C2 - CONNECTOR Note: ------ Field Installation DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC.
- Page 34 Model : FWLP 25 / 30 KM-PUMP LIVE BLUE BLACK NEUTRAL LEGEND CM - COMPRESSOR FM - FAN MOTOR FL - FLOW SWITCH KM - CONTACTOR HP - HIGH PRESSURE SWITCH LP - LOW PRESSURE SWITCH C1-C2 - CONNECTOR Note: ------ Field Installation DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC.
- Page 35 Model : FWLP 40 / 50 KM-PUMP LIVE BLUE BLACK NEUTRAL DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn...
- Page 36 Model : FWLP 70 KM-PUMP NEUTRAL DO4 DO3 DO2 COMP DO1B DO1A LIVE 1 2 3 4 5 6 7 COMMON AI3 AI4 CN7-1 CN7 LEGEND CM - COMPRESSOR FM - FAN MOTOR FR - THERMAL RELAY RVR - PHASE PROTECTOR FL - FLOW SWITCH HP - HIGH PRESSURE SWITCH LP - LOW PRESSURE SWITCH...
- Page 37 Model : FWLP 100 DISTRIBUTOR IN VIETNAM: Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC. Email: info@bkic.vn www.bkic.vn...
-
Page 38: Installation
Installation Unit Location Unit should be installed by qualified technicians. Installation should adhere to local codes and regulations. Indoor Unit Installation Carefully plan the installation location with the following considerations: ● Easy distribution of air ducts. ● Space for connection of refrigerant pipes, wirings and water pipes. ●... -
Page 39: Outdoor Unit Installation
For the installation of returned and supply air ducts please refer to the section on Installation of Air System. ● Design the maintenance door according to the following drawing: Maintenance door Recommended Position Incorrect Position ● To reduce noise transmission through hanging rod, it is recommended to install rubber damper or isolator. - Page 40 Obstacle Obstacle Valve Flexible Pipe Vibration Isolator ● If the outdoor unit needs to be hung under ceiling, there are 2 methods of installation as shown in the following diagrams. Make sure the hanger provided is strong enough to support the whole weight of the unit (including the water inside the tube when in operation).
-
Page 41: Refrigerant Charge
Vacuuming and Refrigerant Charging The packaged or outdoor unit for Water Source Heat Pump are fully charged with refrigerant in the factory. For split type water source heat pump, after the copper pipes are connected and before opening the valves, the indoor pipes need to be vacuumed. It is important that the indoor unit is properly vacuumed to make sure the system is free of dust and moisture. -
Page 42: Electrical Installation
Electrical Installation All wiring must comply with the local electrical regulations and law. The fluctuation of voltage should be within ±10%. Cautions: ● Before connecting the wires, ensure the power supply is according to the requirement. ● Every air-conditioning unit requires independent electricity supply equipped with circuit breakers. - Page 43 Water Tank Water Supply Valve Cooling Tower Filter Boiler Water pump Soft Connector Flow switch Air discharge Valve Gas Separator Water Supply Valve Thermometer Filter Bypass Valve Spray pump Drain valve Filter Bypass Valve Bypass Valve Bypass Valve Bypass Valve Flow switch Valve Check Valve...
-
Page 44: Air Ducting Installation
Air Ducting Installation 7.1. Installation of Indoor Unit Air Ducting ● There are two types of discharge air-duct, namely rectangular and round ducts. ● Rectangular ducts can be connected to the discharge of the indoor unit directly, refer to the external diagram of the unit to see the dimensions of the discharge. -
Page 45: Service And Maintenance
Servicing and Maintenance Test Run and Operation Firstly, the whole water system must be cleaned and tested for leakage. Shut off all the valves except the air discharge valve while cleaning. After cleaning, open the water discharge valve to discharge the dirty water. Repeat this for 2-3 times till the water is cleaned. -
Page 46: Troubleshooting
Troubleshooting Troubleshooting Guide Pressure Cause Status Over Over high Circuit High pressure side ● Overcharge of refrigerant. The refrigerant pipe is not vacuum. ● Low Pressure Side Water temperature is too high. Low water flow (Cooling). The filter is blocked or too dirty. High pressure side Incomplete compression or no ●... - Page 47 A member of FRIMEC International Group ©2020 FRIMEC International www.frimec-international.com...
