FRIMEC FASN080 Manual

Air-cooled split ducted (r22/r407c series)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AIR-COOLED SPLIT DUCTED
(R22/R407C SERIES)
Models:FASN080-600
Direct Expansion
System
FDXA05-2020/21D
FASD080-150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FASN080 and is the answer not in the manual?

Questions and answers

Related Manuals for FRIMEC FASN080

Summary of Contents for FRIMEC FASN080

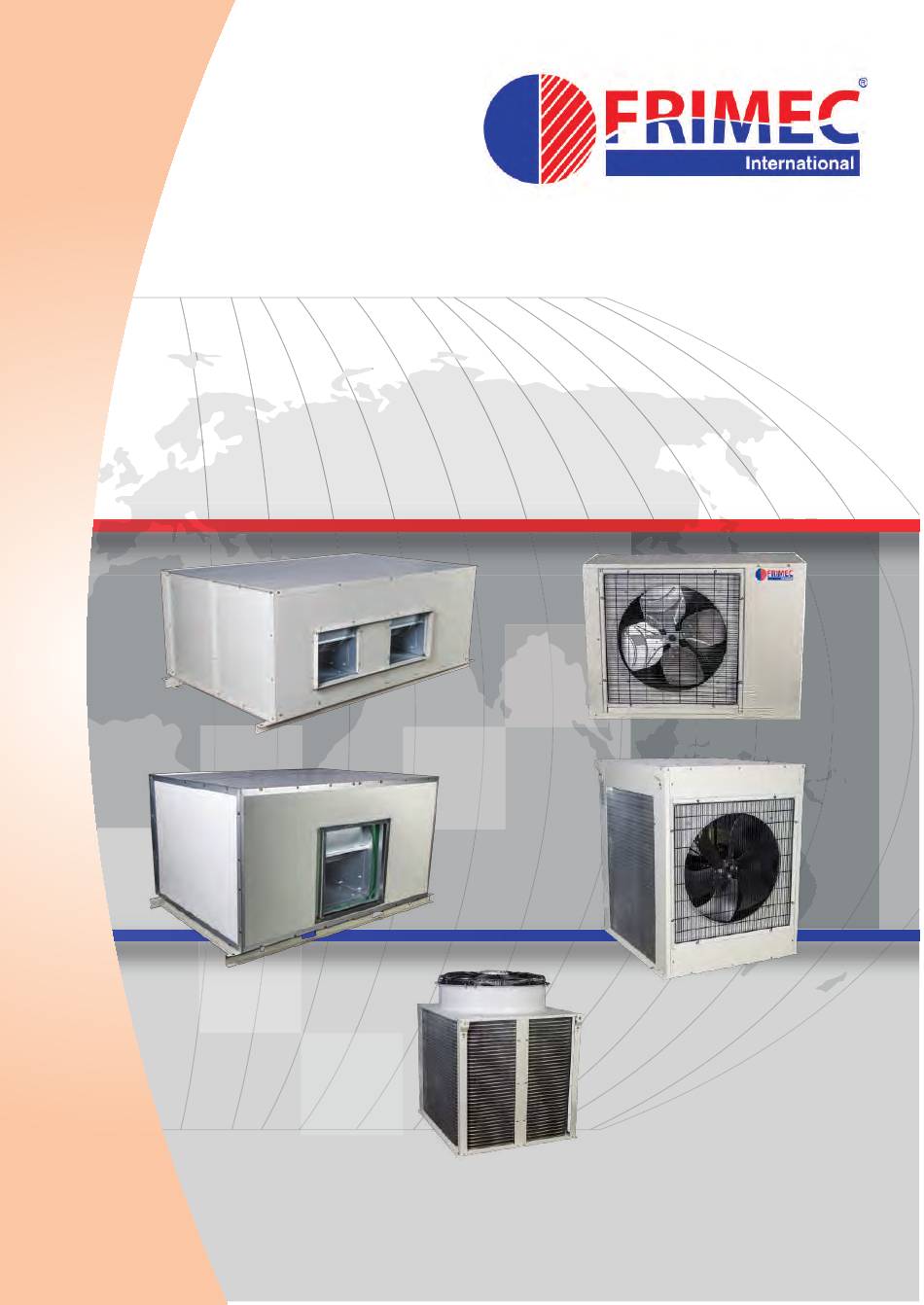

  • Page 1 AIR-COOLED SPLIT DUCTED (R22/R407C SERIES) Models:FASN080-600 FASD080-150 Direct Expansion System FDXA05-2020/21D...

  • Page 2: Table Of Contents

    Contents Product Nomenclature ............... 2 Features..................3 Engineering Specifications ..............4 General Data................4 Electrical Data................. 8 Operating Range..............10 System Schematic Diagram............11 Controller Features and Algorithm ..........15 Fan Performance Curve ............26 Dimensions..................34 Wiring Diagrams................40 Installations..................

  • Page 3: Product Nomenclature

    Product Nomenclature Air-Cooled Ducted Indoor Unit FASN 220~240V/1Ph/50Hz 380~415V/3Ph/50Hz R407C Cooling only Unit Size FASN Air-cooled Ducted Indoor Unit Air-Cooled Ducted Outdoor Unit FASD 100 220~240V/1Ph/50Hz 380~415V/3Ph/50Hz R407C Cooling only Unit Size FASD Air-cooled Ducted Outdoor Unit DISTRIBUTOR IN VIETNAM: Page 2 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC...

  • Page 4: Features

    Features Wide Range of Comprises various models with wide cooling capacity to Product cater for various needs in residential, commercial and industrial application. Part load capability offers continuous comfort, greater Multi Circuit Design savings and provides highly flexible solutions physical constraints at site. It also prolongs lifespan of compressors and reduces big electrical surges.

  • Page 5: Engineering Specifications

    Engineering Specifications General Data - Air-Cooled Split Ducted R22 Indoor FASN Unit Model Outdoor FASD 100x2 125x2 150x2 Unit 23.4 29.3 36.6 44.0 58.6 73.3 87.9 Total Cooling Capacity Btu/h 80,000 100,000 125,000 150,000 200,000 250,000 300,000 Type Single Skin Double Skin Width 1,450...
  • Page 6 General Data - Air-Cooled Split Ducted R22 Indoor FASN Unit Model Outdoor FASD 125x2 100x4 150x3 125x4 150x4 Unit 102.6 117.2 131.9 146.5 175.8 Total Cooling Capacity Btu/h 350,000 400,000 450,000 500,000 600,000 Type Double Skin Width 2,061 2,432 2,787 2,782 2,782 Dimension...
  • Page 7 General Data - Air-Cooled Split Ducted R407C Indoor FASN Unit Model Outdoor FASD 100x2 125x2 150x2 Unit 22.7 28.4 35.5 42.7 56.8 71.1 85.3 Total Cooling Capacity Btu/h 77,600 97,000 120,150 145,500 194,000 242,500 291,000 Type Single Skin Double Skin Width 1,450 1,750...
  • Page 8 General Data - Air-Cooled Split Ducted R407C Indoor FASN Unit Model Outdoor FASD 125x2 100x4 150x3 125x4 150x4 Unit 99.5 113.7 127.9 142.1 170.6 Total Cooling Capacity Btu/h 339,500 388,000 463,500 485,000 582,000 Type Double Skin Width 2,061 2,432 2,787 2,782 2,782 Dimension...

  • Page 9: Electrical Data

    Electrical Data - Air Cooled Split Ducted R22 FASN/ FASN/ FASN/ FASN/ FASN/ VOLT ITEM FASD080 FASD100 FASD125 FASD150 FASD200 TOTAL POWER INPUT 7.76 9.89 11.90 15.52 21.73 TOTAL RUN CURRENT 16.10 21.19 22.32 29.74 38.98 POWER FACTOR COMPRESSOR POWER INPUT 6.40 8.64 9.70...
  • Page 10 Electrical Data - Air Cooled Split Ducted R407C FASN/ FASN/ FASN/ FASN/ FASN/ VOLT ITEM FASD080 FASD100 FASD125 FASD150 FASD200 TOTAL POWER INPUT 7.93 9.75 11.91 15.52 21.45 TOTAL RUN CURRENT 16.46 21.19 22.34 30.64 38.98 POWER FACTOR 67.03 64.01 74.17 70.47 76.56...

  • Page 11: Operating Range

    Operating Range Cooling Indoor Temperature (°CWB) DISTRIBUTOR IN VIETNAM: Page 10 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...

  • Page 12: System Schematic Diagram

    System Schematic Diagram Model: FASN080/100/125/150 Drier Filter Isolation Valve Indoor Outdoor High Pressure Switch Low Pressure Switch Isolation Valve Note: Contractor is suggested to install Isolation Valve(s) and Drier Filter(s) DISTRIBUTOR IN VIETNAM: Page 11 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn...
  • Page 13 System Schematic Diagram Model: FASN200/250/300 Drier Filter Isolation Valve Indoor Outdoor 1 Outdoor 2 High Pressure High Pressure Switch Switch Low Pressure Low Pressure Switch Switch Isolation Valve Note: Contractor is suggested to install Isolation Valve(s) and Drier Filter(s) DISTRIBUTOR IN VIETNAM: Page 12 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC...
  • Page 14 System Schematic Diagram Model: FASN350/450 Outdoor Heat Exchanger Compressor Compressor Outdoor Heat Exchanger Outdoor Heat Exchanger Compressor Indoor Heat Exchanger Indoor Note: Contractor is suggested to install Isolation Valve(s) and Drier Filter(s) DISTRIBUTOR IN VIETNAM: Page 13 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 15 System Schematic Diagram Model: FASN400/500/600 Compressor Outdoor Heat Exchanger Outdoor Heat Exchanger Compressor Compressor Outdoor Heat Exchanger Outdoor Heat Exchanger Compressor Indoor Heat Exchanger Indoor Note: Contractor is suggested to install Isolation Valve(s) and Drier Filter(s) DISTRIBUTOR IN VIETNAM: Page 14 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn...

  • Page 16: Controller Features And Algorithm

    Controller Features and Algorithm (Optional) Single stage operation instruction for FASN 80~150 Use of buttons on LED wall pad controller Operation Instruction Press to start or stop the air conditioner. ON/OFF Temperature Setting • Press to decrease or increase the set temperature. When any of these buttons are pressed, temperature display area will flash with the old temperature setting for 4 seconds.
  • Page 17 3. Mode setting • Press button to change the operation mode as follow: MODE Cool heat auto cool/heat Heat LED flashes during outdoor defrost cycle. button is invalid during • MODE this cycle. 4. Fan speed setting • Press button to change the fan speed: Auto High Medium...
  • Page 18 7. Key Lock • In order to prevent unauthorized access to the system settings, a key lock function is provided to prevent mischief. When the system is on, hold down buttons for 3 seconds to activate the key lock function, key MODE lock symbol will light up.
  • Page 19 9. Error code display • Should there be any fault with the main board, the relevant error code will be shown on the temperature display area. If multiple faults happen at the same time, the error code will be shown one after another. System will alternate the display of error code and room temperature.
  • Page 20 Controller Features and Algorithm (Optional) Multi-stage operation instruction for FASN 200~600 Wall pad Button/key Description (Details refer to operation guide): DAY: Set day of week TIME+/-: Adjust clock CLOCK: Set clock CANCEL: Cancel timer TIMER: Set on/off timer MODE: Set operation mode SET: Set parameter DISPLAY: Browse temperature SELECT+/-: Menu selection...
  • Page 21 LCD Display Description: A. Return air or set temperature display section. This section has no indication if system in standby mode and backlight is off. B. Wall pad key lock symbol. Symbol appears if wall pad keypad is locked and vice versa.
  • Page 22 Wall pad guide: 1. On/Off control Press button to control system on/off. If the unit is off, press will • turn on the system with two beeping sounds. If the unit is on, press to turn off the unit with one beeping sound. 2.
  • Page 23 If clock display section shows --: --, it means the current timer is null. Pressing <TIME+/-> button will activate this timer. If time is being displayed, it means the current timer is activated. Press <TIME+/-> button to adjust the timer setting. Pressing <CANCEL> button will cancel this setting and the display will be shown as --: --.
  • Page 24 8. Key Lock • System is equipped with key lock function to prevent mischief. Press button for 5 seconds to activate key lock mode. Key lock symbol will light up, likewise to exit key lock mode. Only button will be valid in key lock mode.
  • Page 25 11. Error Display • Should an error occur, backlight will turn red color. Error display section shows the corresponding error codes as follow: For unit FASN/SD200~600 Error Code Description Remarks Indoor fan failure Display error, stop system (power off to reset) protection.
  • Page 26 Error Code Description Remarks Indoor coil 2 anti-freezing Display error, stop the unit. (auto reset) Circuit 2 no cooling Display error, stop the unit. (power off to reset) Outdoor unit 3 power protection, Display error. Stop the outdoor unit, outdoor fan protection, external manual reset required, should the failure interlock, compressor 3 high/low occur 5 times consecutively, pressing...

  • Page 27: Fan Performance Curve

    Fan Performance Curve FASN080 FASN100 DISTRIBUTOR IN VIETNAM: Page 26 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 28 FASN125 FASN150 DISTRIBUTOR IN VIETNAM: Page 27 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 29 FASN200 FASN250 DISTRIBUTOR IN VIETNAM: Page 28 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 30 FASN300 FASN350 DISTRIBUTOR IN VIETNAM: Page 29 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 31 FASN400 FASN450 DISTRIBUTOR IN VIETNAM: Page 30 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 32 FASN500 FASN600 DISTRIBUTOR IN VIETNAM: Page 31 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 33 FASD080 FASD100 DISTRIBUTOR IN VIETNAM: Page 32 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 34 FASD125 FASD150 DISTRIBUTOR IN VIETNAM: Page 33 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...

  • Page 35: Dimensions

    Dimensions Model: FASN080 / 100 Top View Side View Front View Model Dimension(mm) FASN080 1240 1340 1450 FASN100 1540 1640 1750 [unit:mm] Model: FASN125 / 150 Top View Side View Front View [unit:mm] DISTRIBUTOR IN VIETNAM: Page 34 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn...
  • Page 36 Model: FASN200 Top View Front View Side View [unit:mm] Model: FASN250 Top View Front View Side View [unit:mm] DISTRIBUTOR IN VIETNAM: Page 35 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 37 Model: FASN300 Top View Front View Side View [unit:mm] Model: FASN350 Top View Side View Front View [unit:mm] DISTRIBUTOR IN VIETNAM: Page 36 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 38 Model: FASN450 Top View Side View Front View [unit:mm] Model: FASN400/500/600 Top View Front View Side View [unit:mm] Dimension(mm) Model FASN400 1407 1547 2432 1450 1370 FASN500 1497 1637 2782 1450 1370 FASN600 1597 1737 2782 1650 1570 DISTRIBUTOR IN VIETNAM: Page 37 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC...

  • Page 39: Top View

    Model: FASD080 Top View Back View Front View Side View [unit:mm] Model: FASD100 / 125 Top View Front View Side View Back View [unit:mm] DISTRIBUTOR IN VIETNAM: Page 38 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 40 Model: FASD150 Top View DISTRIBUTOR IN VIETNAM: Page 39 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...

  • Page 41: Wiring Diagrams

    Wiring Diagrams Model: FASN080/FASD080 (With Control PCB) INDOOR TEMPERATURE SENSOR INNER COIL TEMPERATURE SENSOR CONNECT TO WALLPAD (4 CORES WIRES) (COPPER) TRANSFORMER BLACK BLACK BLUE BLACK BLUE YELLOW BLACK WHITE BLACK BLACK GREEN/YELLOW BLUE LEGEND BLUE BLACK FM - FAN MOTOR...
  • Page 42 Model: FASN100/FASD100 (With Control PCB) INDOOR TEMPERATURE SENSOR INNER COIL TEMPERATURE SENSOR CONNECT TO WALLPAD (4 CORES WIRES) (COPPER) TRANSFORMER BLACK BLACK BLUE BLACK BLUE YELLOW BLACK WHITE BLACK BLACK GREEN/YELLOW BLUE LEGEND BLUE BLACK FM - FAN MOTOR KM - AC CONTACTOR FM FL HP COMP FR - THERMAL RELAY...
  • Page 43 Model: FASN125/FASD125 (With Control PCB) FASN150/FASD150 (With Control PCB) INDOOR TEMPERATURE SENSOR INNER COIL TEMPERATURE SENSOR CONNECT TO WALLPAD (COPPER) (4 CORES WIRES) TRANSFORMER BLACK YELLOW BLACK BLUE BLACK LEGEND FM - FAN MOTOR KM - AC CONTACTOR FR - THERMAL RELAY NOTE: --------- FIELD INSTALLATION FR SETTING RANGE(A)
  • Page 44 Model: FASN200/FASD100x2 (With Control PCB) FASN250/FASD125x2 (With Control PCB) FASN300/FASD150x2 (With Control PCB) YELLOW BLUE BLACK Dip Switch Dip Switch Setting 3 4 5 0 0 0 Note: 0 - OFF, 1 - ON FR SETTING RANGE(A) GREEN/YELLOW GREEN/YELLOW comp1 comp2 LP1/HP1 LP2/HP2 INDOOR UNIT...
  • Page 45 Model: FASN350/FASD100+FASD125X2 (With Control PCB) FASN450/FASD150x3 (With Control PCB) YELLOW BLUE BLACK Dip Switch Dip Switch Setting 1 2 3 4 5 6 7 8 1 0 0 0 0 0 0 Note: 0 - OFF, 1 - ON FR SETTING RANGE(A) GREEN/YELLOW comp1 comp2 comp3...
  • Page 46 Model: FASN400/FASD100x4 (With Control PCB) YELLOW BLUE BLACK Dip Switch Dip Switch Setting 1 2 3 4 5 6 7 8 1 1 0 0 0 0 0 0 Note: 0 - OFF, 1 - ON FR SETTING RANGE(A) YLW/GRN GREEN/YELLOW comp1 comp2 comp3 comp4...
  • Page 47 Model: FASN500/FASD125x4 (With Control PCB) FASN600/FASD150x4 (With Control PCB) YELLOW KM Y BLUE BLACK KM Y Dip Switch Dip Switch Setting 1 2 3 4 5 6 7 8 1 1 0 0 0 0 0 0 Note: 0 - OFF, 1 - ON U1 V1 W1 U2 V2 W2 Field Installation FR SETTING RANGE(A)
  • Page 48 Model: FASN080/100 (Without Control PCB) FH FM FL N installation connection Note: Model: FASN125/150/200/250/300/350/400/450 (Without Control PCB) BLUE YELLOW Note: installation connection DISTRIBUTOR IN VIETNAM: Page 47 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...
  • Page 49 Model: FASN500/600 (Without Control PCB) U2 V2 W2 U1 V1 Note: installation connection Model: FASD080/100/125/150 (Without Control PCB) White White Yellow/Green Yellow/Green Note: installation connection DISTRIBUTOR IN VIETNAM: Page 48 Tel: +84 903 999 357 BACH KHOA EQUIPMENT INTERNATIONAL JSC www.bkic.vn Email: info@bkic.vn...

  • Page 50: Installations

    Installation Unit should be installed by qualified technicians. Installation should adhere to local code and regulations. Warning: Please pay attention to the following: Please check the equipment with your check list after receiving the unit. • Please keep the unit horizontal and balanced before hanging up the unit. •...

  • Page 51: Condensate Drain Pipe Installation

    • To reduce noise transmission through hanging rod, it is recommended to install rubber dampers or isolators. Muffler can be used to reduce noise transmission through air duct if the unit needs to • be installed near air-conditioned area. Condensate drain pipe installation: For easy drainage of condensate water, drain pipe must be sloped downward at least •...

  • Page 52: Outdoor Unit Installation

    Outdoor Unit Installation To ensure the unit operates at optimum performance level and to maintain long life-span of components, the choice of location of unit and installation recommendations as listed below should be followed: The discharge air and intake air direction of outdoor unit should not be blocked to •...

  • Page 53: Refrigerant Piping

    Maximum Maximum Maximum Model Length(m) Elevation (m) Bends FASN080 FASD080 FASN100 FASD100 FASN125 FASD125 FASN150 FASD150 FASN200...

  • Page 54: Additional Charging

    Additional Charging If the piping length is exceeding 10m, additional charge is necessary. The value of additional refrigerant charge (g) per 1 meter is as table below. FASD080 FASD100 FASD125 FASD150 Outdoor Model 78.0 105.0 118.5 145.5 Add. Charge, g/m Note: Failure to add proper amount of additional refrigerant may result in reduced performance.

  • Page 55: Lifting Method

    Lifting Method Each product design to be brought in safety. When the unit is to be lifted and moved, attach ropes to the suspension plates(4pcs) provided on the top of the unit. When the unit is lifted, the center of gravity tends to shift the unit to one side and so balance as shown in the figure below should be achieved.

  • Page 56: Servicing And Maintenance

    Servicing and Maintenance Indoor Unit Air Filter The filter must be cleaned regularly and the frequency of cleaning is to be • determined by the degree of pollution of the environment of application. When washing the filter, first tap it gently to remove larger particle, and then rinse the filter in detergent and warm water.

  • Page 57: Troubleshooting

    Troubleshooting Fault Possible Cause Solution Blower blade or blower shaft loose. Tighten the shaft. Blower or blower housing dirty. Clean blower. Duct or modulating valve loose. Repair duct and modulating valve. Fan belts not align or loose. Align or tighten fan belt. Nuts and bolts for motor, fan or motor base Tighten the nuts and bolts.
  • Page 58 A member of the FRIMEC International Group ©2020 FRIMEC International www.frimec-international.com...
