Page 1

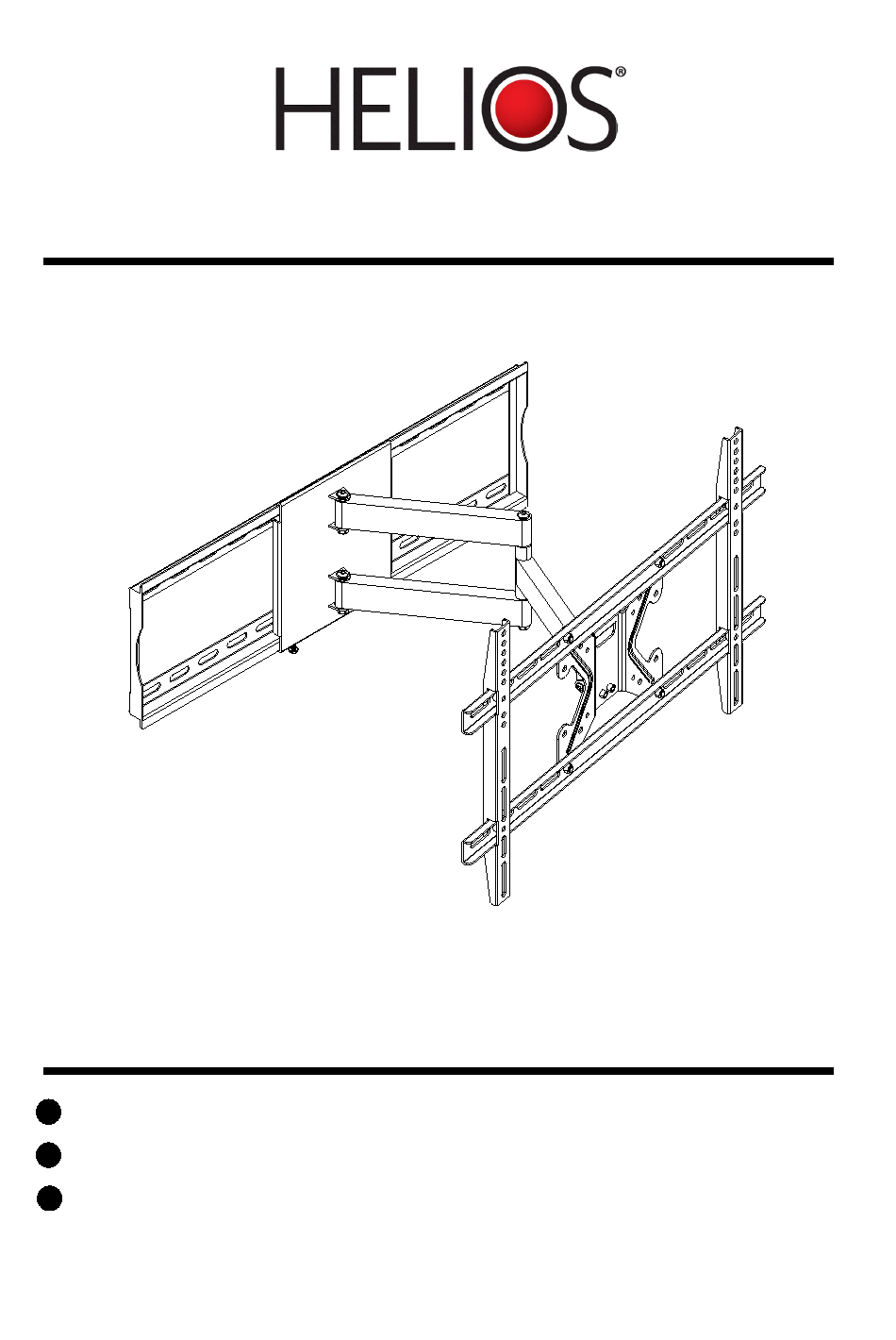

Assembly Instructions MODEL:FML64PL Please read the instructions carefully before using. This model will hold 32-65 inch Plasma and LCD TVs Load capacity:34kg(75LBS)
Never use defective parts, Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified by Helios. Helios can not liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use.
Page 3
TV mounting hardware a--M4x12 bolt b--M6x12 bolt c--M8x25 bolt d--M4x30 bolt e--M6x35 bolt 4pcs 4pcs 4pcs 4pcs 4pcs f--M8x45 bolt g--M6x17mm spacer h--M8x22mm spacer i--M8x10mm spacer 4pcs 4pcs 4pcs 4pcs j--2.5mm spacer k--M4 washer l--M6 washer 8pcs 4pcs 4pcs Safety Directions: Step 1 Read and understand all the directions, handle and use according to the directions strictly.
Page 4
Step 3 Attach the wall plate Wood Stud Mounting The Wall Plate must be mounted to the wood stud which the width should be at least 50CM more than the widest point of the Wall Plate to ensure the wood stud is strong enough to hold the weight of the TV and wall mount itself.
Page 5
Step 5 Attach TV connecting unit to TV. Option 1 VESA:75*75mm,100*100mm. Unit 1 Lay TV face down,choose the suitable hareware and fix (D) to the back of TV .Please keep the TV level(figure 6). Option 2 VESA:200*200mm,600*400mm. Unit 2 Lay TV face down,fix (D) onto (B),and then slide (C) onto (B),using the correct screws to fix them on the back of TV(figure 7).
Page 6
figure 10 figure 11 Note:This step must require 2 or more professional to finish. Step 6:Adjust the TV angle and manage the wire Check and tighten all screws you can use handle (2) to adjust tilt angle .Please tighten (2) when the screen is in a desire angle.
