UniCarriers Platinum SCX Series Operator's Manual

3-wheel stand-up 36v ac powered electric
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R

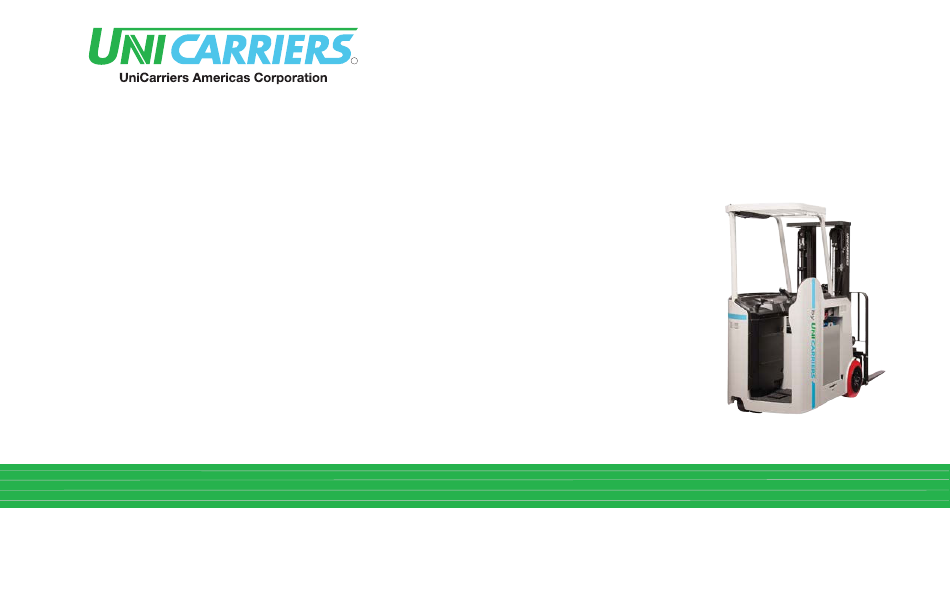

OPERATOR'S MANUAL
MODEL 1S1
Platinum SCX Series 3-Wheel Stand-Up
36V AC Powered Electric
3,000-4,000 lb. Capacities
OPERATOR
Printing: October 2015 (01)
Publication No.: 0M1UC-1S100
Printed in Marengo IL USA
