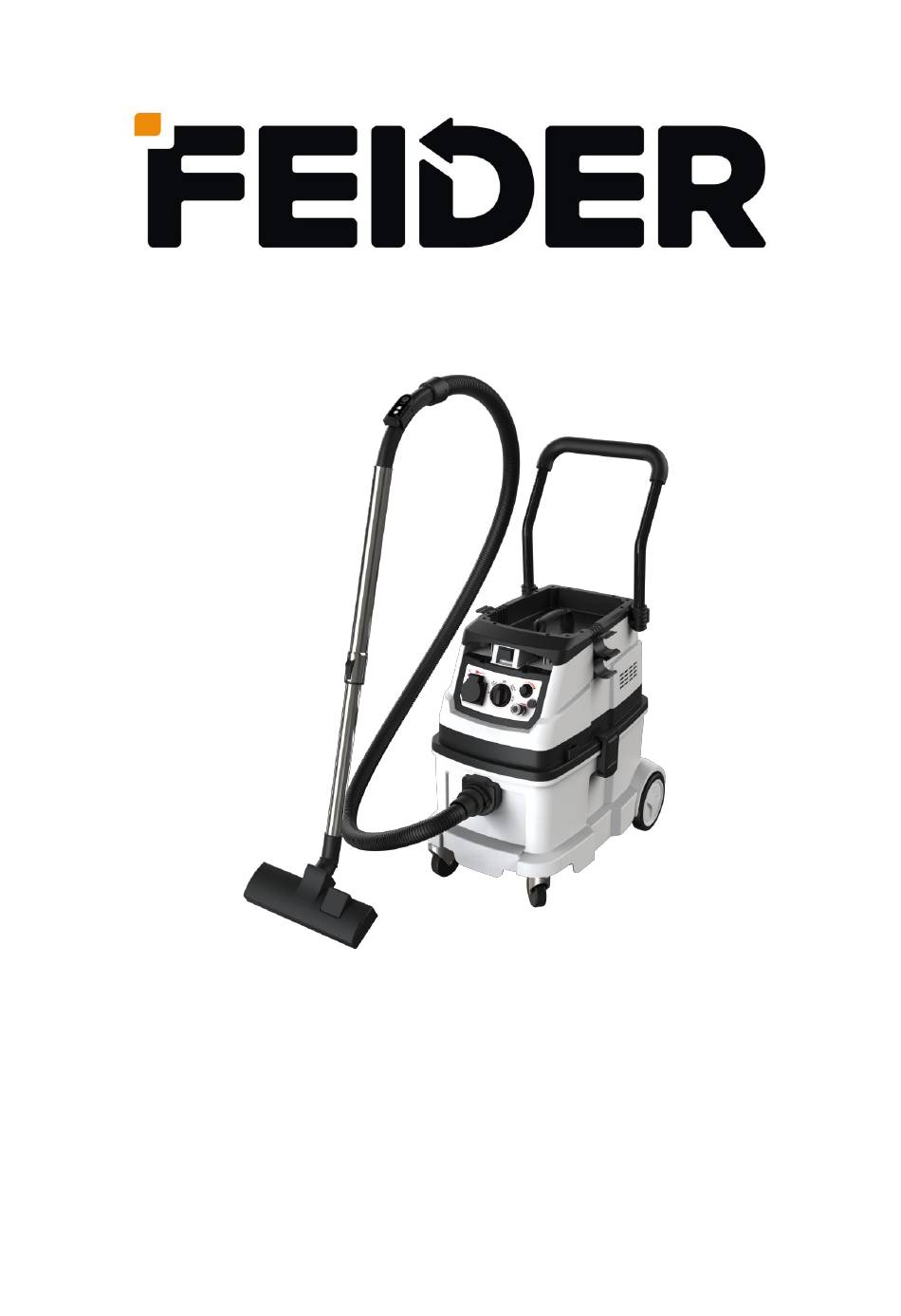

- Page 1 ORIGINAL INSTRUCTIONS >EN WATER AND DUST VACUUM CLEANER TRONIK1 USER GUIDE CAUTION: Read the instruction manual before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. THE PRODUCT............................7 3. INTENDED USE............................8 4. OPERATION............................... 8 5. MAINTENANCE............................11 6. TROUBLESHOOTING..........................12 7. EXPLODED VIEW AND PARTS LISTS....................13 8. DISPOSAL..............................15 9. DECLARATION OF CONFORMITY..................... 16 10. WARRANTY............................17 11. PRODUCT FAILURE..........................18 12. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS General safety instructions for machine preparation, operation and maintenance are provided in this manual. The use should comply with the instructions. Otherwise, in case of an accident, the manufacturer shall not be held responsible. Considerations relating to safe use 1. - Page 4 and use a sponge filter. 10. Clean the tank if it contains a lot of dust. Warning 1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 2.
- Page 5 close to any heat sources to avoid fire. 12. Do not use the power cord or power plug if one of them is damaged, a professional should perform repairs; 13. WARNING Operators shall be adequately instructed on the use of these machines. 14.
- Page 6 commercial use and only indoor use. 2) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 3) This appliance intended persons(including children)with reduced physical, sensory or mental capabilities or lack of experience and knowledge 4) Children should be supervised to ensure that they do...
-
Page 7: The Product
2. THE PRODUCT Description Pic.1 15 Cable Floor brush Switch 16 Lock catch Relescope tube Protection switch 17 Big wheel Hook Hose connector 18 Cover plate Pneumatic outlet Remote control 19 Dust barrel Electrical outlet Hose 20 Suction Gear knob Pushing rod 21 Universal wheel Speed control knob... -
Page 8: Intended Use
Suction ≥ 20 kPa Dust class Class M Weight 17.4kg Maximum flow rate 1.8m Maximum under pressure 0.19bar Sound pressure level 78dB(A) Vibration ≤2.5m/s Note: The vacuum cleaner is equipped with a double suction structure including front and top suction, they can be used for different functions. - Page 9 3. Install the hose holder on the machine, taking care to insert the bottom into the slot on the body of the machine 4. Insert the hose connector into the suction port of the machine, rotate it in place clockwise, insert the elbow into the metal pipe, and insert the other end of the metal pipe into the floor brush.
- Page 10 Works in sync with pneumatic or electric tools and Hepar can cleaned automatically Work in sync with pneumatic or electric tools When the vacuum cleaner is working, the remote control can be used to control the starting and stopping of the motor and the speed regulating function LED lights red, when the filter needs to be cleaned NOTE: during the Hepar be cleaned automatically, the automatic dust shaking function will be...
-
Page 11: Maintenance
3. Turn anticlockwise as shown in the figure to release 6 locking hooks and take out the Hepa filter NOTE: when loading the Hepa filter, turn the lock hook in the opposite direction 4. Wash the Hepa filter under tap water instead of brush. 5. -
Page 12: Troubleshooting
• To extend the life of the device, clean the body, filter and dust bag after use. • Wrap the power cord, store the accessories. • Remove the dirty water after use to prevent rust or corrosion of the tank. •... -
Page 13: Exploded View And Parts Lists
7. EXPLODED VIEW AND PARTS LIST... - Page 14 Name Name ST4.0*16 self-tapping screw Motor Handle ST4.0*16 self-tapping screw Conductive probe Hose bracket Cable Decoration bracket Motor down sealing M6 nut Sealing base Middle cover ST4.0×16 self-tapping screw Switch Motor base Switch bracket Hepa sealing 10 Switch connection wire A Sealing block 11 Switch connection wire B Transfer block...
-
Page 15: Disposal
81 M4 Anti-loosening nut 100 ST4.0*16 self-tapping screw 82 4.5 Steel column chain 101 Pneumatic sticker 83 Accessory bracket 102 Quick connector - female head 84 Brush 103 ST4.0*14 self-tapping screw 85 ST4.0*16 self-tapping screw 104 Switch braket 86 ￠32 Metal expansion tube 105 Pneumatic plate 87 ￠32 round brush 106 Front Pneumatic hose... -
Page 16: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 States that the designated below machine : WATER AND DUST VACUUM CLEANER Model: TRONIK1 S/N: 20240910517-20240910566 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 17: Warranty
10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 18: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 19: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
