Technical Support and E-Warranty Certificate www.vevor.com/support
FOLDING MOBILITY SCOOTER
MODEL: W3331
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major bran
Advertisement
Table of Contents
Related Manuals for VEVOR W3331
Summary of Contents for VEVOR W3331
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support FOLDING MOBILITY SCOOTER MODEL: W3331 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 9 degrees, motorized roads, or rainy days, either. This product is of Model W3331. Here, “W” indicates an outdoor mobility scooter, “3” means the code of category of products, “4” indicates the number of wheels, ”67”...
- Page 4 II. SPECIFICATION AND STRUCTUREE Your scooter mainly consists of below parts: scooter body, seat unit, controller, handlebar, motors, driving wheels, brake lever, suspensions, batteries, and scooter light. (see fig. 1) tiller console handlebar seat unit headlight armrest Cart basket brake lever driving wheel batteries scooter body...
-
Page 5: Specifications
1.TILLER CONSOLE (see fig.2) a. Key Switch b. Speed Adjustment Knob c. Battery Condition Indicator d. Headlight Button fig.2 e. Control Lever Handlebar 2. CHARGING AND ELECTRIC CONTROL SYSTEM (see fig.3) a. 3-Pin Charger Socket fig.3 b. Load Protector 3. SEAT UNIT (See fig. right) a. - Page 6 Braking distance on the flat ≤1500mm Min.turning radius ≤800mm ≤120kg Load capacity Theoretical range ≥20km Climbing ability 9° 24V/180W Motor Battery Lead-acid battery packs; 24V12AH Front wheels ODxW (8"x2") Rear wheels ODxW (9"x2.5") III. ASSEMBLY MANOPENING THE PACKING BOX Open the packing box of your new scooter,and take off all protective liner, and then take the folded scooter out from the box.
-
Page 7: Battery Assembly
BATTERY ASSEMBLY 1. Pull out the seat tube plug,and unscrew the two nuts from the rear cover.(see fig.5,fig.7) 2. Push the brake lever to the front"N"mode(see fig.8) 3. Put the battery pack into the battery tray(Fig.9).Please align the plug of battery pack with it from scooter body properly. -
Page 8: Comfort Adjustments
WARNING! Remove the key from the key switch before adjustments. Never attempt to do adjustments IV. COMFORT ADJUSTMENTS SEAT HEIGHT ADJUSTMENT Pull up the seat lock-lever located on the low right of the seat to unlock the seat. Pull up the seat. ( see fig.11 ) Buckle the ring on the seat-latch by your finger and pull it out. -
Page 9: Operation
CHARGING YOUR BATTERIES Charging is important to the batteries, and the off-board charger provided by vevor can simply and quickly charge the batteries of this mobility scooter. WARNING! You must charge your scooter’s battery with the supplied off-board battery charger. Do not use an automotive-type battery charger. - Page 10 After 4 to 5 times of charging cycles, the batteries will top off at 100% charge and last for an extended period. Please purchase Vevor’s batteries of 24V/12AH if the batteries of your scooter need to be replaced.
- Page 11 WARNING! If your scooter occurs an unexpected motion, please release the throttle control lever immediately. The scooter will automatically stop unless this lever is out of the order. HEADLIGHT BUTTON (See Figure 2) The button helps a clear vision and safe driving at night. LOAD PROTECTOR (See fig.3) The load protector is a safety device.
-
Page 12: Care And Maintenance
VI. CARE AND MAINTENANCE General Guidelines Avoid knocking or bumping all control parts. Avoid prolonged exposure of your scooter to extreme conditions, such as over heat, cold or moisture. Keep the tiller console clean. Check all connectors to ensure them to be tight and secure properly. Check all electrical connectors including the charger’s connectors. - Page 13 VII. SAFETY 1. Perform the following instructions prior to using your scooter: Check all electrical connections. Make sure they are tight and not corroded. Check all connections to the battery box. Make sure they are correct and secure. Check the brakes and keep their best function. Check the battery charge.
- Page 14 WARNING! Do not use your scooter in freewheel mode without an attendant present . Failure to do so may cause personal injury. WARNING! Do not shift in your seat without your attendant help when your scooter is in freewheel mode. Otherwise may result in personal injury. Please ask your attendant for assistance if necessary.
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
Need help?
Do you have a question about the W3331 and is the answer not in the manual?
Questions and answers

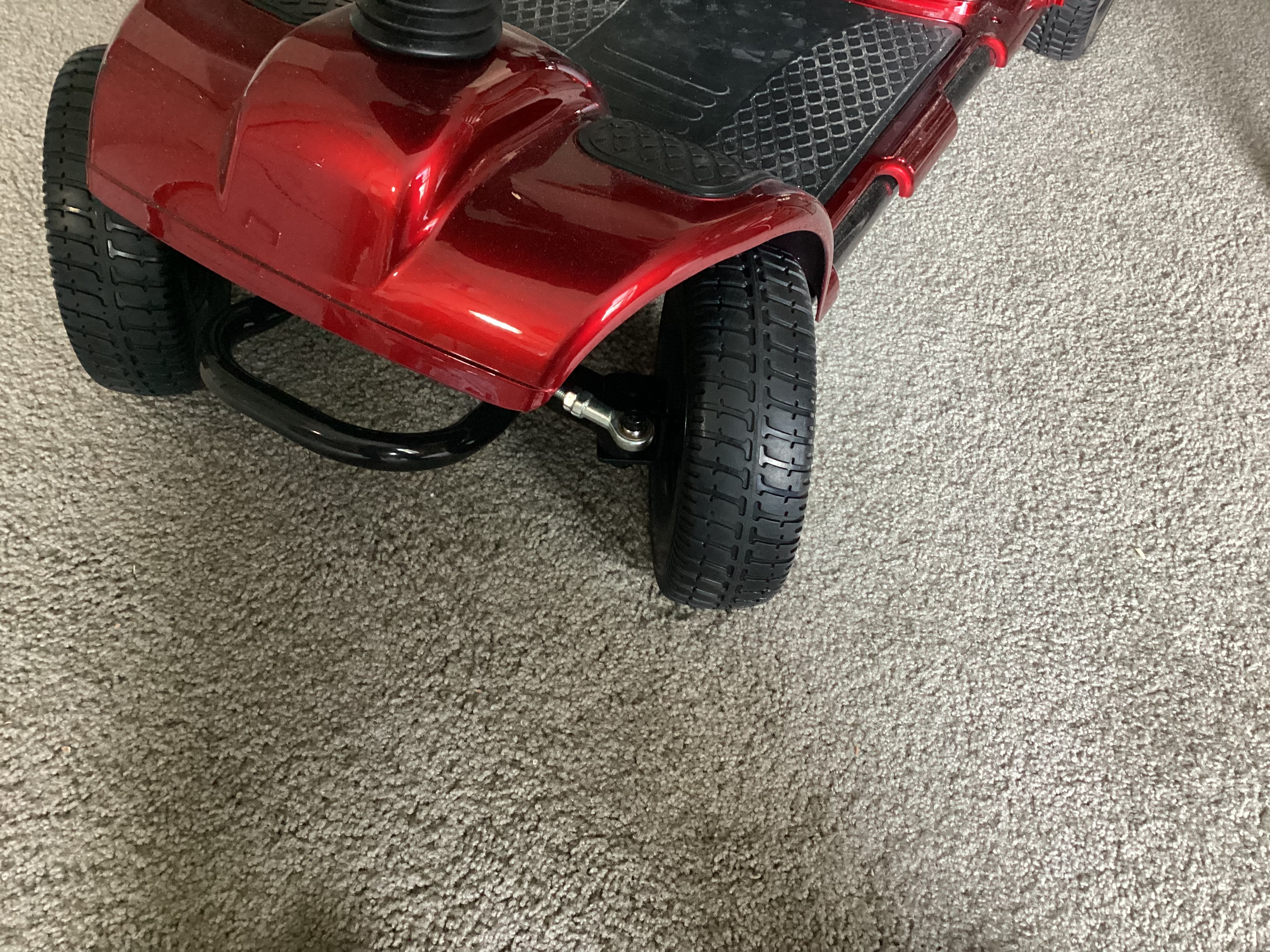

How do I replace front wheel bearings?|. I get a “bump” “bump” noise from the Left Front Wheel.
Where can I buy a replacement battery for my W3331 Vevor scooter? What kind?
I turn it on and it beeps continuously 5 times, I move the lever and it keeps doing it
Bought scooter 3/25. Batteries fully charged. Indicaters say fully charged. Lights work, horn works, levers do not work?? Is there a reset button??
