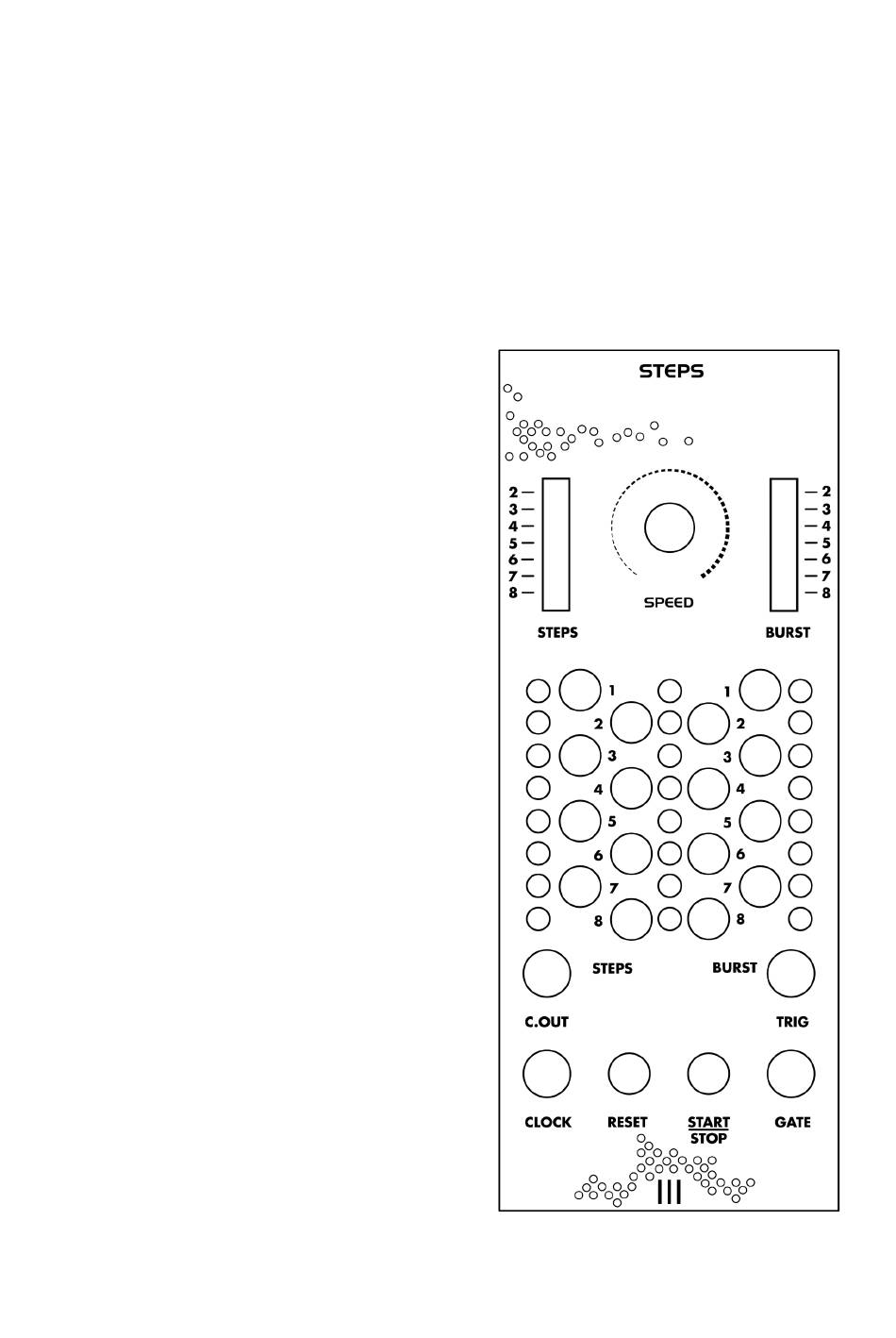

- Page 1 Tre Modular - Steps User Manual Thank choosing Tre Modular - Steps! This guide will walk you through the features, and usage of this module.
- Page 2 Burst mode replaces a specific step with a multiplied copy of that signal. Steps accept any signal that goes above 1.5v. It will internally convert it to a square wave that drives the module. On the “C.OUT” output it will output a converted signal.
-
Page 3: Specifications
Since it uses a PLL circuit it has some inherent delay while it locks to the incoming frequency, it makes for an interesting sounding portamento effect. You can go a step further and sculpt the sound more by turning on or off steps or burst mode. - Page 4 Burst multiplier: Allows to select multiplication amount of burst mode. Steps ON/OFF: Allows to turn on or off specific steps. Burst ON/OFF: Allows to turn on or off burst mode for specific steps. Reset: Resets the sequence to the first step.
-
Page 5: Installation
LEDs: Sequence LEDs: Displays currently active step. Steps LEDs: Displays which steps are turned on or off. Burst LEDs: Displays if burst mode is active on the corresponding step. Inputs: Clock: Clock signal input. Outputs: C.Out: Outputs copy of the clock signal.
