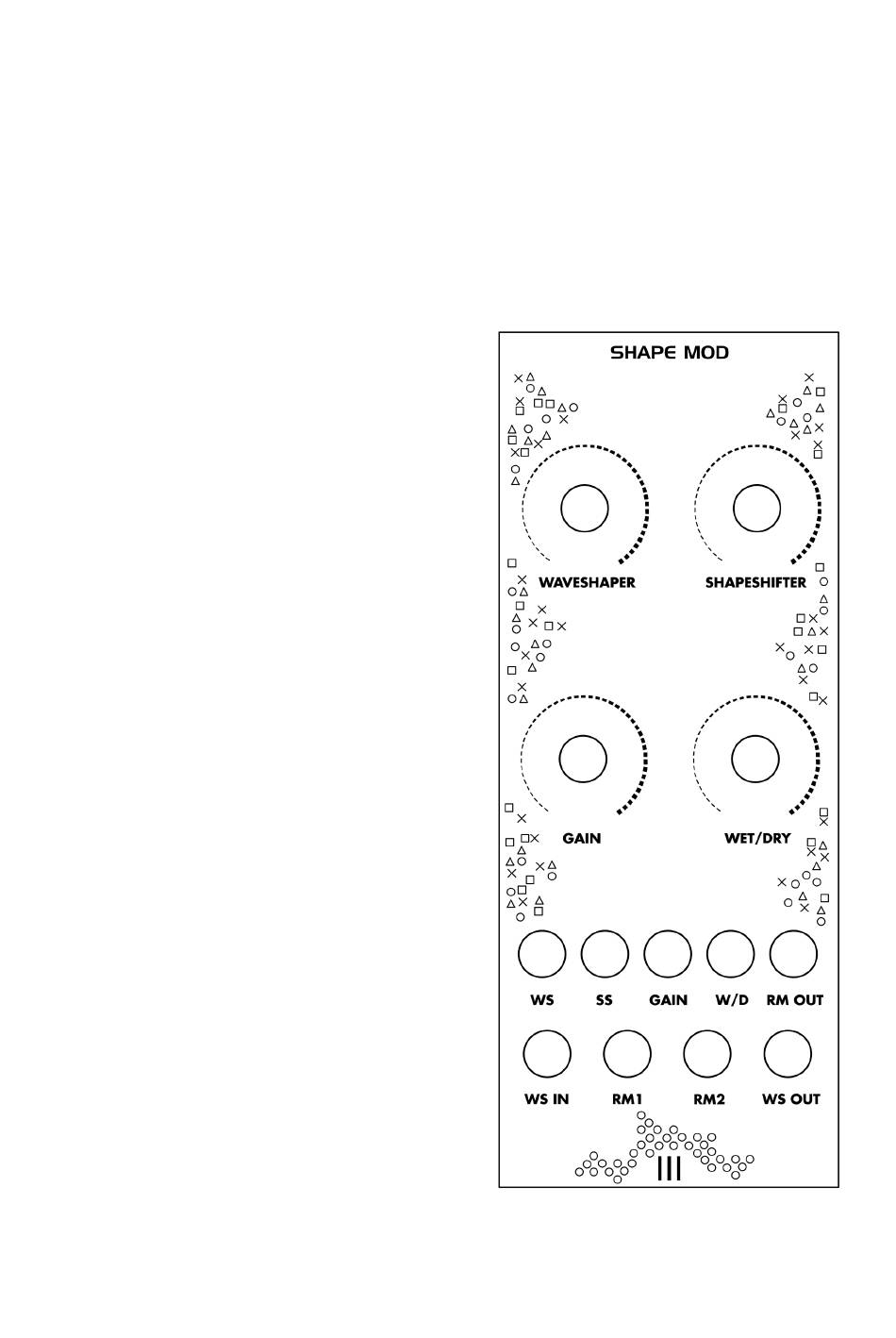

- Page 1 Tre Modular - Shape Mod DIY Assembly Guide Thank you for choosing Tre Modular! In this guide, we will walk you through the process of assembling your very own Tre Modular - Shape Mod module.
-
Page 2: Before You Begin
Always adhere to proper soldering techniques, work in a well-ventilated space, and handle electronic components with care to ensure the longevity and optimal performance of your Shape Mod. Ensure you have all the necessary components listed in the Bill of Materials. - Page 3 Legend: Front:...
- Page 4 Back:...
-
Page 5: Assembly Guide
Assembly Guide: Step 1: Identify and Sort Components Organize the components into groups based on their types: resistors, capacitors, diodes, transistors, potentiometers, connectors, and jack sockets. Step 2: Diodes Insert and solder the 1N4148 and 1N4002 diodes according to the legend. Ensure correct orientation, referring to the diode's polarity. -
Page 6: Additional Information
Power off your Eurorack system. Insert the module into an available slot. Connect the power cable, ensuring correct polarity. Power on your Eurorack system. Enjoy! Additional Information: For any additional questions or support, please contact Tre Modular at support@tremodular.com Happy patching!
