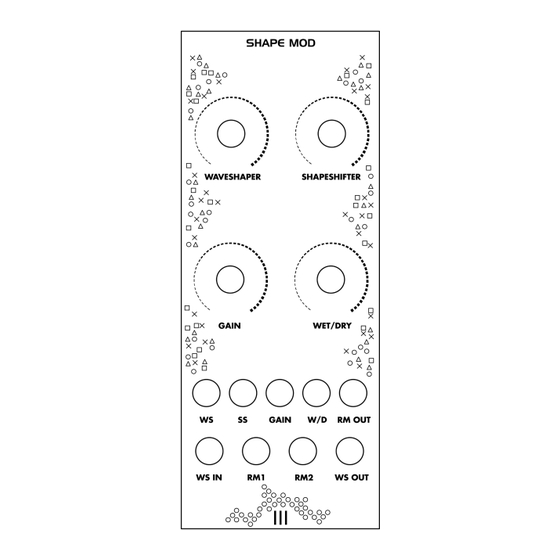

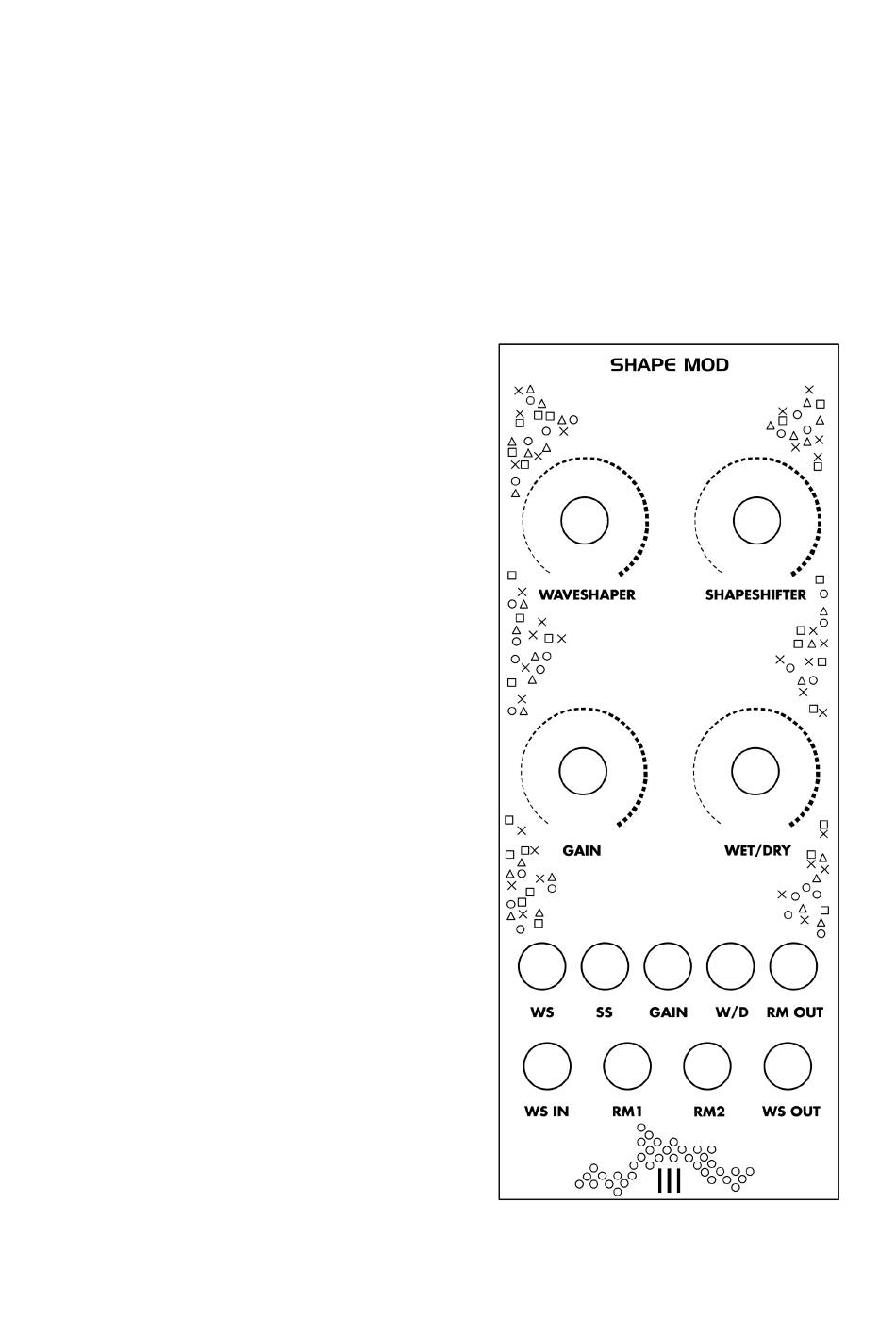

- Page 1 Tre Modular - Shape Mod User Manual Thank you for choosing the Tre Modular - Shape Mod Eurorack module! This guide will walk you through the features, and usage of the Shape Mod module.
- Page 2 On one end it gives a softer sounding waveform and on the other it produces a more harsh sound. Ring Modulator: Shape mod has a built in ring modulator using AS3363. With nothing plugged in waveshapers output is normaled to both ring modulator inputs. VCA: This module can also be used as single channel VCA.
- Page 3 Specifications: Module width: 10 HP Module depth: 25mm CV: 0-10v Power Consumption: 43mA at +12V / 42mA at -12V Reversed polarity protection Controls: Waveshaper: Adjusts the waveshaping effect. Shapeshifter: Controls polarity of a specific waveshaping stage. Gain: Adjusts waveshapers gain. Wet/Dry: Blends between processed (wet) and unprocessed (dry) signals.
- Page 4 Power off your Eurorack system. Insert the module into an available slot. Connect the power cable, ensuring correct polarity. Power on your Eurorack system. Enjoy! Additional Information: For any additional questions or support, please contact Tre Modular at support@tremodular.com Happy patching!
