Summary of Contents for MPMan OV15 - annexe 1

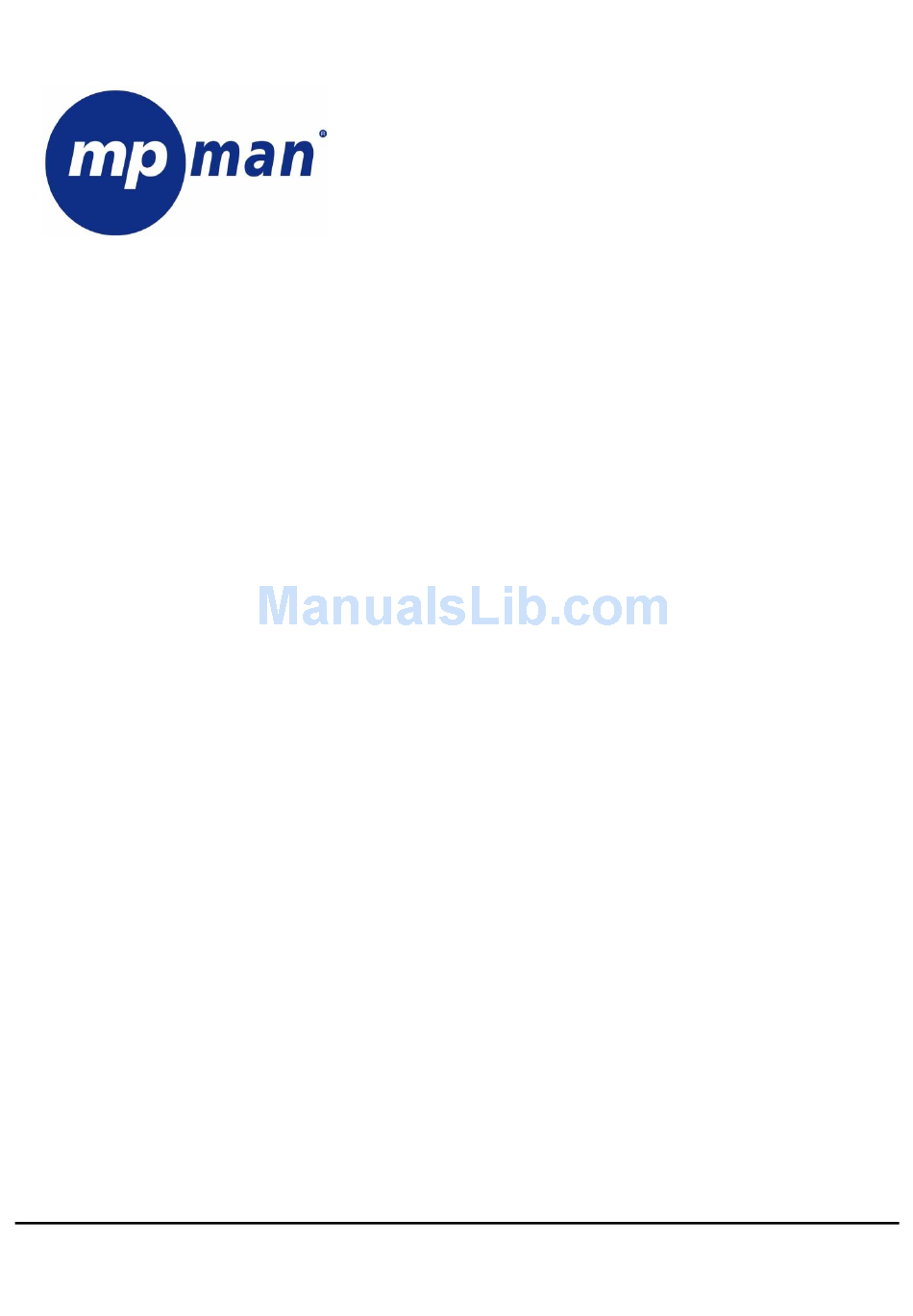

- Page 1 DIGITAL VIDEO / MUSIC PLAYER MP3/WMA/AMV USER MANUAL MP-OV15 FM www.mpmaneurope.com Before connecting, operating or adjusting this product please read these instructions completely.
-
Page 2: Computer Requirements
GENERAL 1.1 OV15 characteristics Support MP1/MP2/MP3/WMA/WMV/ASF/WAV/OGG music format. Support AMV movie format Support JPEG/BMP/GIF picture format Support WAV/MP3 format voice recording 1.5” high resolution full color display Graphic user control interface 1.2 Box set includes MP3 player Stereo earphone Driver & utilities CD disc Quick guide USB cable 1.3 Computer requirements... -
Page 3: Power On/Off
1.6 Battery OV15 has an on screen battery monitor: • When battery level low , recharge immediately (connect OV15 to external charger or PC) • Nine level battery indicator (indicator flashes when charging) Attention: Voice recording can only work at battery level 2 or above! 1.7 Power on/off Power on/off the player by switching “POWER”... -
Page 4: Operation
OPERATION 2.0 Main Menu Seven mode at main menu with different featuring, respectively: Music Movie Record Voice FM Radio JPG View Setting Use “NEXT” or “PREV” keys to select among these modes, then press “MENU” key to enter 2.1 Music mode From main menu, select MUSIC mode and press MENU button to enter. -
Page 5: Movie Mode
Replay A-B replay – user can mark certain segment of music for continuous repeat When replay mode selected, icon appears with letter “A” flashing Press “NEXT” to set repeat segment starting point A. Letter “B” starts flashing Press “NEXT” to set repeat segment ending point B A-B music segment repeats continuously. -
Page 6: Record Mode
2.3 Record mode From main menu, select RECORD mode and press MENU button to enter Press “PLAY” key to start recording Press “PLAY” key again to pause recording (recording time flashes) Press “PLAY” key again to continue recording. Press and hold “PLAY” button to stop recording and save recorded voice to file (“SAVING…” message appears) When the device is not recording, short press “MENU”... - Page 7 2.5 FM radio Select FM radio in main menu and push MENU button to enter: - Short press “ ” or “ ” button to change frequency with 0.1 Hz; - Press and hold “ ” or “ ” button. Release when frequency changes. Tuner will automatically search for the next available station - Press PLAY button to select the next stored radio station - Long press MENU button to exit back to main menu;...
-
Page 8: Setting Mode
2.7 Setting Mode From main menu, select SETTING mode and press MENU button to enter Record type Selection of voice recording file format. Choose between WAV and MP3. Dark mode Setting of standby time before LCD screen switches off. Push any button to switch the LCD screen back on. Time can be set between 0 and 30 seconds. -
Page 9: Specification
SPECIFICATION DISPLAY 1.5" Diagonal CSTN Display PC CONNECTION USB 2.0 High Speed FLASH MEMORY 1, 2, 4, 8GB POWER SUPPLY 3.8V Rechargeable Lithium Battery MUSIC FORMAT MP1, MP2, MP3, WMA, WMV, ASF, WAV, MTV, OGG MOVIE FORMAT AMV (16 frames/second) RECORD FORMAT WAV (32-384K BPS sampling rate) MP3 (32-192K BPS sampling rate)
