VonHaus 08/068 User Manual

4 DRAWER TROLLEY
08/068 - User Guide
08/069
08/134
Please read all instructions carefully and retain for future reference.
®
This VonHaus 4 Drawer Trolley is designed and intended for domestic use only. It should not be used for commercial purposes.
This unit is not a toy. Children should supervised to ensure they do not play with the Trolley.
This unit contains small parts and components which pose a choking hazard to children and animals. Keep these parts clear from
children and pets.
Check the contents of the packaging against this manual to ensure there are no missing or defective parts. Never use defective
parts.
Assemble only as instructed within this manual. Any deviation or shortcut may lead to incorrect assembly or be considered customer
misuse. Improper assembly may cause damage or serious injury. We recommend two people are present to assemble the VonHaus
4 Drawer Trolley.
Do not overload the drawers. For stability, heavier items should always be placed in the bottom drawers.
Do not over-tighten any parts during assembly as this will damage the unit.
®
WARNING! The VonHaus 4 Drawer Trolley should only be positioned on a flat stable surface. If moving the Trolley, firmly grasp the
Trolley via the top rails at the top of the frame, ensuring the top shelf is clear. It is advisable to remove the drawers and contents if
moving the Trolley across slopes or inclines.
CAUTION: To ensure continued safety, check the unit is secure and safe to use at regular intervals (every 3 months). Take
appropriate action to rectify any unstable or unsafe units.
If you do not understand these directions, or have any doubts regarding the safety of the assembly, please seek advice and
guidance from a qualified person.
PARTS LIST
A
E F
1

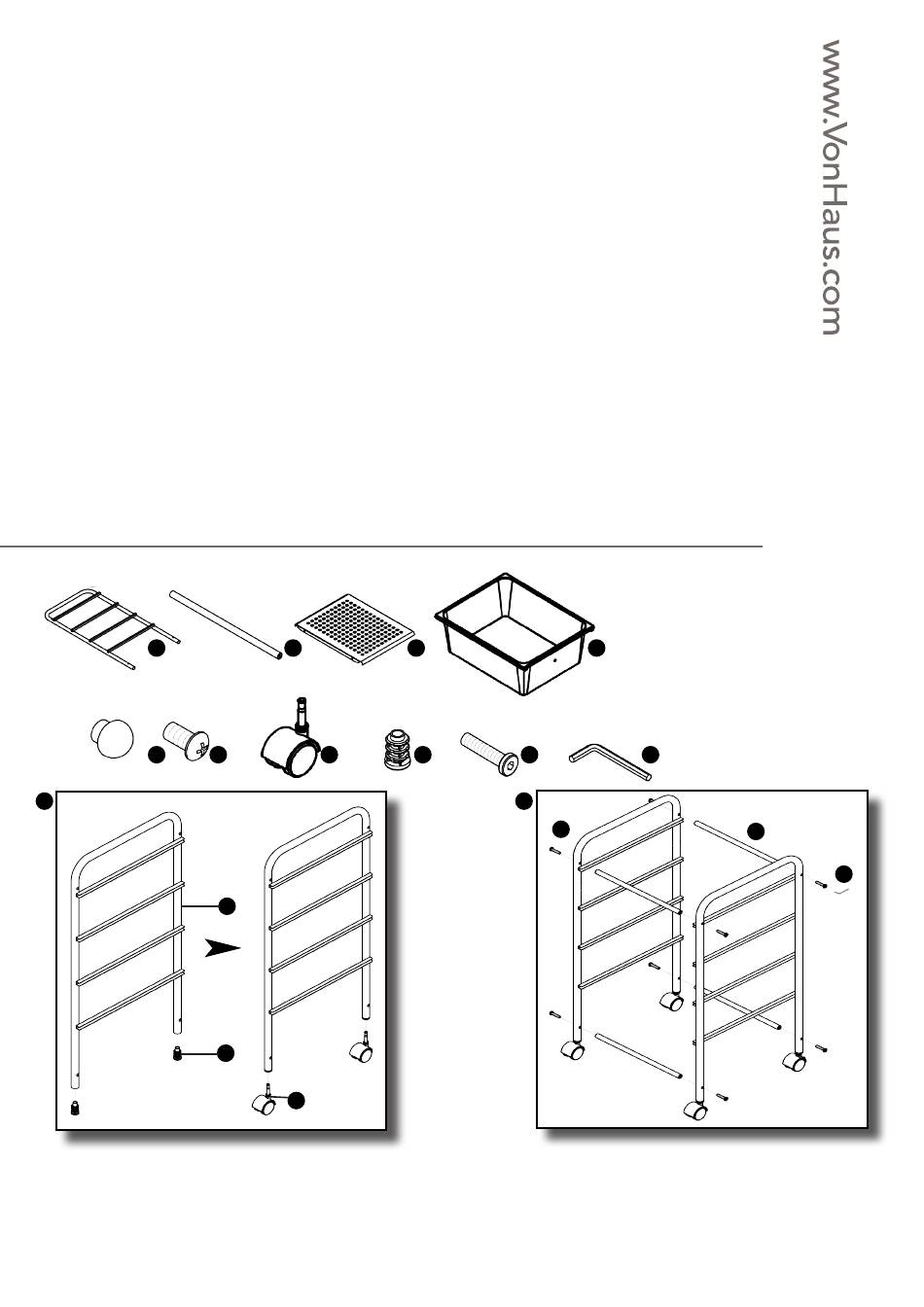

1. Insert 2 Caster Sleeves (H) into the base of each Frame
(A). Insert and secure 2 Twin Wheel Casters (G) into each
Frame.
CAUTION: Casters may require some force to insert. Take
care not to trap body parts or clothing.
TOOLS REQUIRED: Suitable crosshead screwdriver (not supplied)
B
G
A
H
G
C
H I
2
I
2. Secure 4 Spacing Rails (B) by inserting 4 Fixing Bolts (I)
through the pre-drilled holes in the Frame. Tighten using
the Hex Key (J). Insert the remaining 4 Fixing Bolts into the
opposite side of the Frame to secure.
NOTE: The Spacing Rails should face each other inside of
the Frame assembly.
A - Frame (x2)
B - Spacing Rail (x4)
C - Top Shelf (x1)
D - Drawer (x4)
D
E - Handle (x4)
F - Handle Fixing Screw (x4)
G - Twin Wheel Caster (x4)
H - Caster Sleeve (x4)
I - Fixing Bolt (x8)
J - Hex Key (x1)
J
B
®
J
