Summary of Contents for VonHaus 2515292

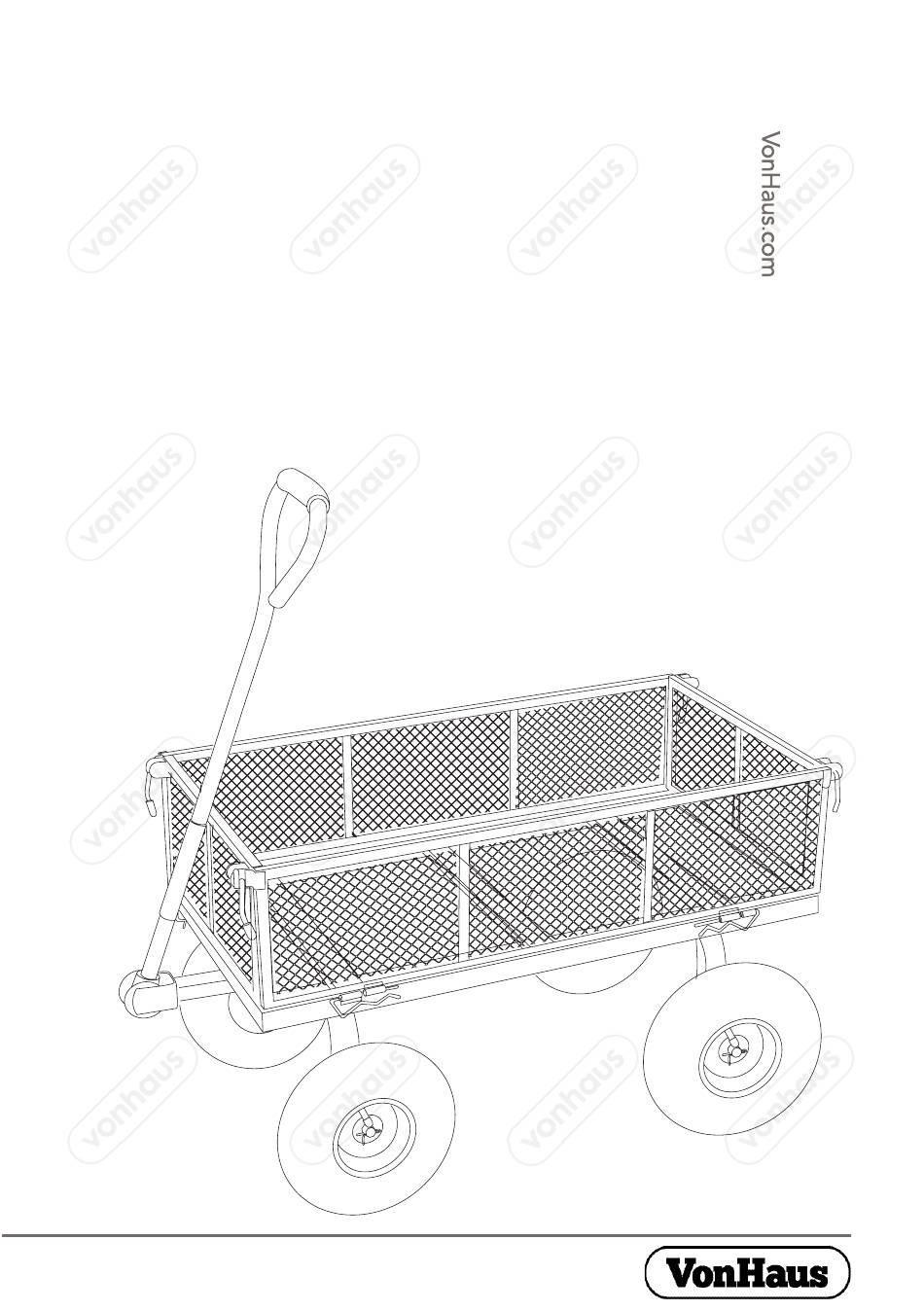

- Page 1 MESH GARDEN CART 2515292 - Instruction Manual...
- Page 2 CONTENTS Safety Instructions & Tools Required Components Assembly Assembly Assembly Warranty...
- Page 3 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING! Read and understand all instructions. Do not exceed loading capacity. Failure to follow all instructions listed below may Maximum load capacity: 500kg. result in serious injury. IMPORTANT: Load capacity is greater than the CAUTION: Do not allow persons to operate or maximum weight for dumping.
- Page 4 COMPONENTS A End Sections (x2) B Side Sections (x2) C Pneumatic Wheels (x4) D Base (x1) E Handle (x1) F Handle Bracket (x1) G Front Axle (x1) H Rear Axle (x1) J Bolt/Washer/Nut (x2) K Large Nylon Nut (x1) I Hinge with Washer/Bolt/Nut (x1) L Small Nylon Nut (x2) M Large Washer (x4) N Small Washer (x2)
- Page 5 ASSEMBLY STEP 1: Fix the Handle Bracket (F) to the Front Axle (G) using the two (J) Bolt/Washer/Nuts. STEP 2: Take the Base (D) and turn upside down so that the protruding bolts are facing upwards. Place both Axles (G/H) over the bolts, followed buy the Washers (N/M) and secure into place using both the Large/Small Nylon Nuts (K/L) as shown.
- Page 6 ASSEMBLY STEP 3: Attach the 4 Pneumatic Wheels (C) to each end of the assembled base followed by a Large Washer Secure into place by threading a Split Pin (P) through each of the holes and bending to secure. STEP 4: Remove the Bolt/Washer/Nut from the Hinge (I) insert the Handle (E) and align up the holes.
- Page 7 ASSEMBLY STEP 5: Turn the cart assembly onto its wheels, Take the Side Sections (B) and the End Sections (A) and secure into place using the R-Pins (O). NOTE: Ensure the brackets are on the outside of the cart for the Sides and Ends to sit flush. NOTE: Lift the Locking Handles to align with the slots on the Side Panels.
- Page 8 This does www.Vonhaus.com/warranty. not affect your statutory rights. Please retain a proof of purchase receipt or No rights are given under this warranty to a statement as proof of the purchase date.
- Page 9 USER NOTES...
- Page 10 Thank you for purchasing the Mesh Garden Cart. VonHaus is a registered trademark of DOMU Brands Ltd ® Made in China for DOMU Brands Ltd M24 2RW...
