VonHaus 2515213 Instruction Manual

75ltr garden dump truck
Hide thumbs Also See for 2515213:
Table of Contents

Advertisement

Quick Links

Download this manual
75
GARDEN
LTR
DUMP TRUCK
2515213 - Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2515213 and is the answer not in the manual?

Questions and answers

Related Manuals for VonHaus 2515213

Summary of Contents for VonHaus 2515213

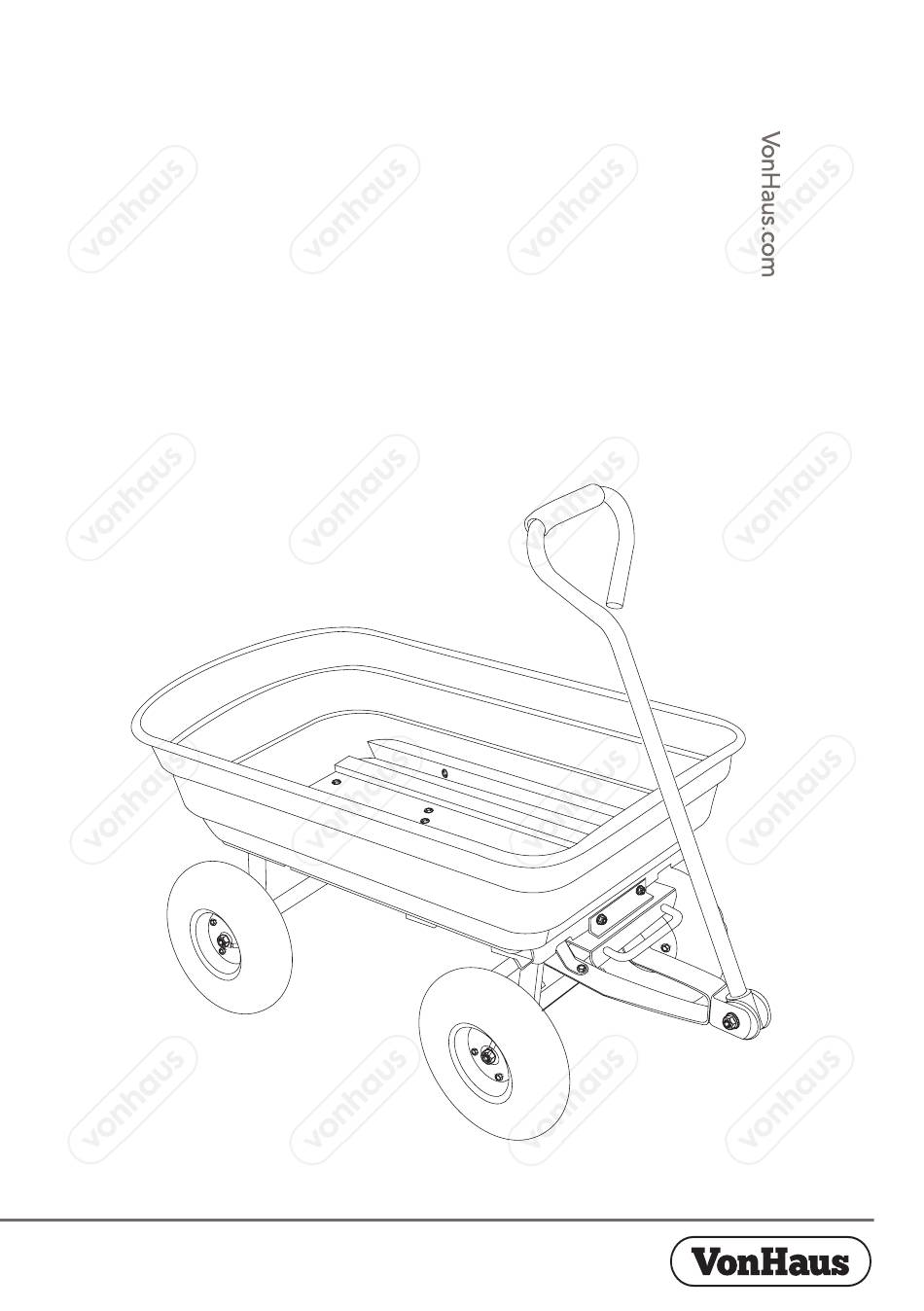

  • Page 1 GARDEN DUMP TRUCK 2515213 - Instruction Manual...
  • Page 2 CONTENTS Safety Instructions, Tools Required Hardware List, Components Assembly Assembly Using the Handle, Cleaning and Maintenance Warranty...
  • Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE IMPORTANT: Load capacity is greater than the WARNING! Read and understand all instructions. maximum weight for dumping. Weights are based on Failure to follow all instructions listed below may result an evenly distributed load.

  • Page 5: Hardware List

    HARDWARE LIST M8X60 Bolt M8X20 Truss Head Bolt M8 Lock Nut M8 Washer (x1) (x16) (x16) (x16) Wheel Washer M12 Wheel Lock Nut (x4) (x4) COMPONENT LIST Support Frame Front Axle Support Rear Axle Support Bar Left & Right Strut Bars Pully Handle with Grip Spring-loaded Tip Handle 10”...
  • Page 6 ASSEMBLY STEP 1 Take the Left & Right Strut Bars (5) and slide over the outer poles of the Rear Axle Support Bar (4). Align the holes on the Strut Bars over the curved end of the Tub (1), then take 6 M8X20 Truss Head Bolts (B), each with a M8 Lock Nut (C) and M8 Washer (D), and attach through the holes as shown.
  • Page 7 ASSEMBLY STEP 4 Attach the Spring-loaded Tip Handle (7) using 4 M8X20 Truss Head Bolts (B) and secure into place using M8 Lock Nuts (C) and M8 Washers (D). STEP 5 Slide the Trolley Wheels (8) over the Axles and secure using Wheel Washers (E) and M12 Wheel Lock Nuts (F).

  • Page 8: Using The Handle

    USING THE HANDLE To operate the dumping the feature, pull the Spring- loaded Tip Handle (7) outward to release the Tub (1) from the locking mechanism. Lower the Tub back down into position, making sure that the Tip Handle is locked into the place. CLEANING &...

  • Page 9: Disposal Information

    This does www.VonHaus.com/warranty not affect your statutory rights. Please retain a proof of purchase receipt or No rights are given under this warranty to a person statement as proof of the purchase date.
  • Page 10 Thank you for purchasing the 75Ltr Garden Dump Truck. VonHaus is a registered trademark of DOMU Brands Ltd Made in China for DOMU Brands Ltd M24 2RW...
