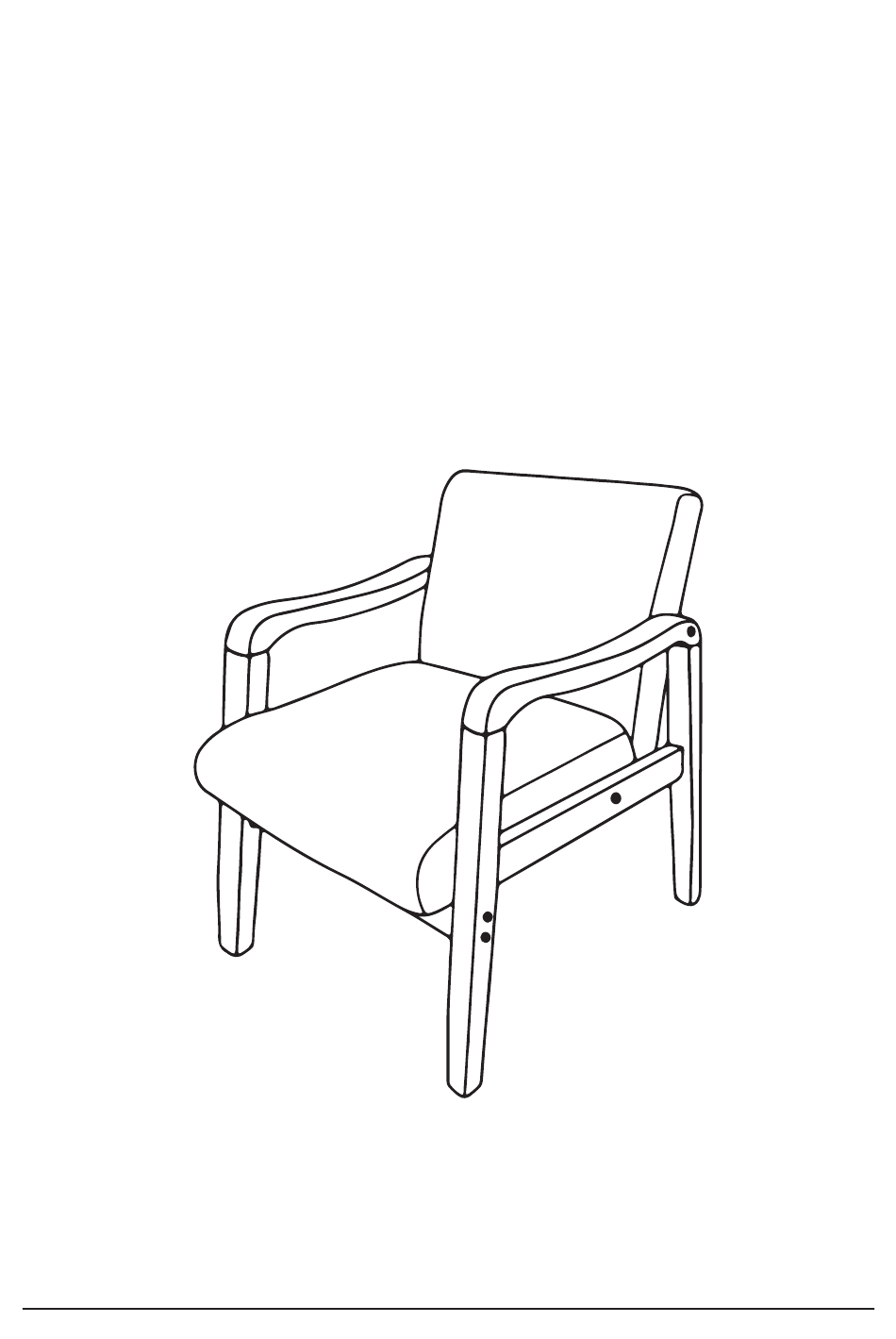

- Page 1 USER MANUAL ARMCHAIR ZH0419 ZH0420 Please read this manual carefully before assembly and keep it properly...
-
Page 2: Safety And Warnings
SAFETY & WARNINGS Warning ・ Do not put HOT items directly on the furniture surface. ・ Do not clean the furniture with HARSH cleansers or polish. ・ Do not place the furniture under DIRECT sunlight. ・ Do not place the furniture near heating or cooling vents. ・... -
Page 3: Part List
PART LIST Label Picture Description Seat Back Seat Front Bar Hex Wrench Screw Hex Nut Spanner Set Screw Washer 02/06... - Page 4 ASSEMBLY Step 1: Place the seat back (A) on a flat surface, attach the seat (B) to the seat back (A) by inserting washers (L) and hex nuts (I) and set screws (K) into the bolts under the seat. And secure with the spanner (J). 03/06...
- Page 5 ASSEMBLY Step 2: Attach the legs (C&D) together by securing screws (H) and nuts (G) into the bolts at both ends of the front bar (E). 04/06...
- Page 6 ASSEMBLY Step 3: Press the seat (B) and the back (A) down on the frame. Insert and tighten the screws (H) into the bolts on both sides of the legs. 05/06...
- Page 7 ASSEMBLY Step 4: Assembly complete. 06/06...
