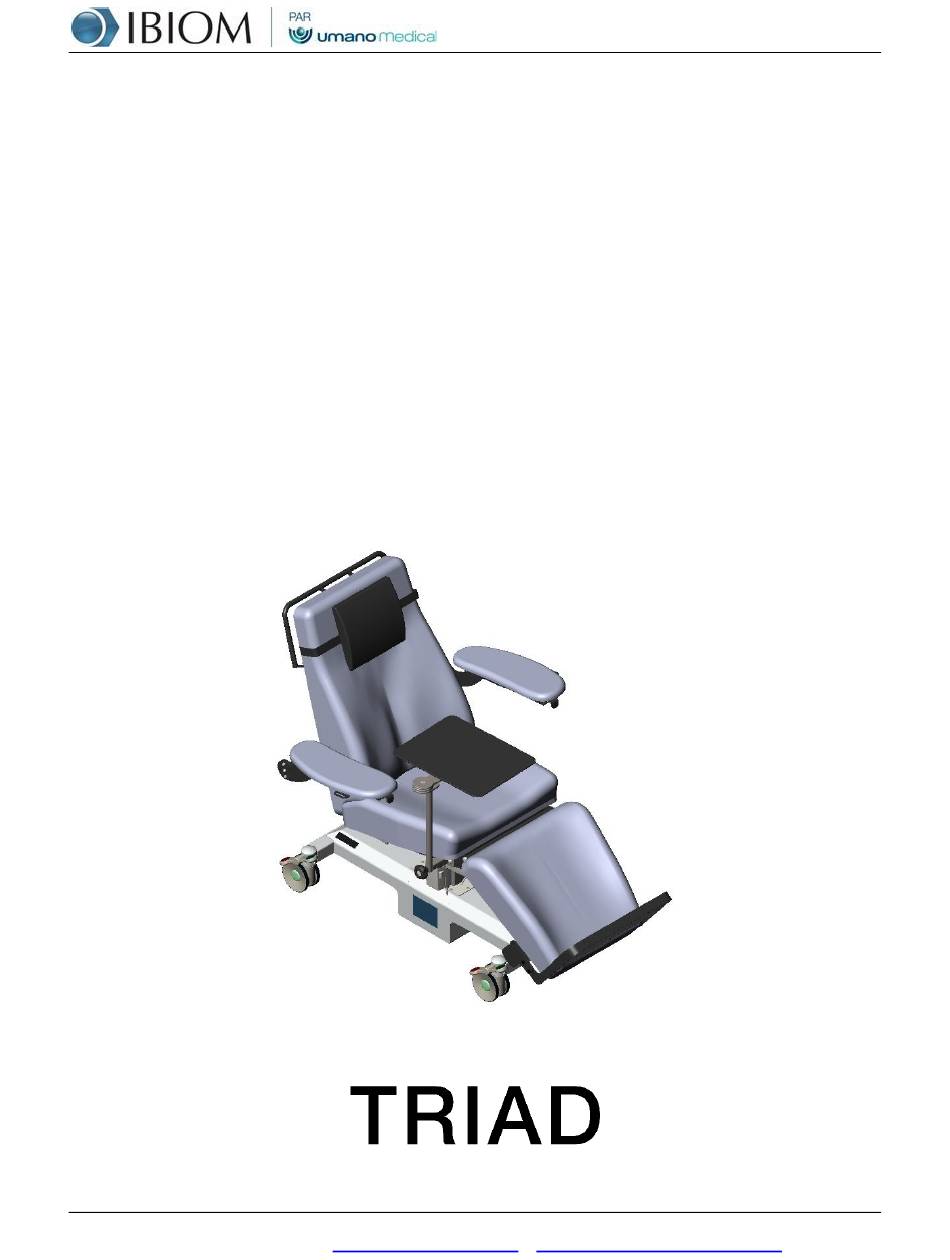

- Page 1 OPERATION MANUAL-TRIAD™ OPERATION MANUAL Revision: R1 Serial # 1000089 and + ELECTRIC TREATMENT CHAIR DIALYSIS/ONCOLOGY TRIAD , 230, boul. Nilus-Leclerc, L’Islet, QC, G0R 2C0, Canada Umano Medical Inc. Tél.: 1-877-247-7494 ● ● www.umanomedical.com information@umanomedical.com...
-
Page 2: Table Of Contents
OPERATION MANUAL-TRIAD™ TABLE OF CONTENTS TO CONTACT US ......................3 INTENDED USE ........................ 4 SYMBOLS ......................... 4 WARNINGS ........................5 LABEL ..........................7 OPERATING INSTRUCTIONS ..................8 6.1 S ..................... 8 ETTING UP THE CHAIR 6.2 C ................10 ENTRAL LOCK AND DIRECTIONAL CASTER 6.3 C... -
Page 3: To Contact Us
1. TO CONTACT US Before contacting us, make sure to have the following information ready: ➢ 7-digit serial number (example: 1234567). ➢ Model number or name (example: TRIAD). This information is available on the label located on the base of the chair. Phone... -
Page 4: Intended Use
OPERATION MANUAL-TRIAD™ 2. INTENDED USE The TRIAD chair is an electric chair that can be adjusted to different positions. It is designed to support a patient during a medical examination or procedure. It is intended to be used by qualified medical personnel in a medical environment, such as hospitals, clinics, and doctor’s offices. -
Page 5: Warnings
WARNING. Never use the central locking system to stop the chair while it is in motion. WARNING. Do not use the TRIAD chair for any purpose other than the intended use. WARNING. Do not modify this equipment without Umano Medical's authorization. - Page 6 OPERATION MANUAL-TRIAD™ WARNING. Keep all cables away from moving parts of the chair. WARNING. Do not move the chair by pulling on the hand control, the power supply cable, or any other cable. WARNING. Never use the chair if the power supply cable or any other cable is damaged.
-
Page 7: Label
OPERATION MANUAL-TRIAD™ 5. LABEL The product identification label is located on the product base. This image and the information contained herein are for reference purposes only. Symbol identification Name and address of the manufacturer Product name or number 7-digit serial number... -
Page 8: Operating Instructions
WARNING. Never exceed duty cycle of 2/18 (2 minutes ON and 18 minutes OFF). The TRIAD chair is delivered assembled and ready for use. The chair must be unpacked and inspected upon receipt to ensure that there has been no damage during transport. - Page 9 OPERATION MANUAL-TRIAD™ 2. Position the TRIAD chair in the desired location. IMPORTANT: Make sure you have enough space around the chair to avoid collisions between its surroundings in ALL POSITIONS. 3. Once in place, lock all wheels. 4. Remove any remaining packaging from the product. Example: Protective plastic on the hand control cable.
-
Page 10: Central Lock And Directional Caster
OPERATION MANUAL-TRIAD™ 6.2 Central lock and directional caster WARNING. Always lock casters before the patient sits in the chair. WARNING. Never use the central lock while the chair is in motion. WARNING. Do not move the chair by pulling on the hand control, the power supply cable, or any other cable. -
Page 11: Chair Adjustments
OPERATION MANUAL-TRIAD™ 6.3 Chair adjustments WARNING. Always ensure there is sufficient clearance around the chair before activating the various movements to avoid collisions with the surroundings and people. WARNING. Always lock casters before the patient sits in the chair. WARNING. Always lower the chair to its lowest position before the patient sits in the chair. - Page 12 OPERATION MANUAL-TRIAD™ Hand control lights Light Function Battery level light (BA16 battery in option) 3 full lights: 70% to 100% of capacity 2 full lights: 20% to 70% of capacity 1 flashing light: 0% to 20% of capacity 1 flashing light + beep sound: 10% or less of capacity...
-
Page 13: Armrest
OPERATION MANUAL-TRIAD™ 6.4 Armrest WARNING. Never exceed safe working load of 100lb or 45kg on TRIAD’s armrests. This load includes the weight of the patient and the accessories (example: retractable side shelf). WARNING. Never exceed safe working load of 10lb or 4.5kg on TRIAD’s retractable side table. - Page 14 OPERATION MANUAL-TRIAD™ Swivel armrest WARNING. Always ensure that the armrest rotation is locked in the closed position once the patient is in the chair. 1. Push and hold the lever. 2. Rotate the armrest to the desired position and release the lever.
- Page 15 OPERATION MANUAL-TRIAD™ Raising armrest WARNING. Always ensure that the armrest rotation is locked in the closed position once the patient is in the chair. Each armrest can be lifted except with certain options. (Closing plate or retractable shelf on the armrest) In these cases, the armrest is locked for safety reasons.
-
Page 16: Emergency Position - Electrical
OPERATION MANUAL-TRIAD™ 6.5 Emergency position - electrical WARNING. Do not use TRIAD chair as a transport stretcher to move the patient from one room to another or one floor to another. WARNING. Always ensure there is sufficient clearance around the chair before activating the various movements to avoid collisions with the environment, equipment and people. -
Page 17: Shelf
OPERATION MANUAL-TRIAD™ 6.6 Shelf WARNING. Never exceed safe working load of 25lb or 11kg on TRIAD’s side table. WARNING. Always ensure that side shelf mechanism is solidly tighten before the patient is placed in the chair. WARNING. Always take appropriate measures to avoid injuries when handling accessories (shelf, armrest, mini exercise bike, ect.). -
Page 18: Retractable Shelf
OPERATION MANUAL-TRIAD™ 6.7 Retractable shelf WARNING. Never exceed the safe working load of 10lb or 4.5kg on TRIAD retractable shelf. 1. Lift the shelf slightly. 2. Gently fold the shelf. © Copyright Umano Medical Inc. 2023 Page 18 of 31... -
Page 19: Rechargeable Battery
OPERATION MANUAL-TRIAD™ 6.8 Rechargeable battery WARNING. Never exceed duty cycle of 2/18 (2 minutes ON and 18 minutes OFF). WARNING. Defective or damaged batteries may leak acid and proper precautions must be taken during handling and transportation. WARNING. Never open the battery case, as the cell or circuit may be damaged and excessive heat may develop. -
Page 20: Emergency Foot Switch
OPERATION MANUAL-TRIAD™ 6.9 Emergency foot switch WARNING. Always ensure there is sufficient clearance around the chair before activating the various movements to avoid collisions with the environment, equipment and people. WARNING. Avoid placing hands and other body parts near moving parts when the chair is adjusted. -
Page 21: Cleaning Instructions
OPERATION MANUAL-TRIAD™ 7. CLEANING INSTRUCTIONS WARNING. Always clean chair between patient to avoid contamination. WARNING. Clean chair immediately after spillage of bodily or other fluids. WARNING. Protect mattress cover from sharp and rough objects to avoid damaging it. WARNING. Always inspect mattress to ensure its integrity. A damaged mattress can absorb contaminated liquids. -
Page 22: Cleaning Procedure
OPERATION MANUAL-TRIAD™ 7.2 Cleaning procedure Procedure for effective cleaning of surfaces and openings. 1. Lower the backrest completely. 2. Lower the leg section completely. 3. Clean all cushion surfaces, including surfaces in openings between the backrest and seat and those between the seat and leg section. IMPORTANT: Allow the surfaces to dry before raising the backrest or leg section. -
Page 23: Specifications
OPERATION MANUAL-TRIAD™ 8. SPECIFICATIONS 8.1 Technical data Width without armrest 24 in / 61 cm Width with armrest 38 in / 97 cm Length in prone position 77 in / 196 cm Length in sitting position 60 in / 152 cm... -
Page 24: Electrical Specifications
OPERATION MANUAL-TRIAD™ 8.2 Electrical specifications Volt 120 VAC, alternating current Amperage 3.9A Actuators 24 VDC, direct current Frequency 60 Hz Hospital-grade plug Electrical protection Class II Applied part Type B Battery type (option) Rechargeable sealed lead acid Battery capacity (option) 1.3 Ah... -
Page 25: Certification
OPERATION MANUAL-TRIAD™ 8.4 Certification CSA SPE 3000 This product is certified according to standards for electrical medical equipment unless otherwise specified. Label is located on the base of the product. © Copyright Umano Medical Inc. 2023 Page 25 of 31... -
Page 26: Warranty
OPERATION MANUAL-TRIAD™ 9. WARRANTY The Umano Medical treatment chairs are designed for a 10-year service life under normal use, conditions, and with periodic maintenance as recommended in Maintenance Manual. Shipment receipt The purchaser should examine the shipment upon receipt. Umano Medical must be notified by the purchaser within 30 days of invoice of any short shipment, or any order-mistake. -
Page 27: Waste Disposal
OPERATION MANUAL-TRIAD™ 10. WASTE DISPOSAL WARNING. Before disposal, clean equipment properly to avoid contamination. WARNING. Disposal of this equipment should only be done by qualified personnel. WARNING. This equipment contains electronic components that may cause environmental damage. Please dispose of it properly in accordance with the regulations in force in your region. -
Page 28: Maintenance
OPERATION MANUAL-TRIAD™ 11. MAINTENANCE See the service manual. © Copyright Umano Medical Inc. 2023 Page 28 of 31 904-9001-ENG R1... -
Page 29: Troubleshooting
OPERATION MANUAL-TRIAD™ 12. TROUBLESHOOTING Verification Cause Corrective action Connect the equipment to a wall socket. Once plugged in, try the movements. If the No green lights on the problem persists, go to the hand control next cause. If the problem is... -
Page 30: Spare Parts
OPERATION MANUAL-TRIAD™ 13. SPARE PARTS See the service manual. © Copyright Umano Medical Inc. 2023 Page 30 of 31 904-9001-ENG R1... - Page 31 OPERATION MANUAL-TRIAD™ UMANO MEDICAL INC. 230, BOUL NILUS-LECLERC L’ISLET, QC G0R 2C0 CANADA T: (418) 247-3986 T: (877) 247-7494 www.ibiom.com © Copyright Umano Medical Inc. 2023 Page 31 of 31 904-9001-ENG R1...
