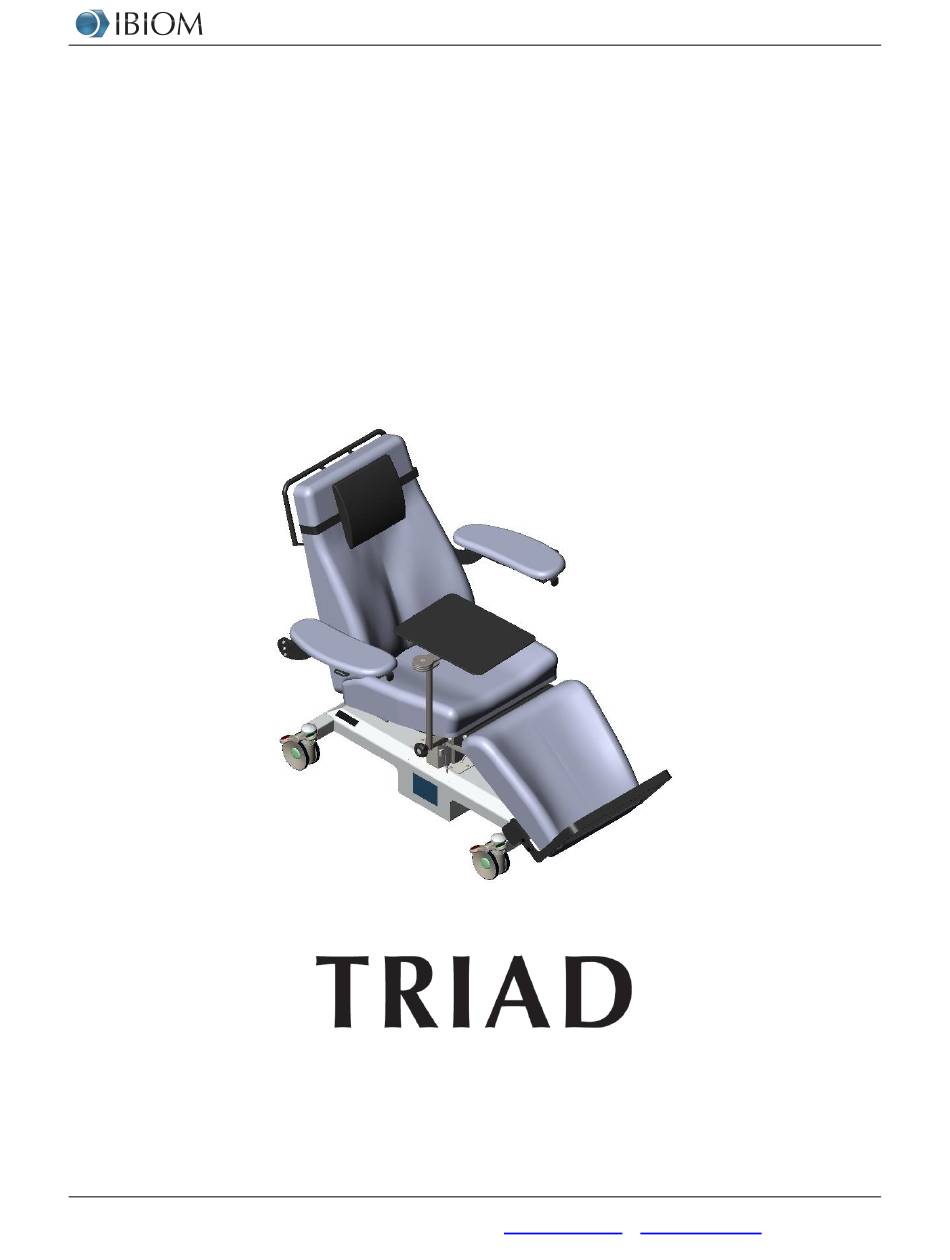

- Page 1 OPERATION MANUAL-TRIAD™ OPERATION MANUAL Revision: January 2021 MOTORISED TREATMENT CHAIR IBIOM Instruments Ltd, 670 Joseph-Louis-Mathieu Street, Sherbrooke, Quebec, J1R 0X3 Tel.: 1-877-563-5777 ● Fax: 450-445-9837 ● ● www.ibiom.com info@ibiom.com...
-
Page 2: Table Of Contents
8.4 C .......................24 ERTIFICATION LIMITED LIFETIME WARRANTY ..................25 10. WASTE DISPOSAL ......................26 11. MAINTENANCE ........................27 12. TROUBLESHOOTING ......................28 13. SPARE PARTS .........................29 IBIOM Instruments Ltd, 670 Joseph-Louis-Mathieu Street, Sherbrooke, Quebec, J1R 0X3 Tel.: 1-877-563-5777 ● Fax: 450-445-9837 ● ● www.ibiom.com info@ibiom.com... -
Page 3: Contact Us
1. CONTACT US Before contacting us, make sure to have the following information ready: ➢ 7-digit serial number (example: 1234567). ➢ Model number or name (example: TRIAD). This information is available on label located on base of the chair. Phone... -
Page 4: Intended Use
OPERATION MANUAL-TRIAD™ 2. INTENDED USE TRIAD chair is AC powered treatment chair that can be adjusted to different position. It is used to support the patient during medical examination or procedure. It is intended to be operated by healthcare professional in a medical environment including hospitals, clinics and doctor’s office. -
Page 5: Warnings
WARNING. Always lock wheels before the patient is placed in the chair. WARNING. Never use braking system to stop a moving chair. WARNING. Do not use TRIAD chair for any purpose other than the intended use. WARNING. Do not modify this equipment without IBIOM's authorization. - Page 6 WARNING. Defective or damaged batteries may leak acid and adequate precautions must be taken during handling and transportation. WARNING. Do not open the battery case as damage to the cell or circuitry may develop excessive heat. © Copyright IBIOM Instruments ltd 2021 Page 6 of 30 Revision: January 2021...
-
Page 7: Label
Double electrical insulation Obligation to read the operation manual Required voltage (120V), alternating current Frequency (60Hz), max amperage (3.9A) Maximum activation time followed by minimum deactivation time © Copyright IBIOM Instruments ltd 2021 Page 7 of 30 Revision: January 2021... -
Page 8: Operation Instructions
WARNING. Never exceed duty cycle of 2/18 (2 minutes ON and 18 minutes OFF). TRIAD chair is delivered assembled and ready for use. The chair must be unpacked and inspected upon receipt to ensure that there has been no damage during transport. - Page 9 OPERATION MANUAL-TRIAD™ 2. Position TRIAD chair in the desired position. IMPORTANT: Make sure you have enough space around the chair to avoid collisions between its surroundings in ALL POSITIONS. 3. Once in place, lock all wheels. 4. Remove any remaining packaging from the product. Example: Protective plastic on the hand control cable.
-
Page 10: Central And Direction Lock
Red: all 4 casters are locked; • Neutral: all casters unlocked and free to roll; • Green: 1 caster at foot end locks in direction and 3 others remain free. © Copyright IBIOM Instruments ltd 2021 Page 10 of 30 Revision: January 2021... -
Page 11: Chair Functions
Lower chair Raise leg section Lower leg section Raise footrest Lower footrest Simultaneous movements: raise backrest and lower leg section. Simultaneous movements: lower backrest and raise leg section. © Copyright IBIOM Instruments ltd 2021 Page 11 of 30 Revision: January 2021... -
Page 12: Armrest
OPERATION MANUAL-TRIAD™ 6.4 Armrest WARNING. Never exceed safe working load of 100lb or 45kg on TRIAD’s armrests. Safe working load includes patient’s weight and accessories (optional retractable side table for example). WARNING. Never exceed safe working load of 10lb or 4.5kg on TRIAD’s retractable side table. - Page 13 WARNING. Always ensure that the rotation of the armrest is locked in the closed position once the patient is in place on the chair. 1. Push and hold lever. 2. Rotate armrest to desired position and release lever. © Copyright IBIOM Instruments ltd 2021 Page 13 of 30 Revision: January 2021...
- Page 14 Each armrest can be lifted. Lifting may be locked with combination of some options. 1. Hold armrest underneath. 2. Raise armrest until it stops to its raised position. No locking system is required. © Copyright IBIOM Instruments ltd 2021 Page 14 of 30 Revision: January 2021...
-
Page 15: Emergency Position - Electrical
OPERATION MANUAL-TRIAD™ 6.5 Emergency position - electrical WARNING. Do not use TRIAD chair as a transport stretcher to move the patient from one room or floor to another. WARNING. Always ensure there is sufficient clearance around the chair before activating the various movements to avoid collisions with the environment, equipment and people. -
Page 16: Side Table
OPERATION MANUAL-TRIAD™ 6.6 Side table WARNING. Never exceed safe working load of 25lb or 11kg on TRIAD’s side table. WARNING. Always ensure that side table mechanism is tighten solidly before the patient is placed in the chair. WARNING. Take appropriate precautions to avoid injury when handling accessories (arms and side table). -
Page 17: Retractable Side Table
OPERATION MANUAL-TRIAD™ 6.7 Retractable side table WARNING. Never exceed safe working load of 10lb or 4.5kg on TRIAD’s retractable side table. 1. Slightly lift side table. 2. Fold side table gently. © Copyright IBIOM Instruments ltd 2021 Page 17 of 30... -
Page 18: Rechargeable Battery
It is possible to use battery while it is plugged to wall outlet without any risk of damage. • When battery level is low and needs to be charged, it will emit audible signal. © Copyright IBIOM Instruments ltd 2021 Page 18 of 30 Revision: January 2021... -
Page 19: Emergency Foot Switch
(Trendelenburg). 2. To straighten the backrest and lower the leg section simultaneously, press the pedal displaying the positive symbol. © Copyright IBIOM Instruments ltd 2021 Page 19 of 30 Revision: January 2021... -
Page 20: Cleaning Instructions
• Always follow manufacturer’s cleaning products instructions. • Clean spill as soon as possible to prevent penetration and becoming a permanent stain. © Copyright IBIOM Instruments ltd 2021 Page 20 of 30 Revision: January 2021... -
Page 21: Cleaning Procedure
5. Clean the pillow all around and underneath. 6. Clean all parts that may be contaminated and/or that are in contact with the patient, such as side table, handles, closure plates, chair base, etc. © Copyright IBIOM Instruments ltd 2021 Page 21 of 30 Revision: January 2021... -
Page 22: Specifications
• NFPA 260 • UFAC Class 1 IBIOM Instruments Ltd. reserves the right to change specifications without notice. 1 May vary depending on options. 2 If cleaning instructions are followed. © Copyright IBIOM Instruments ltd 2021 Page 22 of 30... -
Page 23: Electrical Specifications
Hand control : IPX6 Foot switch : IPX6 Battery : IPX4 Duty cycle Intermittent 2/18 Max 2 minutes on 18 minutes off IBIOM Instruments Ltd. reserves the right to change specifications without notice. 8.3 Environmental conditions Conditions Temperature Relative humidity Pressure Normal condition... -
Page 24: Certification
8.4 Certification All IBIOM's treatment chairs are certified according to CSA standard for electrical medical device except contrary indication. Label is located on the base of the product. © Copyright IBIOM Instruments ltd 2021 Page 24 of 30 Revision: January 2021... -
Page 25: Limited Lifetime Warranty
OPERATION MANUAL-TRIAD™ 9. LIMITED LIFETIME WARRANTY IBIOM instruments ltd has a lifetime warranty for all their products against all manufacturing defects under normal operating conditions as described in manual. These following components are excluded from this lifetime warranty: mattresses, retractable rod mechanisms, brake mechanisms, armrest mechanisms, wheels and all mobile parts. -
Page 26: Waste Disposal
MATERIAL GROUP Actuators, lifting column, control box, controls, cables and other Electronic electronic components Metal structure Metal Battery pack Batteries Plastic parts Plastic Mattress Foam, textiles, wood © Copyright IBIOM Instruments ltd 2021 Page 26 of 30 Revision: January 2021... -
Page 27: Maintenance
OPERATION MANUAL-TRIAD™ 11. MAINTENANCE See service manual. © Copyright IBIOM Instruments ltd 2021 Page 27 of 30 Revision: January 2021... -
Page 28: Troubleshooting
Make sure there is power in control box. the electrical outlet. If the Wall outlet is defective. problem persists, the control box is defective. © Copyright IBIOM Instruments ltd 2021 Page 28 of 30 Revision: January 2021... -
Page 29: Spare Parts
OPERATION MANUAL-TRIAD™ 13. SPARE PARTS See service manual. © Copyright IBIOM Instruments ltd 2021 Page 29 of 30 Revision: January 2021... - Page 30 OPERATION MANUAL-TRIAD™ IBIOM INSTRUMENTS LTD 670 JOSEPH-LOUIS-MATHIEU STREET SHERBROOKE, QUEBEC J1R 0X3 CANADA www.ibiom.com © Copyright IBIOM Instruments ltd 2021 Page 30 of 30 Revision: January 2021...
