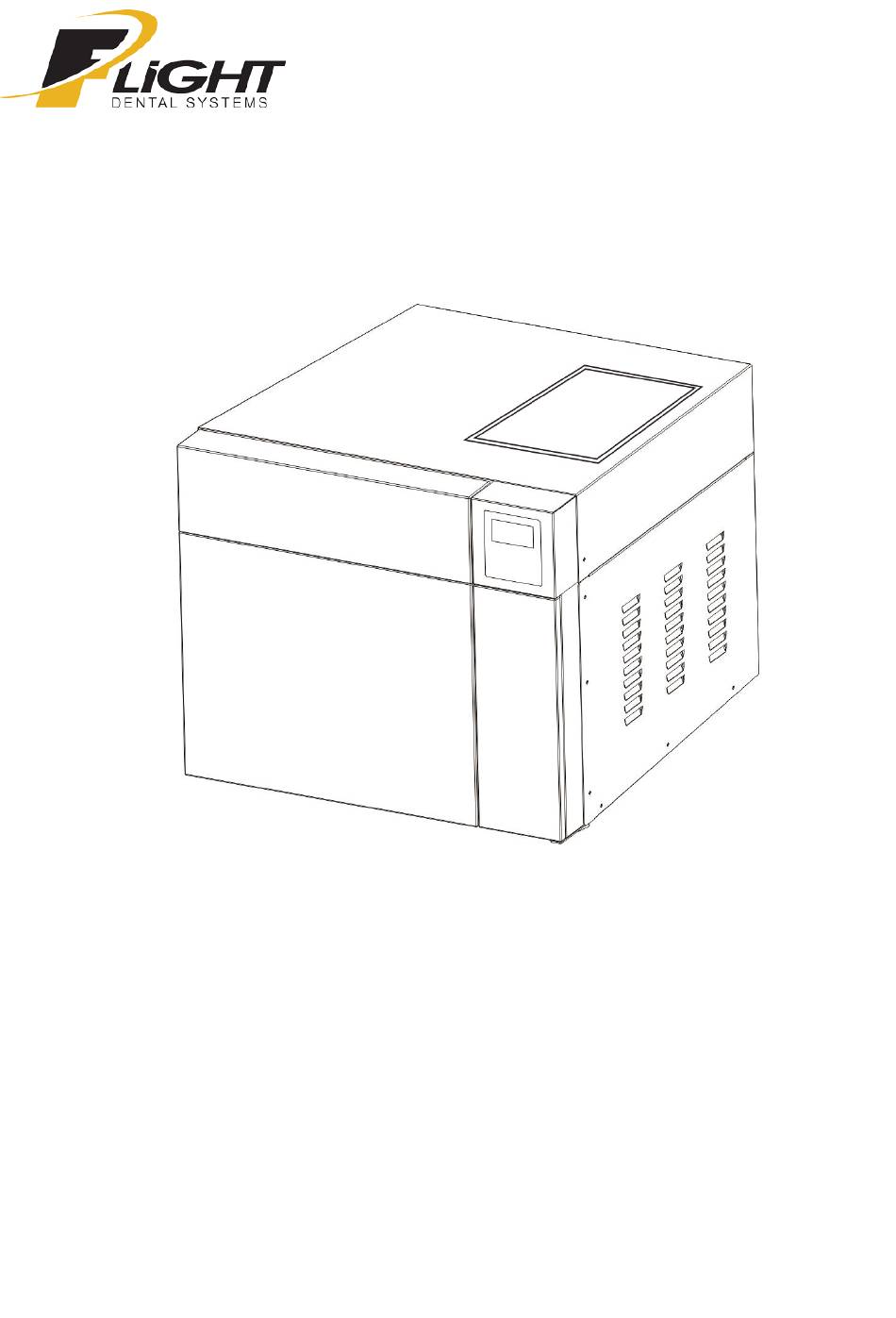

- Page 1 STEAM STERILIZERS Instruction Manual For Model: Clave45+...
- Page 2 Clearing Error Code Clear Error Code by Pressing and holding the button. This must be done before running a new cycle. Canadian Representative HR Dental Products Inc. o/a Flight Dental Systems 21 Kenview Blvd, Unit 11 Brampton, ON, L6T5G7 CANADA Document: Version 00K20000 v2.9.1...
-
Page 3: Table Of Contents
Table of Contents 1 General ..................................1 1.1 Scope of Manual ..............................1 1.2 Intended Use ................................ 1 1.3 General Safety Instructions ..........................1 1.4 Standards and directives ............................1 1.5 Symbols ................................2 2. Description of the sterilizer ............................2 2.1 Sterilizer View .............................. - Page 4 6.7 Factory reset ..............................11 7.0 Maintenance ................................12 7.1 Clean the Distilled Water Tank ........................... 12 7.2 Replacement of the Bacteria Filter........................12 7.3 Clean Chamber, Door Seal, Trays and Tray Rack....................12 7.4 Door adjustment ..............................13 7.5 Replacement of the Door seal ...........................
-
Page 5: General
Instruction Manual 1 General 1.1 Scope of Manual This manual contains information concerning the installation, operation and maintenance of the CLAVE45+ steam sterilizer. To ensure proper performance of the sterilizer, the instructions given in this manual should be thoroughly understood and followed. Keep the manual in an accessible location for future reference. -
Page 6: Symbols
Instruction Manual 1.5 Symbols For safe operation, please pay close attention to the alert symbols below which can be found in the sterilizer or throughout this manual. This is an electrical caution symbol - ground protection. Hot Surface This symbol represents a warning of a potential hot surface. Important safety information. -
Page 7: Control Panel
Instruction Manual 2.2 Control panel Temperature of the cycle Program Holding time Pressure Fill distilled water tank Drain used water tank Printer is connected Door is opened Door is closed Door is locked Time Current temperature Up button Down button Enter button Menu button 2.3 Technical specifications... -
Page 8: Installation
Instruction Manual 3. Installation 3.1 General conditions Position the device on a flat surface with a minimum capacity of 120 kgs. The sterilizer should be placed on a level worktable. Improper water level in the chamber could cause a sterilizer malfunction. Leave at least 10cm between the back of the device and the wall. -
Page 9: Basic Set
Instruction Manual 4.1 Basic Set The “Basic Set” Menu permits the following options to be set: Program *Date *Time *Language Basic Set Select the “Basic Set” from the main menu and press button. Report Select the item by pressing the button. -
Page 10: Operation
Instruction Manual 5. Operation 5.1 Select the program Press the button to get to the main menu, select “Program”. You will see the available sterilization programs. See Appendix 2. Program Unwrapped(134℃) Basic Set Wrapped(121℃) Wrapped(134℃) Report Prion(134℃) Label Highlight the program by pressing the buttons and select the desired program by pressing the button. -
Page 11: Manually Abort Cycle
Instruction Manual 5.5 Manually Abort Cycle It is possible to stop a cycle after it has been started. If you need to stop a cycle and remove the items urgently, you may hold the button for 3 seconds at any time to stop the cycle. If you interrupt a cycle before it reaches the “Drying”... - Page 12 Instruction Manual ================================ Program: Wrapped Temperature: 134 C Pressure: 204 kPa Drying Time: 2.0 MIN Holding Time: 04.0 MIN -------------------------------- Time Temp. Pressure HH:MM:SS Start 11:38:02 028.2 002.5 11:50:46 115.9 081.0 11:51:17 107.2 020.6 11:51:29 111.0 058.8 11:51:52 107.3 020.1 11:52:26 112.8 069.3 11:52:52 107.5 020.1 11:57:47 134.5 211.9...
-
Page 13: Label(Optional)
Instruction Manual 5.9 Label(Optional) 5.9.1Connect the label printer and switch on. 5.9.2 Select the “Label” and press button, you will see the list of the records. Quantity 5.9.3 Highlight the cycle by pressing the button. 5.9.4 Press the button to select the quantity. 5.9.5 Change the quantity of the label that you want to print by pressing the button. -
Page 14: Advance Setting
Instruction Manual 6. Advance setting The advance setting interface allows you to set the following options: *Parameter: Allows the change of the holding time and drying time. *Unit: Allows the change of the unit of measure temperature and pressure. *Preheat: The Preheat will maintain the temperature of the chamber heater and steam generator to allow for the cycle to start when needed. -
Page 15: Expiry Date
Instruction Manual Month: 03 6.4 Expiry date Select the “Expiry date” to adjust the expiry date to be printed on the label. Press the button to enter the menu. Adjust the value by pressing the button. The range is 1-12. Press button to save and exit. -
Page 16: Maintenance
Instruction Manual 7.0 Maintenance To assure proper operation and maximum autoclave life, carefully follow all recommendations for periodic maintenance. One of the MOST important steps you can take to prevent problems with your sterilizer is to use ONLY distilled water. Frequency Number of cycles Maintenance operation... -
Page 17: Door Adjustment
Instruction Manual 7.4 Door adjustment Under normal circumstances the chamber door does not require adjustments. However, it may become loose overtime and adjustments may be required. 7.4.1 Open the door. 7.4.2 Pull the lever at the bottom of the door to unlock the mechanism. Tighten the door by rotate the door counter-clockwise. -
Page 18: Error Codes
Instruction Manual 8.0 Error codes Code Description Proposed solution Steam generator tempreture sensor Power off & run a new cycle error Contact your supplier if error persists Power off & run a new cycle Inner temperature sensor error Contact your supplier if error persists. Temperature sensor of the chamber Carefully ensure that the chamber wall is heated and wall error... -
Page 19: Transportation And Storage
Instruction Manual 9. Transportation and storage 9.1 Switch off the sterilizer before transportation or storage. 9.2 Pull out the plug. Let the machine cool down. 9.3 Drain the distilled water tank and the used water tank. Condition for transport and storage Temperature: -20°C ~ +50°C Relative humidity: ≤... - Page 20 Instruction Manual Appendix 1 Water properties / Characteristics Description Feed water Condensate Evaporate residue ≤ 10mg/ I ≤ 1.0mg/kg Silicium oxide sio2 ≤ 1mg/ I ≤ 1.0mg/kg Iron ≤ 0.2mg/ I ≤ 0.1mg/kg Cadmiun ≤ 0.005mg/ I ≤ 0.05mg/kg Lead ≤...
-
Page 21: Diagrams Of The Sterilization Programs
Instruction Manual Appendix 2 Diagrams of the sterilization programs STE-45-T Programs Type Unwrapped 134 40-50 10.0 Unwrapped solid material Unwrapped porous material 55-75 Single-wrapped porous material Dual-wrapped porous material WRAPPED Single-wrapped hollow material 60-80 Dual-wrapped solid and hollow material Unwrapped porous material Single-wrapped porous material Dual-wrapped porous material PRION... - Page 22 Instruction Manual Wrapped Textile Solid Prion Liquid Drying...
-
Page 23: Wiring Diagram
Instruction Manual Appendix 3 Wiring diagram Thermal protector Chamber heater Steam generator heater Chamber heater Steam generator heater Label printer Water pump Vacuum pump Printer Port USB drive Tank Min. Level Public Tank Max. Level Printer power Used water tank Door lock switch Motor power Door unlock switch... -
Page 24: Hydraulic Diagram
Instruction Manual Appendix 4 Hydraulic diagram V1: Vacuum pump valve V2: Air filter valve V3: Water pump valve V4: Water release valve...
