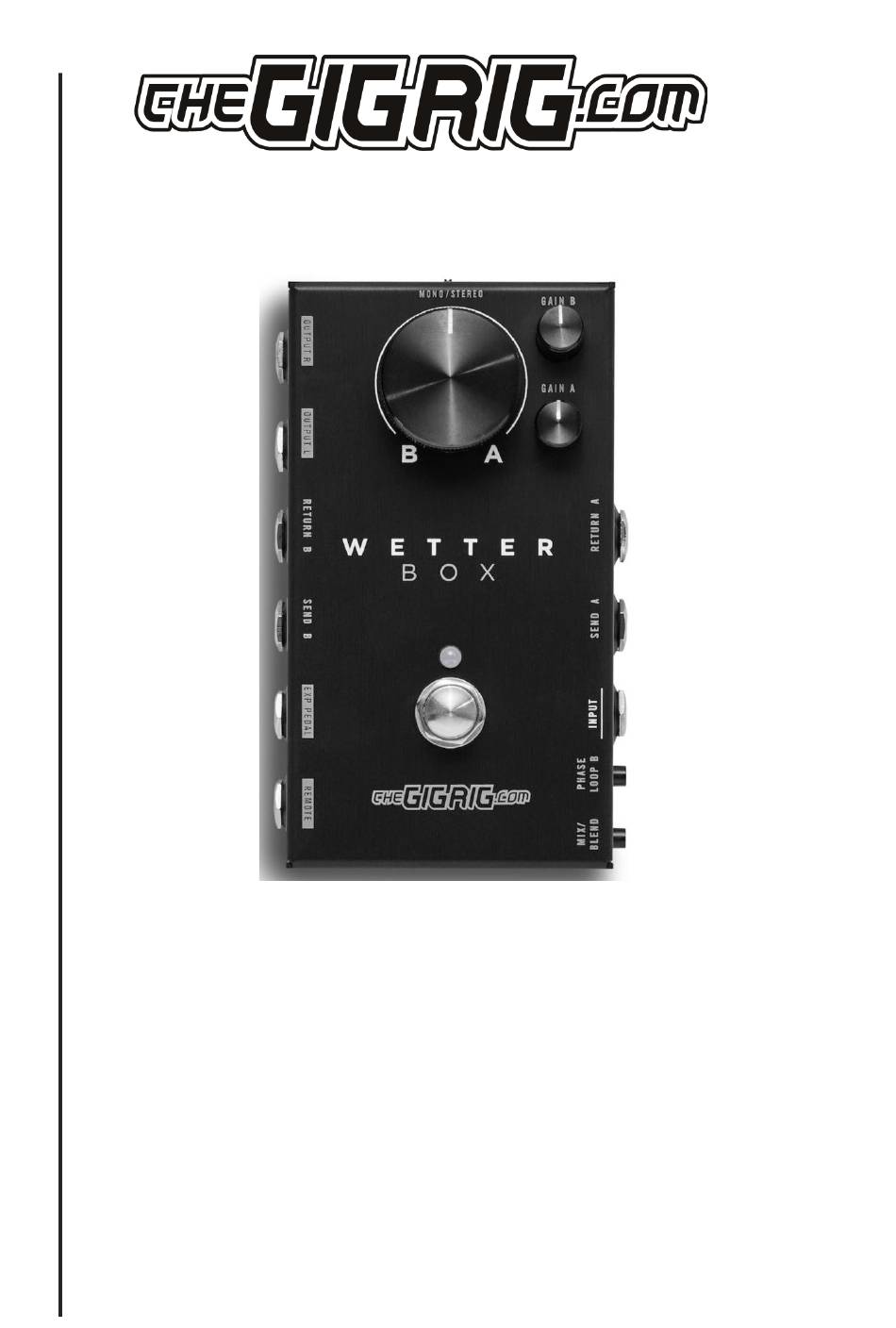

  • Page 1 WETTER BOX MANUAL TheGigRig Ltd Wetter Box Manual, February 2025...

  • Page 2: Table Of Contents

    4. Blending A Pedal In Parallel 5. Blending 2 Pedals Together 6. Phase Loop B 7. Connecting the Wetter Box to your Amps FX Loop 8. Using the Wetter Box in Stereo 9. MONO Send/ Stereo Return 10. True Bypass or Trails Mode 11.

  • Page 3: Introduction

    10 – MIX/ BLEND SELECT 11 – REMOTE SWITCH INPUT 12 – EXPRESSION PEDAL INPUT 13 – EFFECTS LOOP B SEND 14 – EFFECTS LOOP B RETURN 15 – OUTPUT LEFT (MONO) 16 – OUTPUT RIGHT (STEREO) TheGigRig Ltd Wetter Box Manual, February 2025...

  • Page 4: Glossary

    2. Glossary INPUT MONO/STEREO: If your INPUT to the Wetter Box is Mono, set the switch to MONO. If your signal path is stereo (using a TRS cable), set to STEREO. MAIN INPUT: Connect your guitar here (if using STEREO, use a TRS Cable).

  • Page 5: How It Works

    How the Wetter Box Works: The signal enters the Wetter Box through the main INPUT. • The signal is then split into two separate signals.

  • Page 6: Blending A Pedal In Parallel

    • Note: In standard MONO operation, signal will only come from OUTPUT L. 2. Connecting an Effects Pedal: Plug your effects pedal (e.g. an analog delay) into LOOP B of the Wetter Box. • 3. Using the MIX CONTROL: Set the MIX CONTROL to A to hear only your direct signal.

  • Page 7: Blending 2 Pedals Together

    3. Set the MIX CONTROL fully to A (100% LOOP A, 0% LOOP B). 4. Toggle the Wetter Box on and off, adjusting GAIN A until the level matches the bypassed signal. 5. Turn the MIX CONTROL fully to B and repeat the process for GAIN B.

  • Page 8: Phase Loop B

    Using the Phase & MIX Mode on the Wetter Box Phase Correction (PHASE LOOP B Button) On the side of the Wetter Box, you’ll find the PHASE LOOP B button. • When two signals are in phase, they combine properly, ensuring a full and •...

  • Page 9: Connecting The Wetter Box To Your Amps Fx Loop

    Why use a remote switch? • If you're running the Wetter Box in your amp’s FX loop, this feature eliminates the need for long audio • cable runs. Simply leave the Wetter Box near your amp and switch it on/off from your pedalboard.

  • Page 10: Using The Wetter Box In Stereo

    8. Using the Wetter Box in Stereo The Wetter Box is fully stereo-compatible, with a stereo signal path that includes stereo gain controls. How to Access Stereo Capabilities: Use TRS to Dual Mono connectors to split the stereo signal. •...
  • Page 11 To feed the Wetter Box with a true stereo signal, simply use a TRS to Dual Mono connector. Example: Using a Stereo Chorus Pedal 1. Connect the stereo output of your stereo chorus pedal to the TRS input on the Wetter Box using a TRS to Dual Mono connector.

  • Page 12: True Bypass Or Trails Mode

    The entire signal path is true stereo but you need to change the input switch on the Wetter Box from MONO to STEREO. 11. True Bypass or Trails Mode Bypass States: True Bypass & Trails Mode The Wetter Box offers two bypass states: True Bypass and Trails Mode.

  • Page 13: Using Delay/Echo Trails - Mono

    1. Turn on Trails Mode (indicated by the RED LED) and press the MIX mode button in. 2. Leave LOOP A empty to keep it as your direct signal. 3. Remember, in Trails Mode, the GAIN CONTROL for LOOP A is still active even when the Wetter Box is bypassed.

  • Page 14: Using Delay/Echo Trails - Stereo

    Purchasing the optional Wetter Box power supply from TheGigRig website, or Checking out TheGigRig Modular power solutions. If you’re already using TheGigRig Modular Power Supply, you can power the Wetter Box directly from a • Distributor since the power is internally isolated, meaning you don’t need a high-current adapter.

  • Page 15: Using The Wetter Box With G2 Or Quartermaster

    14. Using the Wetter Box with G2 or Quartermaster Integrating the Wetter Box with G2 Think of the Wetter Box as another effects pedal, with the sounds you create using it selected by including it in a loop on the G2 or Quartermaster.

  • Page 16: Technical Specification

    Output impedance = Source impedance Max output Level = Source Level Gain=0dB(V) Bypass – Trails mode: Bandwidth = 10Hz – 85KHz Output impedance = 27Ω Noise = 3nV/√Hz Max output Level = +/- 8.5V Gain=+6dB(V TheGigRig Ltd Wetter Box Manual, February 2025...

  • Page 17: Warranty

    In no event will The GigRig be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
