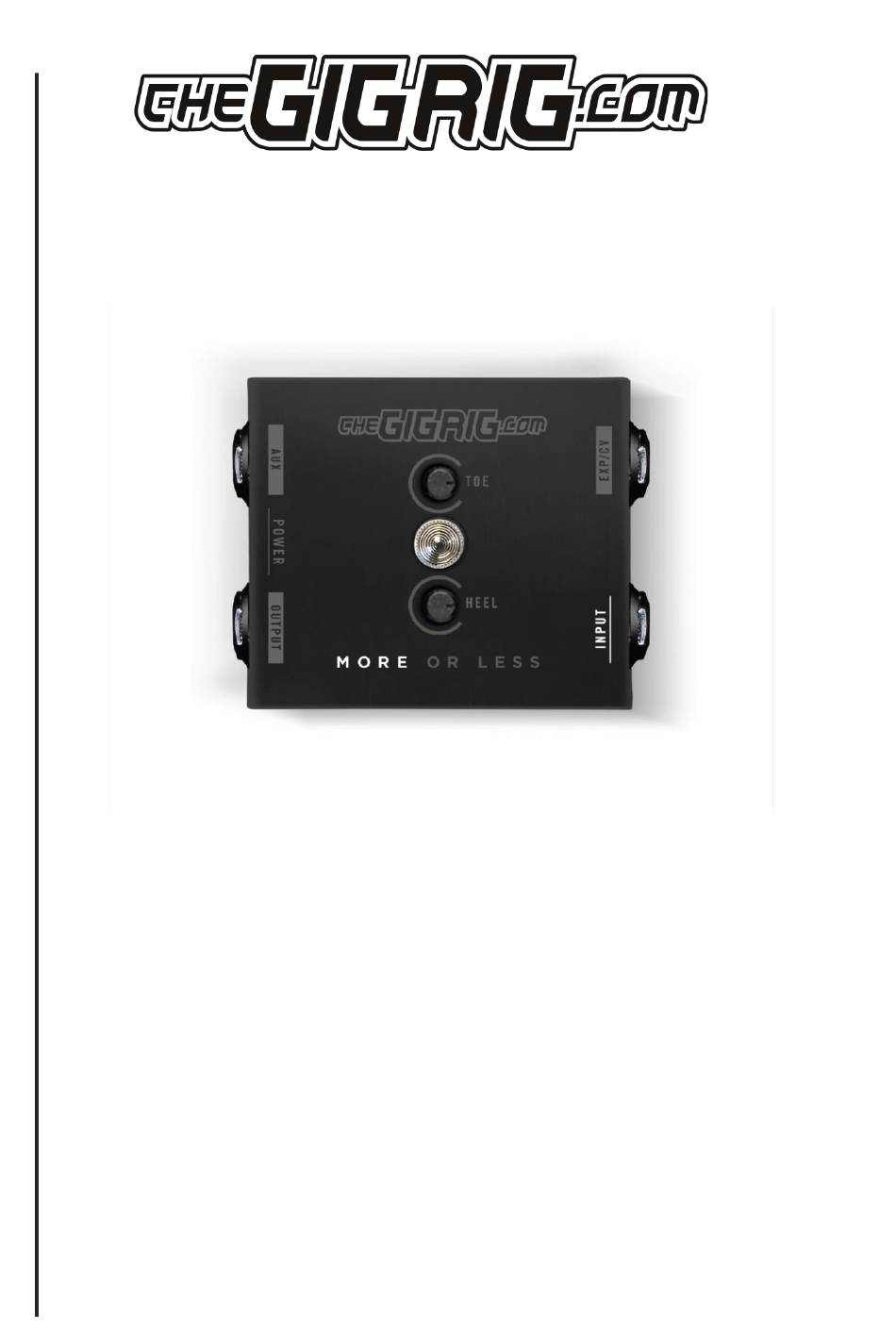

- Page 1 MORE OR LESS MANUAL TheGigRig More Or Less Manual Ltd June 2024...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. Connections 3. Using More or Less With An Expression pedal 4. Using More or Less with CV 5. Settings 6. Expression Pedal Curves 7. Expression Curve Switches 8. Signal Chain Examples 9. FAQ’s 10. Technical Specifications... -
Page 3: Introduction
POWER: Plug your 9V DC power in here. MORE OR LESS will operate on anything from 9 to 30V DC. PLEASE NOTE, using a supply higher that 9V will not give any more headroom. -
Page 4: Using More Or Less With An Expression Pedal
3. Using MORE OR LESS with an Expression Pedal Used with an expression pedal the More Or Less is turned into a remote volume pedal. There is no audio in the TRS cable connection between the expression pedal and the More Or Less so use long TRS cables with no fear of signal degradation. -
Page 5: Settings
5. Settings HEEL AND TOE The Heel and Toe values of More Or Less enable you to set up your expression pedal to work as either a standard volume pedal, a boost, an underdrive. As you sweep through the volume range with your expression pedal the LED indicator will let you know if you are boosting, attenuating or at unity. -
Page 6: Signal Chain Examples
2. AFTER GAIN STAGES, BEFORE DELAY Set up like this, More Or Less will act as a master volume control for gain stages so will not change the tone of your overdrives, but will control the input level into your time based effects, delays, reverbs. -
Page 7: Faqs
How do I bypass More Or Less? Simply unplug the TRS cable from the EXP input and More Or Less will be a high quality unity gain buffer. Can I change the curve of my expression pedal? Yes, via the EXP Curve switches on the bottom of the circuit board. - Page 8 In no event will The GigRig be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
