Summary of Contents for Global Telecom TITAN 5000

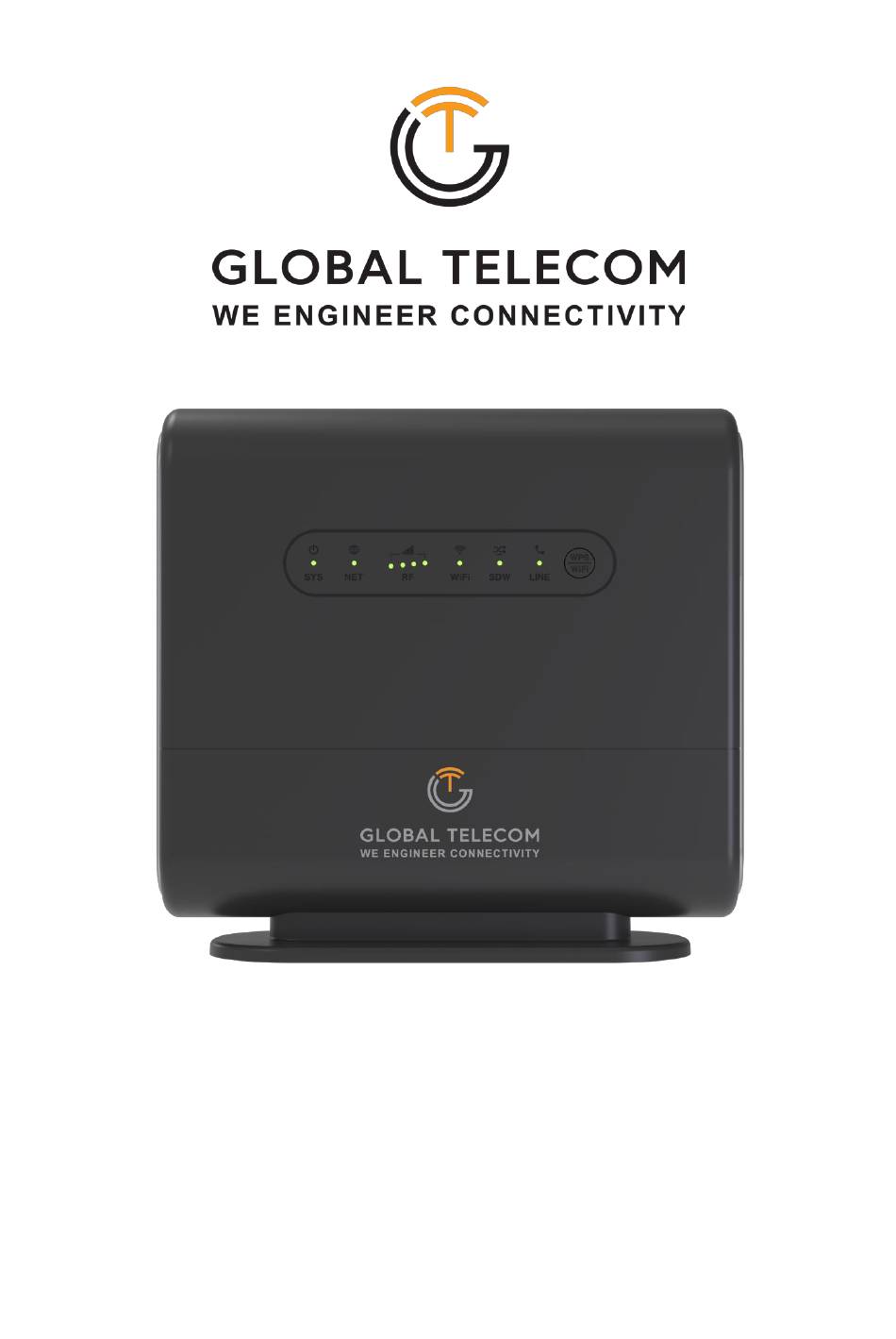

  • Page 1 Quick User Guide TITAN 5000...
  • Page 2 PLEASE READ THESE SAFETY PRECAUTIONS! FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules.
  • Page 3: Environmental Specification

     Device Package Device x 1 Power adapter x 1 Ethernet cable x 1 Quick user guide x 1  Device External Interface  Environmental Specification Feature Specs. Feature Specs. Operating temperature 0⁰F to 115⁰F Operating humidity 0 to 95% Storage temperature -10⁰F to 140⁰F Storage humidity 0 to 95%...
  • Page 4: Led Indicators

     LED Indicators LED Indicator Functions Description Blinking Green - Device is powered on & booting up. Blinking Orange - SIM card error. System Indicator Green - System is up and running. Orange - Device firmware upgrading. Green - 3G/4G network is up and operational. WAN Indicator Blue - 5G network is up and operational.
  • Page 5  Getting Your Device Ready for Connection Step 1 Insert the SIM CARD Before powering on the device, please insert the SIM card in the direction indicated on the back of the device. Step 2 Power on Connect your device to an available AC power outlet using the included power adapter. The device’s SYS LED indicator will change from blinking to sold green to indicate the device has completed the startup procedure.
  • Page 6: Web Login

     WEB Login It is recommended that you log in to the device by using a web browser from a PC that’s connected to the device’s LAN port. To log in, open a web browser and type http://192.168.0.1 in the address bar. A window will pop up requesting a password. Input the user login password and then click the “Login”...
  • Page 7: Quick Setup

     Quick Setup The equipment's management webpage integrates a user-friendly configuration guide page, allowing you to quickly configure the LAN interface, device WIFI, and device management password parameters in just 3 steps. Firstly, configure the LAN interface information to specify the device's management address.
  • Page 8: Firewall Control

     WPS The device integrates WPS function. When you need to use this function, please configure, and enable it according to the prompts on the page.  Firewall Control The device integrates basic firewall functions, as well as DMZ, port forwarding, UPnP and other functions.
  • Page 9: Firmware Update

     Firmware Update When you need to perform a software update on the device, you can find the software upgrade page in the device management page and select the upgrade file for the device according to the prompts on the page. The device upgrade operation supports the choice of whether to restore factory settings or not.
  • Page 10: Faq And Troubleshooting

     FAQ and Troubleshooting Problem Description Re-plug the PC Ethernet cable and check if PC LAN connection  is up or showing activity. Check if the SYS LED is on. If it is not, check the power cord and  make sure it is connected properly.
