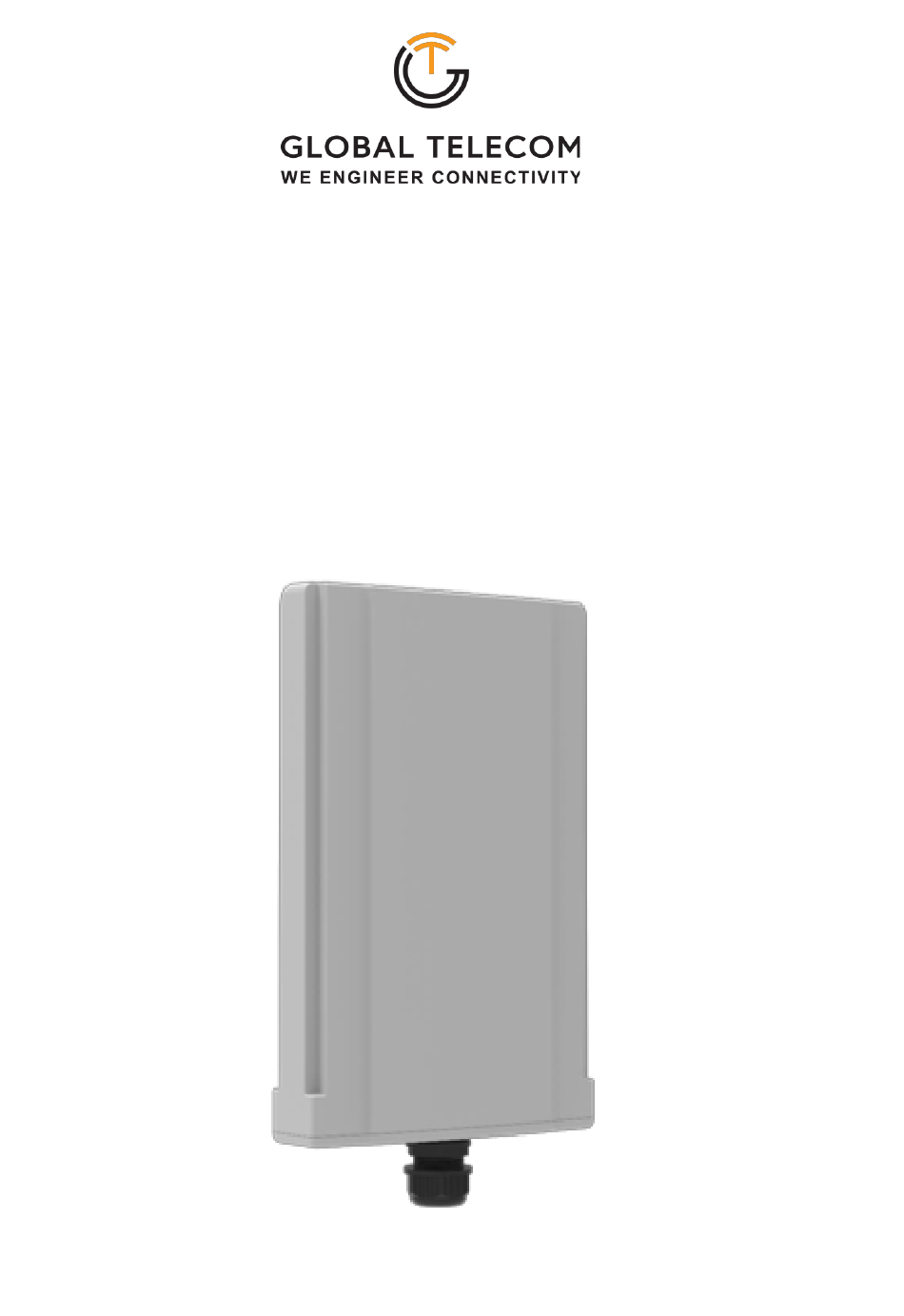

- Page 1 Quick Start Guide TITAN 5100 5G Window CPE V01.05.2024 © Global Telecom Engineering, Inc. 2023 All Rights Reserved | www.glob-tel.com...
- Page 2 • Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. TITAN 5100 5G WINDOW CPE | QUICK START GUIDE...
-
Page 3: User Interface Specification

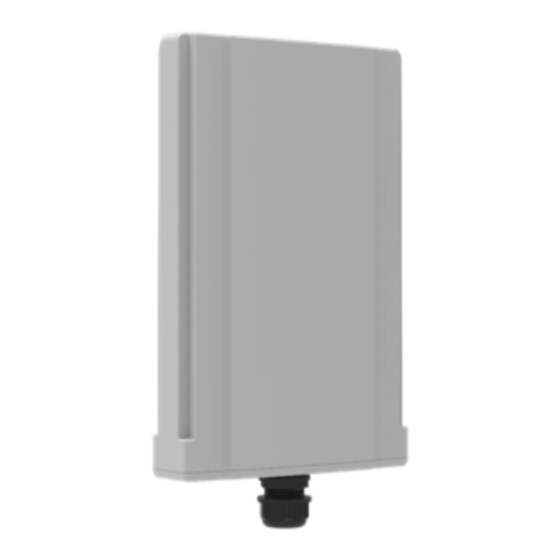

OVERVIEW The TITAN 5100 is highly innovative and patented 5G window & wall mounted CPE product designed to enable quick and easy 5G fixed data service deployment for residential and SOHO customers. It provides high speed LAN services to end users who need both bandwidth and multi-media data service in enterprise or home. -
Page 4: Installing The Equipment
INSTALLING THE EQUIPMENT Open the SIM card cover, insert the SIM card and connect the ETH cable. The user should use SFTP CAT5E Ethernet cable and connect to the appropriate LAN port. TITAN 5100 5G WINDOW CPE | QUICK START GUIDE... - Page 5 Clamp Poll Mounting Option (Preferred Method) Bracket Wall Mounting Option (3M Tape or Screw) TITAN 5100 5G WINDOW CPE | QUICK START GUIDE...
- Page 6 Suction Cap Window Mounting Option Connecting the Device TITAN 5100 5G WINDOW CPE | QUICK START GUIDE...
-
Page 7: Web Login
Input the user login password and then click the “Login” button. After successfully logging in, the default home page will appear. The default username is “user” and default password is “admin”. TITAN 5100 5G WINDOW CPE | QUICK START GUIDE... -
Page 8: Led Display
OFF – No wireless connection is established RF1: - 123dBm <= RSRP < -105dBm (4 Blue RF Signal Strength RF2: -105dBm <= RSRP < -95dBm RF3: -95dBm <= LEDs) RSRP < -85dBm RF4: -85dBm <= RSRP TITAN 5100 5G WINDOW CPE | QUICK START GUIDE... -
Page 9: Firewall Control
FIREWALL CONTROL The device integrates basic firewall functions, as well as DMZ, port forwarding, UPnP and other functions. Adjust the setting of these functions according to the needs of you web application. TITAN 5100 5G WINDOW CPE | QUICK START GUIDE... -
Page 10: Quick Setup
First, configure the LAN interface information to specify the device's management address Second, configure the WIFI SSID and password information, as well as whether the WPS function is enabled. Last, modify the devices management access password. TITAN 5100 5G WINDOW CPE | QUICK START GUIDE... -
Page 11: Hardware Reset
• Check and verify your computer has proper NIC interface configured (DHCP or static IP). Unplug the PC ETH cable and reconnect again if required. • If necessary, you may reboot the CPE by power off/on the CPE unit. TITAN 5100 5G WINDOW CPE| QUICK START GUIDE... -
Page 12: Firmware Update
The device upgrade operation supports the choice of restore factory settings or not. Please operate according to needs. MAINTENANCE The Advanced Setting page gives options to reset the device, restore factory default settings, and perform and restore operations for device configuration. TITAN 5100 5G WINDOW CPE | QUICK START GUIDE...
