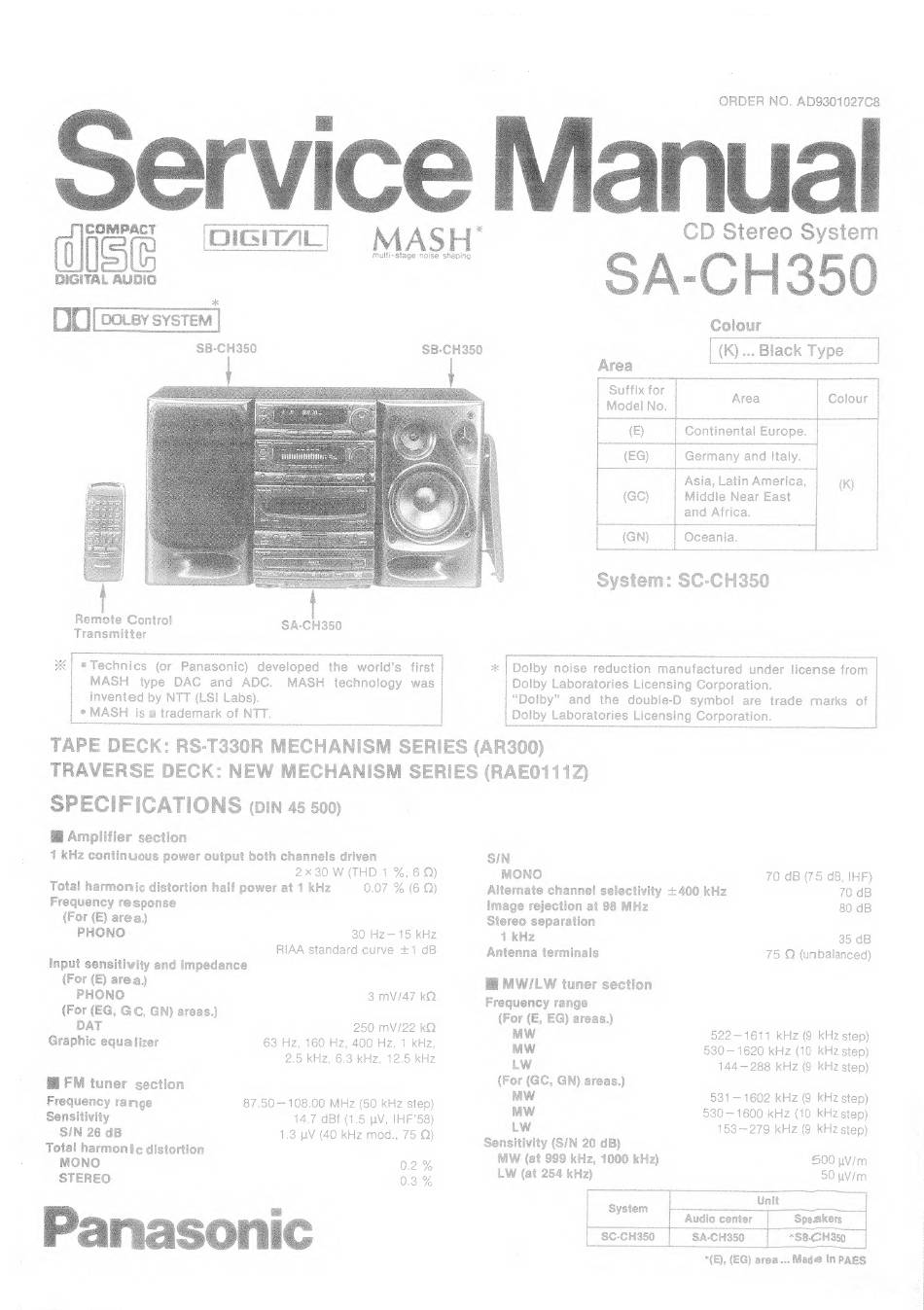

Panasonic SA-CH350 Service Manual
Hide thumbs Also See for SA-CH350:

Advertisement

Quick Links

olisie
IDIGITAL|
M LA noise
SH
olf AUDIO
OC (easvsvsrew]
SB-CH350
Remote
Control!
Transmitter
SA-CH350
* | * Technics
(or Panasonic)
developed
the world's
first
MASH
type DAC
and
ADC.
MASH
technology
was
invented by NTT (LSI Labs).
® MASH
is a trademark of NTT.
SB-CH350
ORDER NO. AD9301027C8
Service Manual
CD Stereo System
SA-CH350
Colour
LK) ... Black Type
Area
Suffix for 1
Model No.
Area
Colour
L
=
(E)
Continental Europe.
(EG)
Germany and Italy.
5
Asia, Latin America,
(GC)
Middle Near East
and Africa.
(GN)
Oceania.
System: SC-CH350
* | Dolby
noise
reduction
manufactured
under
license from
Dolby Laboratories Licensing Corporation.
"Dolby"
and
the
double-D
symbol
are
trade
marks
of
Dolby Laboratories Licensing Corporation.
TAPE DECK: RS-T330R MECHANISM
SERIES (AR300)
TRAVERSE DECK: NEW MECHANISM SERIES (RAE0111Z)
SPECIFICATIONS (pin 45 500)
@ Amplifier section
1 kHz continuous power output both channels driven
2x30
W (THD 1%, 6 Q)
Total harmonic distortion half power at 1 kHz
0.07 % (69)
Frequency response
(For (E) area)
PHONO
30 Hz- 15 kHz
RIAA standard curve
+1 dB
Input sensitivity and impedance
(For (E) area)
PHONO
3 mV/47 kQ
(For (EG, GC, GN) areas.)
DAT
250 mV/22 kQ
63 Hz, 160 Hz, 400 Hz, 1 kHz,
2.5 kHz, 6.3 kHz, 12.5 kHz
Graphic equalizer
@ FM tuner section
Frequency range
87.50
— 108.00 MHz (50 kHz step)
Sensitivity
14.7 dBE (1.5 pV, |HF'S8)
S/N 26 dB
1.3 pV (40 kHz mod., 75 Q)
Total harmonic distortion
MONO
0.2%
STEREO
0.3 %
SIN
MONO
70 dB (75 dB, IHF)
Alternate channel selectivity +400 kHz
70 dB
image rejection at 98 MHz
80 dB
Stereo separation
1 kHz
35 dB
Antenna terminals
75 Q (unbalanced)
@ MW/LW tuner section
Frequency range
(For (E, EG) areas.)
MW
522-1611
kHz (9 KHz step)
ww
530-1620 kHz (10 KHz step)
CW
144-288 kHz (9 kHz step)
(For (GC, GN) areas.)
MW
531-1602 kHz (9 kHz step)
MW
530-1600 kHz (10 kHz step)
Sensitivity (S/N 20 dB)
MW (at 999 kHz, 1000 kHz)
500 pVim
LW (at 254 kHz)
50 uV/m
Unit
System
Audio center
Speakers
L $C-CH350
SA-CH350
*SB.CH 350
Pa
ee a
a ee ee
