RW RWPHTP20 Instruction Manual

2in1 cordless pole hedge trimmer & chainsaw
Hide thumbs

Advertisement

Table of Contents

2in1 Cordless Pole Hedge Trimmer & Chainsaw

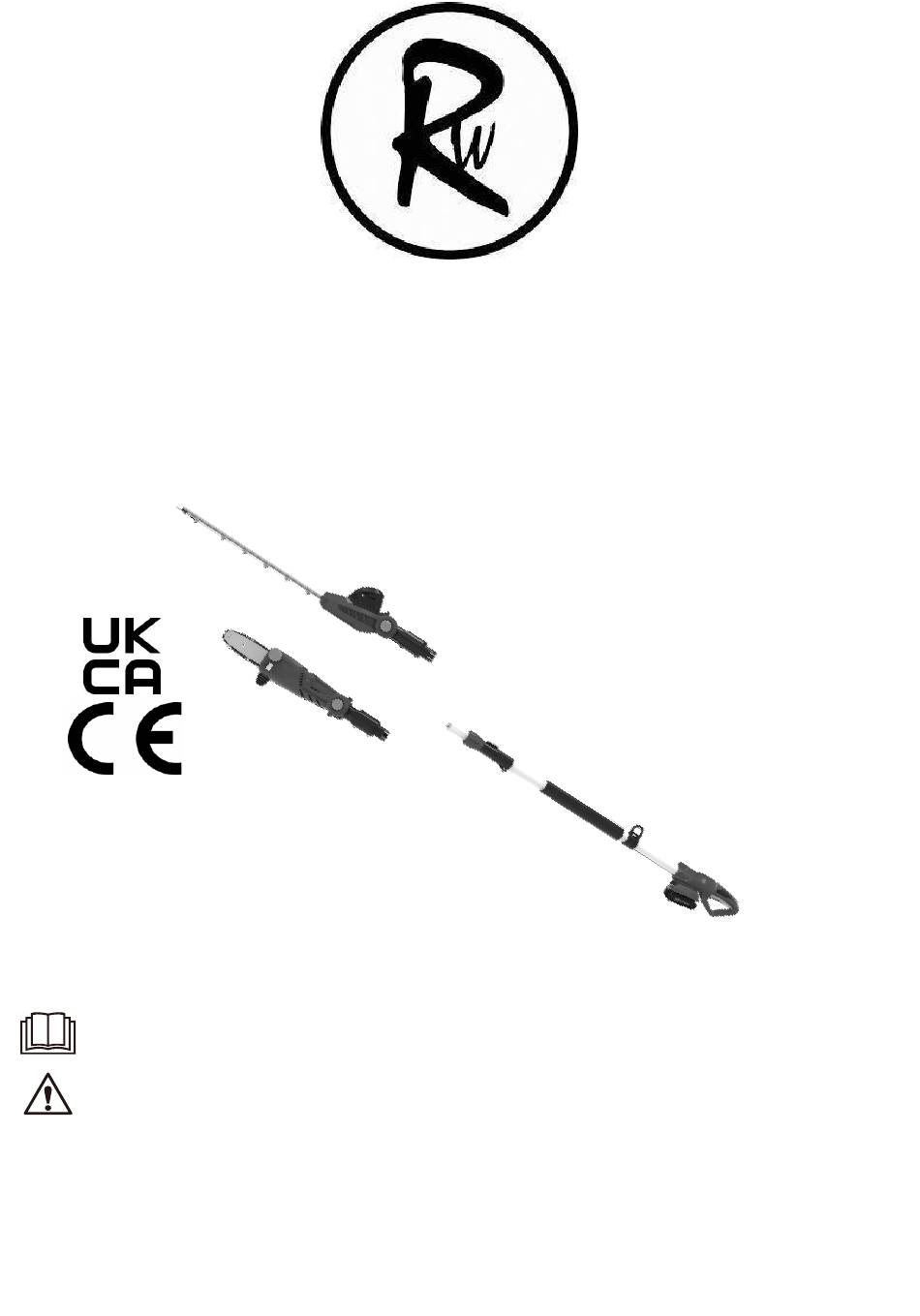

RWPHTP20 INSTRUCTION MANUAL
This picture is for reference only.
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE
AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual
may vary in appearance, assembly, inclusions, specificaions, description, and packaging.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWPHTP20 and is the answer not in the manual?

Questions and answers

Related Manuals for RW RWPHTP20

Summary of Contents for RW RWPHTP20

  • Page 1 2in1 Cordless Pole Hedge Trimmer & Chainsaw RWPHTP20 INSTRUCTION MANUAL This picture is for reference only. READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual...
  • Page 2 Fig.1 Fig.2...
  • Page 3 Fig.3 Fig.4...
  • Page 4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9...

  • Page 5: For Your Safety

    Before you begin… Intended use Pruning saw: This device may only be used with the approved original cutting chain for sawing wood. Telescopic hedge trimmer: The appliance is intended exclusively for trimming hedges and bushes in the open air. This appliance is intended for use on private properties only. This product is not intended for commercial use.
  • Page 6 Electrical safety • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. • Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
  • Page 7 • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. • Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 8 Chainsaw Safety Warnings • Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
  • Page 9 • Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken.
  • Page 10 • When cutting a branch under tension, remember that it will spring back. If the tension is released in the wood fibres, the tense branch can hit the operator and/ or wrest control of the hedge trimmer away from person. •...
  • Page 11 Before putting the unit into operation, read and observe the Do not dispose of a battery pack with the household instructions for use. waste! Protect the unit from wet Do not dispose of a battery conditions. Store in a dry place. pack in water! Risk of death through electric Do not burn the battery...
  • Page 12 Personal Protective Equipment/Sensible Clothing When cutting, wear the following protective equipment: Eye protection: wrap-around goggles/protective visor on the helmet Ear protection: earplugs/ear muffs Head protection: safety helmet with visor Head protection: safety helmet with visor Foot protection: safety shoes with gripping soles, steel caps and leg protection Hand protection: protective chainsaw gloves Clothing: safety overalls (cut-proof), Safety jacket (cut-proof) Avoid with your clothing that you get caught on something:...

  • Page 13: Installation

    Installation DANGER! Risk of injury during operation! Improperly mounted parts can cause severe and even fatal injuries when using the device! This device may only be commissioned if all parts are mounted completely and tightly and no part is damaged! •...

  • Page 14: Operation

    – Before opening, clean the tank cover and the filler neck if necessary. – Slowly open and remove the tank cover. – Carefully fill up the saw chain oil. Do not spill! – Read the oil level at the inspection glass (29). The oil stand must be placed between [MIN] and [MAX]. –...
  • Page 15 Check the safety devices and the safe condition of the appliance: – Check all parts for tightness. – Check the appliance for visual damage: broken parts, cracks, etc. Switching on/off (Fig.1) – Firmly hold product with hands and use shoulder strap. –...
  • Page 16 Avoid letting the area of the saw bar touch wood or other hard objects. Only a careful and correct working method can reduce the risk of a kickback reliably! Basic Work Technique DANGER! Risk of injury! This section treats the basic work technique when handling the device. The information provided here does not replace the many years of training and experience of a professional.
  • Page 17 Pushing sawing: With this technique, sawing occurs with the upper edge of the saw bar from below upwards. The saw chain thus pushes the device backwards towards the user. If the saw bar twists, the device can fly towards the user with great force.
  • Page 18 – When separating thicker branches, make the first cut from below [1]. Then cut through from above [2] and finally separate the remaining stump [3]. Cutting hedges NOTICE! Risk of damage to the appliance! Take particular care close to fences! If trimmings, fence wire or similar is caught in the cutting equipment, switch the appliance off immediately.

  • Page 19: Cleaning And Maintenance

    Cleaning and Maintenance DANGER! Risk of injury! Before any maintenance or cleaning work: • Remove the battery. • Let the device cool down. Overview of cleaning If necessary What？ How? Clean the machine. – Remove coarse dirt. – Wipe down the device with a slightly damp cloth. Oil cutting tool Clean cutting tool with brush.
  • Page 20 Fault/malfunction Cause Remedial measure Device does not work. Battery not slotted in correctly? Slot battery into place. Battery pack discharged? Charging the battery pack. Battery pack defective? Contact your local vendor. Is the device defective? If you can’t fix the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred.

  • Page 21: Hedge Trimmer

    Technical data Pruning saw Idling speed 1800 min-1 Length of the saw bar 200 mm Cutting speed 4,5 m/s Oil tank capacity 100 ml 100 ml Noise pressure level(LPA)* 77,8 dB(A)(K = 3 dB(A)) Sound power level(LWA)* 87,8 dB(A)(K = 2,72 dB(A)) Vibration** •...

  • Page 22: Declaration Of Conformity

    2014/30/EU The Electromagnetic Compatibility Directive 2011/65/EU And (EU)2015/863 Restriction of Hazardous Substances Directive Hereby declare that: 2in1 Cordless telescopic hedge trimmer &chainsaws Model number RWPHTP20 is in conformity with the applicable requirement of the following documents Ref. No. EN 62841-1:2015/A11:2022...
  • Page 23 RocwooD Warranty All machines supplied by RocwooD are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 12 months. This warranty covers 12 months domestic use, business or continuous use will invalidate this warranty.
