INSTRUCTION MANUAL
PLEASE RETAIN
DO NOT USE APPLIANCE WITHOUT
READING THIS FIRST
THIS MANUAL COVERS
RWPHT20
CORDLESS POLE HEDGE TRIMMER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWPHT20 and is the answer not in the manual?

Questions and answers

Related Manuals for RW RWPHT20

Summary of Contents for RW RWPHT20

  • Page 1 INSTRUCTION MANUAL PLEASE RETAIN DO NOT USE APPLIANCE WITHOUT READING THIS FIRST THIS MANUAL COVERS RWPHT20 CORDLESS POLE HEDGE TRIMMER...

  • Page 2: Safety Warnings

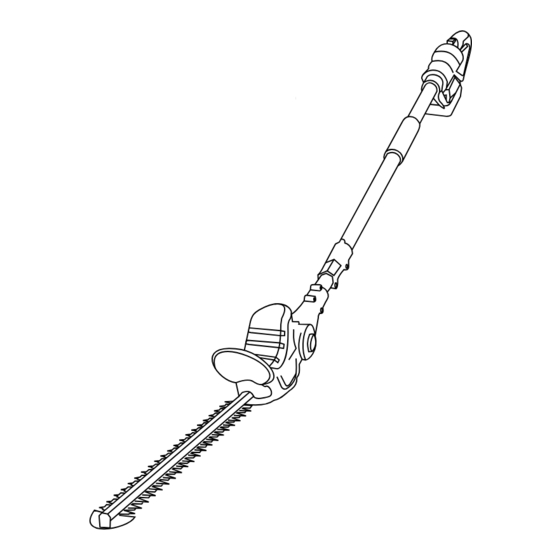

    1.Start/ stop button 2.Handle extender dial 3.Air vents 4.Blade 5.Protective screen 6.Angle adjusting button 7.Shoulder strap 8.Battery location 9. Handle 10. Safety lock-off 11.Protective cover for blade Fig. 2 Fig.3 Fig. 4 Fig.5 Safety warnings These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference.
  • Page 3 General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your battery- operated (cordless) power tool.
  • Page 4 Hedge trimmer safety warnings: 1. Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material.
  • Page 5 7. Charge the battery pack indoors only as the charger is designed for indoor use only. 8. Do not charge non-rechargeable batteries. 9. Protect the charger against moisture and wet conditions. There is a danger of electric shock. 10. Do not place any object on top of the charger as it could cause overheating. Do not place the charger near any heat source.
  • Page 6 Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Read the instruction manual. Wear hearing protection. Wear eye protection.

  • Page 7: Technical Specifications

    Technical specifications Voltage 20V DC Battery type Lithium-Ion Battery capacity 2000mAh Charging time 3-5 hours Cutting length 510mm No load speed 1000/min Tooth gap of cutter blade 16mm Sound pressure level LpA 72.5 dB(A) Uncertainty KpA 3.0 dB(A) Sound power level LwA 89.7 dB(A) Uncertainty KpA 3.0 dB(A)

  • Page 8: Charging The Battery

    Charging the battery 1. Remove the battery from the machine. 2. Slide the charging dock onto the battery as shown in the image (Fig.5) and plug the charger into a power socket. The red light on the plug will turn on to indicate charging is underway. 3.
  • Page 9 NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig. 8). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge. For reference only Fig.8 After use...

  • Page 10: Troubleshooting

    For reference only Fig.9 1. Keep the cutting device sharp. Have a worn or damaged cutting device replaced with a new one of the same type by a qualified specialist. 2. Tighten loose nuts on the cutting device with an 8 mm wrench with 5 Nm min, 7 Nm max. to ensure safe operation of the product.

  • Page 11: Disposal And Recycling

    Problem Possible cause Solution • Attach properly • Battery pack not properly • Remove and charge attached battery pack • Battery pack discharged Product does not • Replace with a new start • Battery pack damaged one of the same •...
