Arris Ruckus E510 Quick Setup Manual

E510 Access Point
Antenna Module
Quick Setup Guide
NOTE: The minimum software revision for the E510 is
ZoneDirector (ZD) 10.1 or later, or SmartZone (SZ) 3.6 or
later, or standalone AP firmware 108.0 or later.
This Quick Setup Guide provides step-by-step instructions on
how to field-install the Ruckus Wireless E510 access point
(AP) Antenna Module (Ruckus Part # 902-2101-0000). For
detailed information on planning the installation, performing a
site survey and operating the E510, refer to the
Wireless Outdoor Access Point User Guide , available at
https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with
local and national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm
(3"-5") drip loop in any cable that is attached to the AP or
the building. This will prevent water from running along the
cable and entering the AP or the building where the cable
terminates.
CAUTION! Be sure that grounding is available and that it
meets local and national electrical codes. For additional
lightning protection, use lightning rods and lightning
arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING! Ruckus Wireless strongly recommends that you
wear eye protection before mounting the AP.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
support.ruckuswireless.com.
©
Copyright 2018 ARRIS Enterprises LLC. All rights reserved.
Published March 2018, Part Number 800-71580-001 Rev C
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
• このガイドの日本語版は
support.ruckuswireless.com
• 이 가이드의 한국어 버전은 웹 사이트
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta
guía en https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• Release Notes and other user documentation are available
at http://support.ruckuswireless.com/documents.
• Software upgrades are available at
support.ruckuswireless.com/software.
• Open source information is available at
opensource.ruckuswireless.com.
Ruckus
• Software license and limited warranty information are
available at http://support.ruckuswireless.com/warranty.
Before deploying your Ruckus Wireless Access Point, verify
that all items listed in
package. If any item is damaged or missing, notify your
authorized Ruckus Wireless sales representative. Also,
make sure that you have the required hardware and tools.
Required Hardware and Tools
• Mounting bracket (purchased separately) for pole or flat
surface mounting
• Customer-supplied mounting bracket for DIN rail mounting
• Electric drill with drill bits and customer-supplied wall
anchors, flat washers, and hex nuts for flat-surface
mounting
Antenna Module Package Contents
The E510 Antenna Module installation package includes all of
the following:
• E510 Access Point Antenna Module
• This Quick Setup Guide
https://
https://
でご覧ください。
(https://
https://
http://
http://
Package Contents are included in the

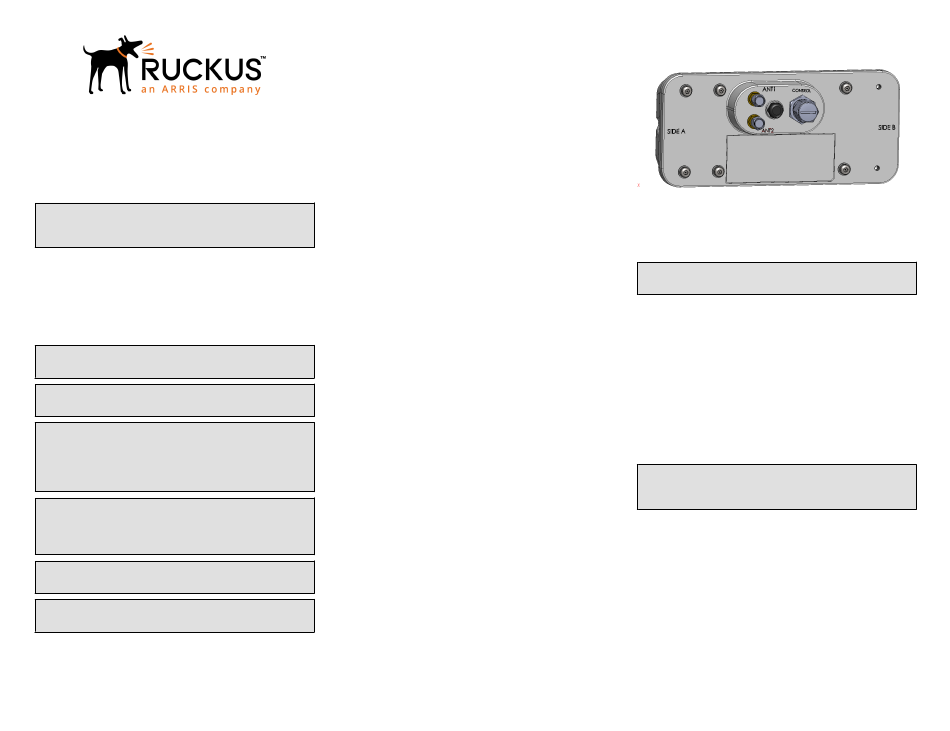

FIGURE 1 E510 Antenna Module
Purchased Separately
The E510 requires an AP Module and Antenna Cable Kit
(Ruckus or third-party RF cables) to be purchased separately.
NOTE: BeamFlex is not available if third-party RF cables are
used.
AP Module
The E510 Antenna Module is meant to be paired with the
E510 AP Module, which contains the access point
intelligence. Refer to the E510 AP Module Quick Setup Guide
for more information.
Antenna Cable Kit
Ruckus provides three different cable kits with different length
cables. Each kit contains two RF coaxial cables and one
Control cable. The RF cables are used to connect the AP
Module to the Antenna Module using two RP-SMA
connectors (each dual-band/single chain).
CAUTION! If third party RF cables are used, the customer is
responsible for signal loss profile / antenna gain in the
SmartZone GUI.
Mounting Kits
Two mounting kits are available for mounting the Antenna
Module:
• 902-2005-0000: E510 Antenna Module Bracket (for surface
or pole mounting)
• 902-2006-0000: E510 Antenna Module Bracket (for
stadium mounting)
Mounting Instructions
Page 1 of 2
