Lacor 69125 Instructions For Use And Maintenance Manual

Lacor 69125 Instructions For Use And Maintenance Manual

Meat slicer
Hide thumbs Also See for 69125:
Table of Contents

Advertisement

Quick Links

Download this manual

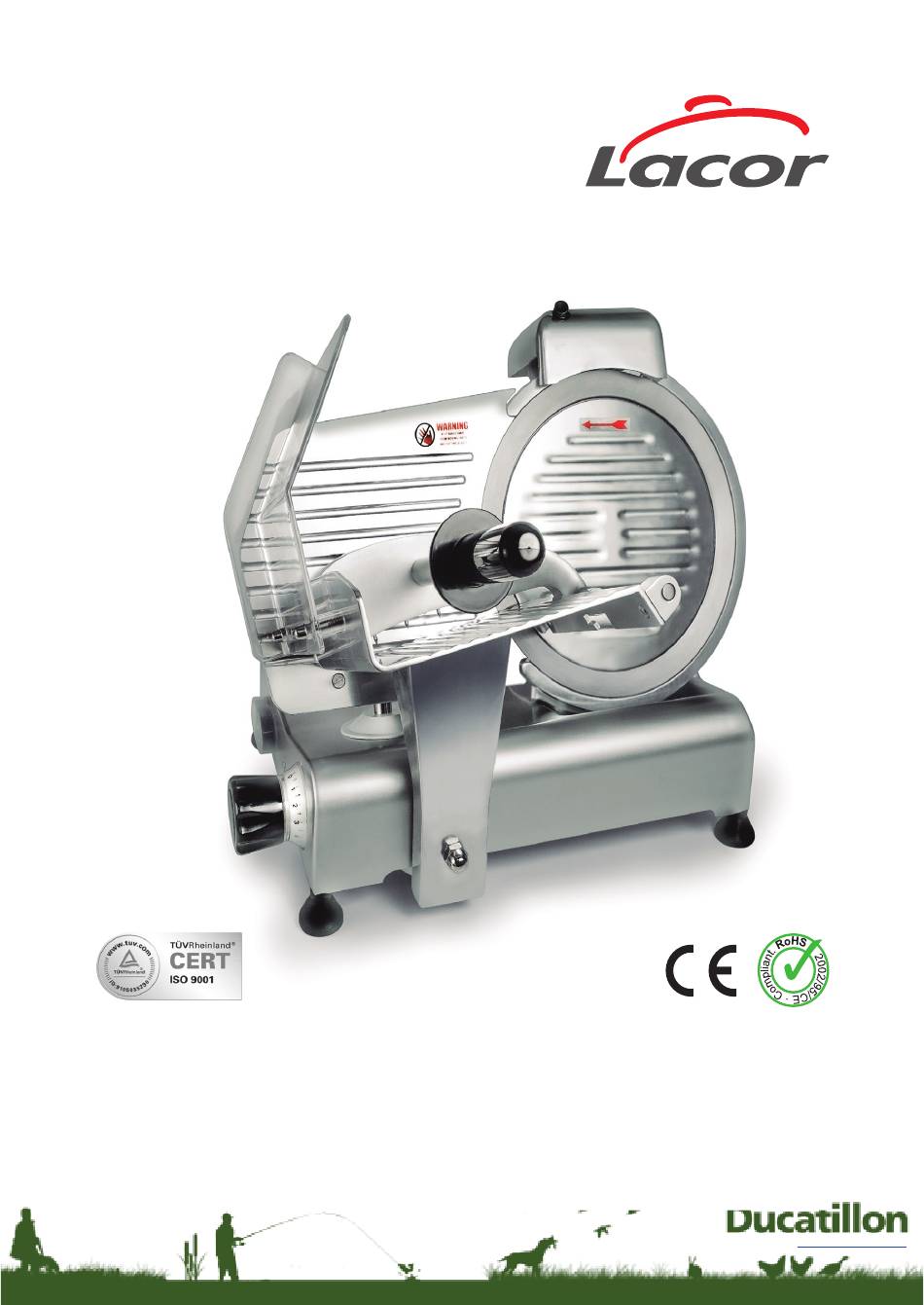

Cortadora de fiambre
La trancheuse
Aufschnittmaschine
Meat Slicer
Affettatrice
Máquina de cortar fiambre
Vleessnijmachine
INSTRUCCIONES DE USO Y MANTENIMIENTO
GEBRAUCHS UND INSTANDHALTUNGSANLEITUNG
Rev.: 01
Chasse
CONSEILS D'UTILISATION ET D'ENTRETIEN
INSTRUCTIONS FOR USE AND MAINTENANCE
ISTRUZIONI PER L'USO E LA MANUTENZIONE
INSTRUÇÕES DE USO E MANUTENÇÃO
GEBRUIKS- EN ONDERHOUDSAANWIJZINGEN
Pêche
Loisir et nature
www.ducatillon.com
Jardin
Élevage

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 69125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lacor 69125

Summary of Contents for Lacor 69125

  • Page 1 Cortadora de fiambre La trancheuse Aufschnittmaschine Meat Slicer Affettatrice Máquina de cortar fiambre Vleessnijmachine INSTRUCCIONES DE USO Y MANTENIMIENTO CONSEILS D'UTILISATION ET D'ENTRETIEN GEBRAUCHS UND INSTANDHALTUNGSANLEITUNG INSTRUCTIONS FOR USE AND MAINTENANCE ISTRUZIONI PER L'USO E LA MANUTENZIONE INSTRUÇÕES DE USO E MANUTENÇÃO GEBRUIKS- EN ONDERHOUDSAANWIJZINGEN Rev.: 01 www.ducatillon.com...

  • Page 2: Important Safety Measures

    SAVE THESE INSTRUCTIONS This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in seri- ous injury. If you are unable to understand the contents of this manual, please bring it to the attention of your supervisor.
  • Page 3 8.- Avoid contact with moving parts. Take special care when cleaning appliances. 9.- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning 10.- Avoid contact with hot parts. Take special care when cleaning appliances.
  • Page 4 17.- This text is for users in countries except European countries: This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

  • Page 5: Specification

    SPECIFICATION MODEL: 69125 69130 VOLTAGE: 220~230V/50Hz 220~230V/50Hz POWER: 150W 250 W SLICE THICK: 0-11 mm 0-13 mm Ø BLADE: 250 mm. / 10” 300 mm. / 12” DIMENSIONS: 48x39x36 cm 60x58x44 cm WEIGHT: 15 Kgr. / 33 lb 24,3 Kgr./ 55 lb...
  • Page 6 4.- Allow a minimum of 30 cm clearance along the sides to endure proper operation and safety. 5- To prevent any injury or damage do not pull unit by power cord. CAUTIONS 1.- Locate the unit at the proper counter height, in an area that is convenient for use.

  • Page 7: Main Function

    MAIN FUNCTION Use for the cutting of cold meats and defrosted meat off the bone. INSTALLATION UNPACKING 1.- Open the large box. Remove all packing materials and protective covering from the unit and parts. Do not discard the wrapping until you have checked that the blender is working correctly. 2.- If unit is not level, use 14 cm (9/16”) open-end wrench to adjust the foot of each leg until unit is level.

  • Page 8: Parts List

    PARTS LIST Sharpener Knife guard Active pusher 4.- Sliding tray Graduated knob On/Off switch Blade Rubber leg Acrylic protector OPERATION 1.- The machine should be installed on a work surface that has sufficient stability and strength to support the weight of the machine and product being sliced. 2.- Fix the acrylic protector in place using the nuts and screws supplied.

  • Page 9: Maintenance

    4.- Before machine first use and before plug, clean carefully the blade and all parts that might be in contact with food. 5.- Make sure that the line voltage of your power source matches the rated voltage and frequency on the machine. 6.- Turn the switch on and let the machine race about 2-3 minutes before use.

  • Page 10: Blade Sharpening

    3.- Pusher axle lubrication; a- Clean the pusher axle with dry cloth first. b- Put the lubricant on the both of the axles and pull the pusher up and down to make the lubricant well spread and the pusher work well. c- It is best to lubricate the axle every day.

  • Page 11: Belt Tightening

    BELT TIGHTENING When the machine has lost power after continual use, it could be due to two basic reasons; a) Damage to the blade edge, you should sharpen according to the instructions shown in this manual. b) Voltage loss in the transmission belt, for which you should also follow the detailed instructions. 1.- To access the engine, you must loosen the screws holding the protective cover to the machine base (Fig.1).

This manual is also suitable for:

69130
