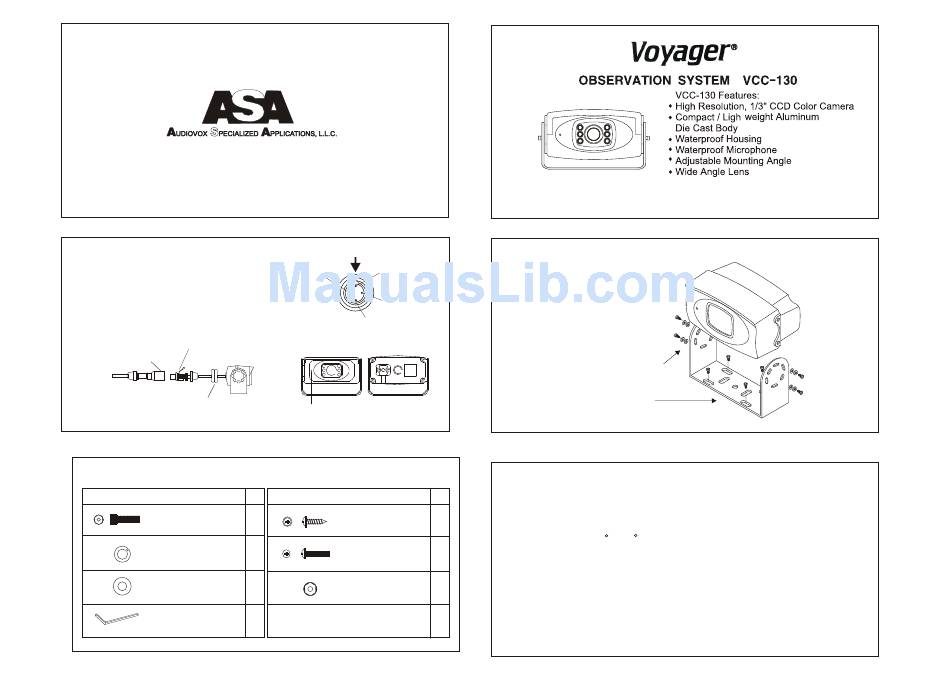

Contents:
Contents:
Camera
Bracket
Hardware Kit
Installation and Pin Out:
Installation and Pin Out:
Waterproof Camera Connector
Standard Cable Connector
Grommet To Seal Through Vehicle Exterior
Camera to bracket hardware
Specifications
Specifications
Q'ty
Q'ty
Hex Socket Head M4X10L
4
Stainless screws
Spring Washers
4
4X7X1.2mm Stainless
Flat Washers
4
4x10x.5mm Stainless
1
Allen wrench
Arrow Locking Location
Video From
Audio
Camera
12V DC
Ground/Shield
Cable Connector
End View
Microphone
Bracket to vehicle hardware
Specifications
Specifications
Q'ty
Q'ty
Tapping P/H W/Washer
4
5X16mm Stainless screws
Machine Screw T/H
4
M5X16mm Stainless
Locking nuts M5 stainless
4
Audiovox Specialized Applications, LLC
www.asaelectronics.com
Installation
Installation
Screw For Use
Hex Socket Head M4X10L Stainless screws
Spring Washers 4X7X1.2mm Stainless
Flat Washers 4x10x.5mm Stainless
Allen wrench
Tapping P/H W/Washer 5X16mm Stainless screws
Machine Screw T/H M5X16mm Stainless
Locking nuts M5 stainless
Specifications
Specifications
Signal System
: NTSC
Image Sensor
: 1/3" Color CCD W/electronic auto-iris
270K picture elements
Viewing Angle
: 104 (H), 78 (V)
Outer Dimensions : 100(W) X 55(H) X 55(D) mm
4.0 (W) X 2.2(H) X 2.2(D) Inch
Weight
: 0.5kg/ 1.0Ibs
* Specifications are subject to change without notice.
