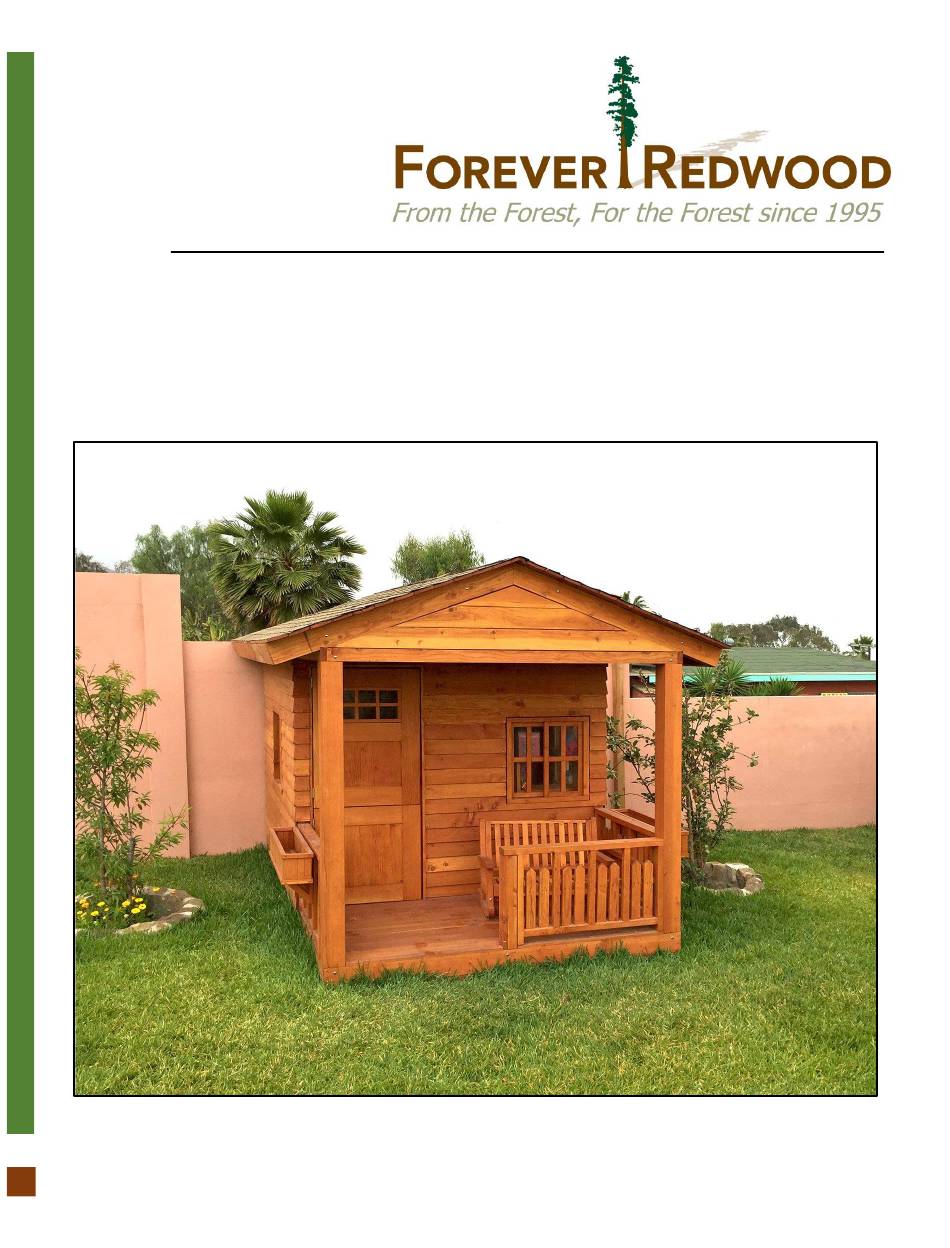

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR KID’S BACKYARD CABIN...
- Page 2 NOTE: Assembly is best done by two people. To assemble your product, you need a Hammer, a Ratch, a Drill, and an impact drill. Required Tools (Are not included in your hardware packing). PROCESS TO INSTALL THE HARDWARE PROVIDED. To install the bolts. Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece.
- Page 3 To install the lag bolts. Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratch with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws.
- Page 4 P| 3 Kid’s Backyard Cabin www.ForeverRedwood.com...
- Page 5 P| 4 Kid’s Backyard Cabin www.ForeverRedwood.com...
- Page 6 P| 5 Kid’s Backyard Cabin www.ForeverRedwood.com...
- Page 7 P| 6 Kid’s Backyard Cabin www.ForeverRedwood.com...
- Page 8 P| 7 Kid’s Backyard Cabin www.ForeverRedwood.com...
- Page 9 To assemble each floor panel, follow the steps 1&2. Step 1: Use 3´´ deck screws (A) to attach the floor frames (1) together. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´...
- Page 10 Step 3: Use 3/8´´ x 2 ½´´ lag bolts (B) to attach the floor panels together. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ x 2 ½´´ Lag Bolts Step 4: Attach the floor supports (3) to the bottom of the floor panels with 5´´...
- Page 11 Step 5: Attach the posts (4,5,6) to the floor panels with 3´´ deck screws (A). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws Step 6: Attach the supports (7) to the posts with 3’’ deck screws (A). The supports will be attached together with 3’’ deck screws (A).
- Page 12 Step 7: Attach the wall panels (8,9) & the wall panels with windows (10) to the floor panels and to the posts with 5/16´´ x 4´´ lag bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 13 Step 9: Use 6´´ deck screws (G) to attach the door frame (11) to the post and to the wall panel-B. After that, use 5/16´´ x 3´´ lag bolts (E) to attach the door frame to the wall panel with windows. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 14 Step 11: Attach the roof trusses (12) to the supports with the metal bases and 2 ½´´ deck screws (I). Each part has a series of numbers that indicate where to attach the part with the corresponding number. Step 12: Attach the roof panels (14) to the supports with 3/8´´ x 7´´ lag bolts (J). The roof panels will be attached together at the top with 3’’...
- Page 15 Step 13: Attach the roof panels (14) to the central roof truss with 5/16´´ x 4´´ Lag bolts (D). The roof panels will be attached together and to the perimeter roof trusses with 5/16´´´x 2´´ lag bolts (K). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 16 Step 15: Use 3´´ deck screws (A) to attach the roof fascia boards (16) to the roof trusses. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws Step 16: Use 3 ½´´ deck screws (L) to attach the windows (17) to the wall panels. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 17 Step 17: Use 2´´ deck screws (H) to attach the wall boards (18) to the wall panels. Put the boards from the bottom to the top, the overlapping between these boards it will be of ¾´´. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 18 Step 19: Finally, place the door (20) in their place. Each part has a series of numbers that indicate where to attach the part with the corresponding number. This completes the Backyard Cabin assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us.
