VP2776T-4K

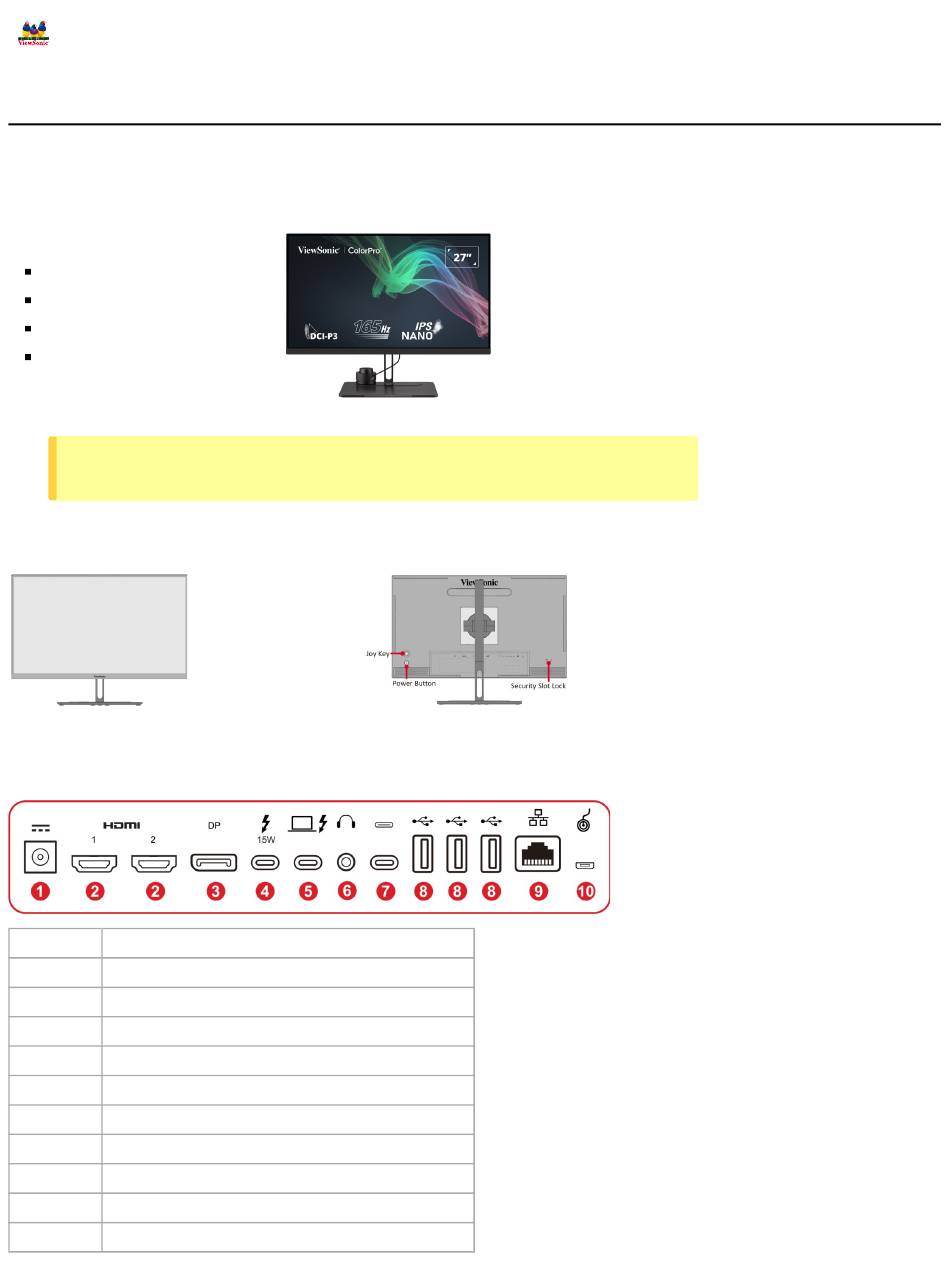

Package Contents
Monitor
Power Cord
Video Cable
Quick Start Guide
NOTE: The cables included in your package may vary depending on your
country. Please contact your local reseller for more information.
Front View / Rear View
Front View
I/O Ports
Number
1
2
3
4
5
6
7
8
9
10
Item
DC IN
HDMI
DisplayPort
Thunderbolt Out
Thunderbolt In
Audio Out
USB Upstream
USB Downstream
LAN
Micro USB
Rear View
