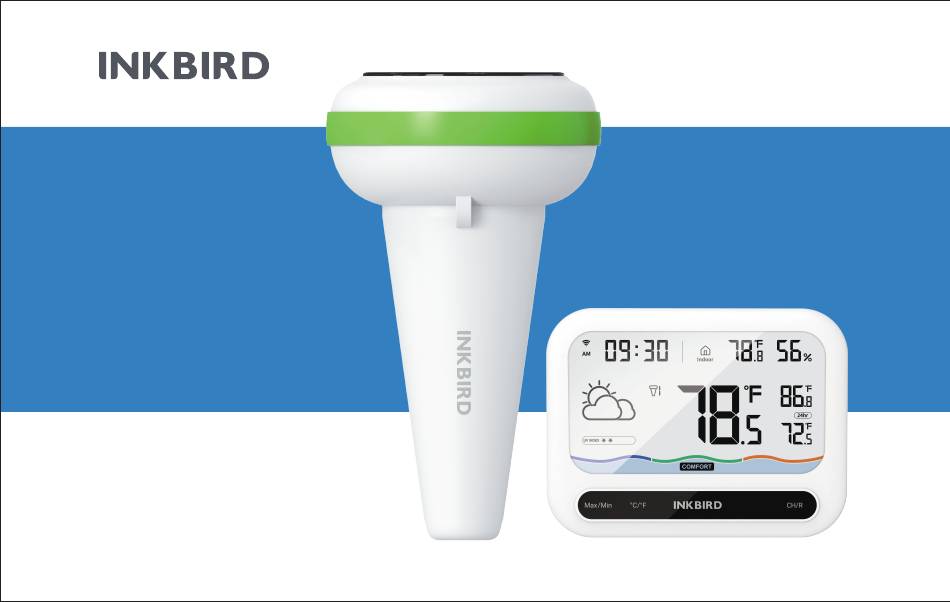

- Page 1 ACCURATE DETECTION WIRELESS POOL THERMOMETER & WIFI GATEWAY IBS-P03R & IM-03-w...
- Page 2 Warm tips To quickly jump to a specific chapter page, click on the relevant text on the contents page. You can also use the thumbnail or document outline in the top left corner to quickly find a specific page.
-
Page 3: Table Of Contents
CONTENTS Overview Precautions for Use Preparation Before Using Troubleshooting Product Introduction FCC Requirement Product Specifications IC Warning APP Installation & Connection Customer Service... - Page 4 Please keep this manual properly for reference. You can also scan the QR code to visit our official website for product usage videos. For any usage issues, please feel free to contact us at support@inkbird.com. Wenn Sie eine Bedienungsanleitung in deutscher Sprache benötigen, scannen Sie bitte den QR-Code und besuchen Sie unsere Website, um sie zu erhalten und ein Video über die Verwendung des Produkts zu sehen.
-
Page 5: Overview
Overview The INKBIRD Solar Powered Wireless Pool Thermometer has high precision sensors for accurate and sensitive readings. It is environmentally friendly and economical as it can be recharged by solar power, eliminating the need for frequent battery changes. It has the highest waterproof rating of IP68. Combined with the IM-03-W WiFi gateway and indoor monitor, you can monitor pool thermometers within 300 meters (obstacle free) and get weather and UV information to ensure a healthy swimming experience, while you can view the indoor temperature and humidity to easily learn about the indoor environment. -
Page 6: Product Introduction
Press the action button on the pool thermometer (Transmitter) to turn it on. After powering on, press the action button to switch between Celsius (℃) or Fahrenheit (℉). To turn off the thermometer, press and hold the action button for 5 seconds. We recommend that you place the pool thermometer in a location exposed to strong sunlight and use it after the battery reaches three bars ( ). - Page 7 Anti-collision Gasket: This is to protect the product from collisions and reduce the noise caused by collisions. Screen: Wireless icon: flashes once when transferring data. Battery level icon: The battery capacity is indicated by three bars. If the icon is flashing, it means that the battery power is too low.
- Page 8 and 24 hours in the application. PS：When the time format is set to 12 hours, the AM on the screen means ante meridiem and PM means post meridiem. Weather: Displays the current weather and weather forecast, within 24 types of weather. Please avoid swimming during inclement weather such as rainstorms and lightning.
- Page 9 Channel number: The current channel number，If you switch to channel 0, each of the linked channels will be dis- played in turn every 3 seconds. Ultraviolet light: Helps you to know about the current UV index. If the UV index is in a higher level, please take good protection measures based on your needs before swimming outdoors.
- Page 10 MAX/MIN water temperatures: The MAX and MIN water temperatures for the past 24 hours or all the time, as measured by the pool thermometer under the current channel. 24H: The displayed MAX and MIN values represent the highest and lowest values recorded in the past 24 hours； All time: The displayed MAX and MIN values which are the highest and lowest values since starting up or the last recording reset.
-
Page 11: Product Specifications
Product Specifications A. Pool Thermometer (Transmitter) Temperature measurement range: -40℃~70℃ (-40°F~158℉) Sampling period: 5s Temperature measurement accuracy: ±1℃ (±1.8℉) Waterproof grade: IP68 Temperature display accuracy: 0.1℃ (0.1℉) Warranty: 1 year Power: 3.7V 500mAh 1.85Wh B. WiFi Gateway and Indoor Monitor (Receiver) Transmission Distance: up to 300 meters (980ft) in Temperature display accuracy: 0.1℃... -
Page 12: App Installation & Connection
APP Installation & Connection Search the INKBIRD App from Google Play or App Store to get it for free, or you can scan the QR code below to download it directly. NOTES: 1. Your iOS devices must be running iOS 12.0 or above to download the app smoothly. 2. - Page 13 5.2 Registration Step1: Registering an account is necessary before using the INKBIRD app for the first time. Step2: Open the app, select your Country/Region, and a verification code will be sent to you. Step3: Enter the verification code to confirm your identity, and the registration is complete. 5.3 How to Connect Open the INKBIRD app and click “+”...
-
Page 14: Precautions For Use
Please use the supplied power adapter and cable to connect the WiFi gateway and indoor monitor (Receiver) to a power source. Secondly, make sure that the pool thermometer (transmitter) is turned on, and place the thermometer as close to the WiFi gateway and indoor monitor (Receiver) as possible. -
Page 15: Troubleshooting
Troubleshooting Fault Phenomenon Possible Cause Possible Solution The air outlet is blocked. Remove the blockage. The indoor monitor is providing inaccurate temperature and Leave the product in a dry and well-venti- humidity readings. Water has infiltrated the air outlet. lated place or wipe it dry using kitchen paper. The temperature is higher than the Please operate within the designated The indoor monitor displays “... -
Page 16: Fcc Requirement
FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 17: Ic Warning
IC Warning This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 andcompliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)L'appareil ne doit pas produire de brouillage; (2)L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. -
Page 18: Customer Service
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 etla conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne surl'exposition et la conformité de rf. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ouémetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. Customer Service This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any problems in use, please feel free to contact us at support@inkbird.com. - Page 19 Shenzhen Inkbird Technology Co.,Ltd. support@inkbird.com Consignor: Shenzhen Inkbird Technology Co., Ltd. Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China Manufacturer: Shenzhen Inkbird Technology Co., Ltd. Factory Address: 6th Floor, Building 713, Pengji Liantang Industrial Area, No.2 Pengxing Road, Luohu District, Shenzhen, China 201-171044 MADE IN CHINA 216-200029...
