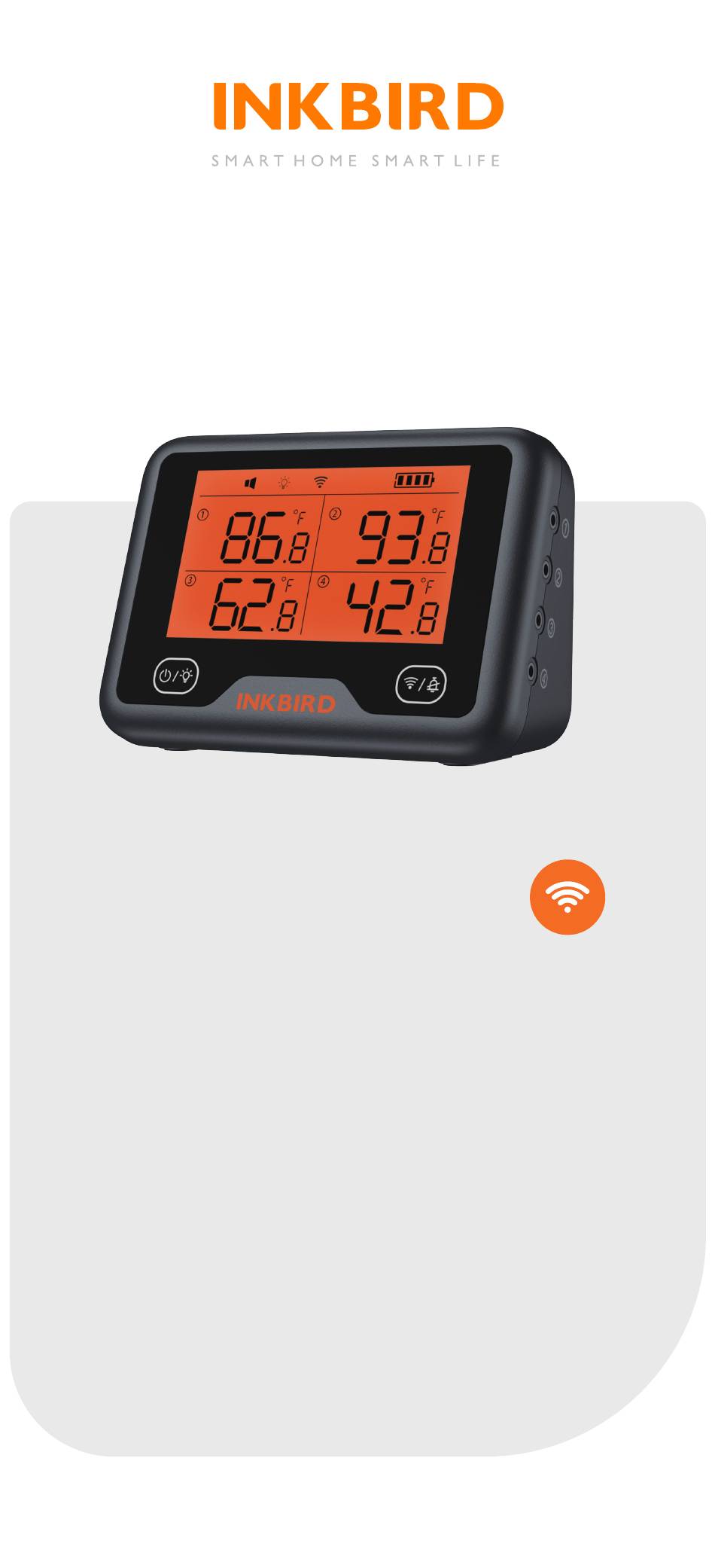

- Page 1 IBBQ-4BW Bluetooth & Wi-Fi Smart Thermometer User’s Manual...
- Page 3 Contents Introduction -------------------01 Connection --------------------04 Specification ------------------10 Battery and Accessories -------12 Frequently Asked Questions ----14...

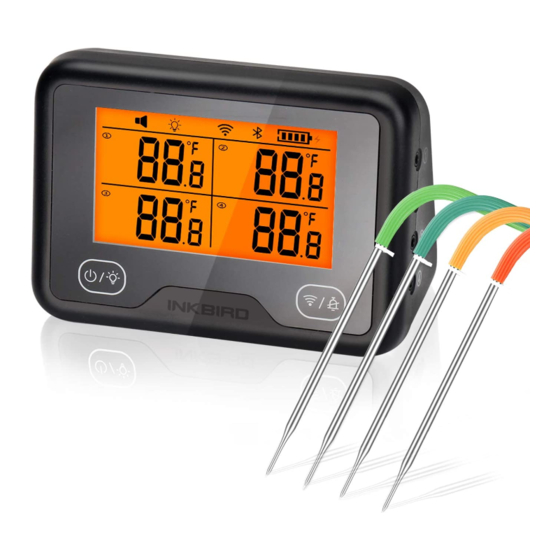

- Page 4 Introduction 1.1 Product Layout and Indicator Icons LCD Screen Probe Port (Jack 2.5mm mono plug 11mm) Charging Port Power/Backlight Button Wi-Fi Connection/Bluetooth Connection/Alarm Cancel Button...
- Page 5 Silent Mode Ring Mode The backlight is on The Wi-Fi is turned off The device is connected to the always on Wi-Fi network successfully The device is connected to the router but can not access the internet The device is not connected to disappeared the Wi-Fi network The device is in AP Mode...
- Page 6 The alarm will ring if the current temperature is higher than the preset H flash temperature The alarm will ring if the current temperature is lower than the preset L flash temperature The measure temperature is higher - H - than 300℃/572℉.
- Page 7 Connection 2.1 Free App Download Get BBQGo Pro from Google Play or App Store for free, or you can scan the QR codes below to download the app directly. Android Please make sure the following requirements are met to download the apps smoothly: -Your iOS devices must be running iOS 11 or above to download the app.
- Page 8 Please enable location service on your mobile devices and give the BBQGO PRO app permission to access your location, the app can not connect the IBBQ-4BW to your phone without the permission. Please put the device as much as close to your phone and wireless router before the connection.
- Page 9 2. Connect your phone to a 2.4GHz Wi-Fi network. 3. Open the app, register or log in. Click “Add Device” and select IBBQ-4BW. 4. Choose Wi-Fi Connection. 5. Confirm that the Wi-Fi icon displayed on your device flashes rapidly and choose the Smart Config mode.
- Page 10 2. Connect your phone to a 2.4GHz Wi-Fi network. 3. Open the app, register or log in. Click “Add Device” and select IBBQ-4BW. 4. Choose Wi-Fi Connection. 5. Confirm that the Wi-Fi icon displayed on your device flashes slowly and choose the AP mode.
- Page 11 1. Open the app, click the button in the right top corner to enter into the setting page and then choose “Device Wi-Fi Config”. 2. Register an account and log in. 3. Click “Wi-Fi Connection”. 4. Choose Assisted Configuration Wi-Fi mode. 5.
- Page 12 the device will not reconnect to the previous Wi-Fi network in any situation. Please manually configure the Wi-Fi network within 5 minutes after removing the device from your app, or the or the device's Wi-Fi will be turned off automatically to save power. 4.
- Page 13 Specification 3.1 Product Parameters Model: IBBQ-4BW Dimension: 108×44×80mm Net Weight: 183g Screen Size: 70×40mm Screen Type: Black-and-white LCD Backlight Color: Orange Magnetic Suction Grade: N30 Battery Type: Li-Ion Polymer Battery Battery Capacity: 2500mah/9.25Wh USB Type-C Input Voltage: DC 5V USB Type-C Input Current: 1A Standard Operating Temperature: 0℃~55℃/32℉~131℉...
- Page 14 The Probe: -20℃~+250℃/-4℉~+482℉ Probe Temperature Resolution: 0.1℉ Probe Temperature Accuracy: ±0.5℃ (maximum) form +25℃~+140℃ ±1.0℃ (maximum) form 0℃~+185℃ ±1.5℃ (maximum) from -10℃~+250℃ ±2.0℃ (maximum) from -20℃~+300℃ 3.2 Wireless Parameters Bluetooth: Bluetooth BLE4.2 Bluetooth Radio Frequency: 2400-2483.5MHz Bluetooth Maximum Output Power: +5dBm Wi-Fi: 2.4GHz IEEE 802.11b/g/n (20MHz) Spreading: 802.11b: CCK, DQPSK, DBPSK 802.11g: 64 QAM, 16 QAM, QPSK, BPSK...
- Page 15 Battery and Accessories 4.1 Rechargeable Battery 1. IBBQ-4BW has adopted a 2500mAh/9.25Wh lithium battery. 2. The device will automatically shut off at 0% battery. The backlight and alarm can only be turned on when the battery is above 1%. 3. If the device is inserted with 4 temperature...
- Page 16 is 90%RH. The best discharge temperature: +15℃~+25℃. The device can exert the highest performance of the lithium battery at this temperature. Charging: 0℃~+45℃, the highest humidity is 90%RH. The best charging temperature: +20℃~+25℃. The battery can be charged to the maximum capacity in the shortest time at this temperature.
- Page 17 2. Please make sure that you have entered the correct Wi-Fi username and password. 3. Please enable location service on your mobile devices and give the BBQGO PRO app permission to access your location, the app can not connect the IBBQ-4BW to your phone...
- Page 18 without the permission. 4. Please put the device, the router and the phone as close as possible. 5. The power of the device cannot be too low when configuring the Wi-Fi network. 6. Please try rebooting the device and router. 7.
- Page 19 Please air dry it or put it into a 120°C degree oven for about half an hour after socking the whole probe into water. The probes can be washed with water but the interfaces should be kept dry.
- Page 20 INKBIRD TECH.C.L Support@inkbird.com www.inkbird.com +86-755-25738050 4/F E, Bldg 713, Pengji Industrial Zone, Liantang St, Luohu Dist, Shenzhen, China.
