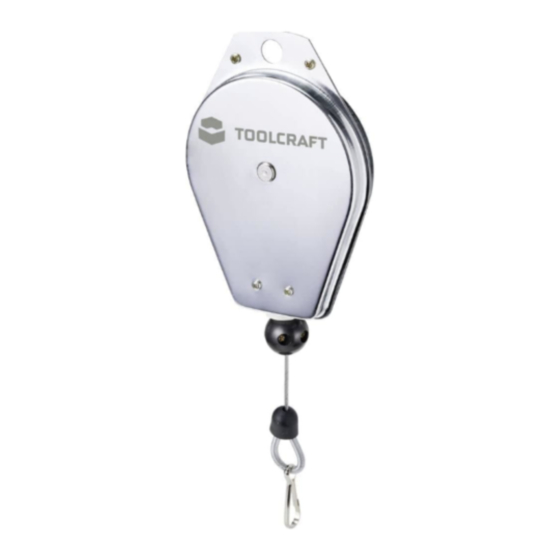

- Page 1 EN | Original Operating Instructions Spring Balancer Item No. 2436723 (SB-3000, 3 kg) Item No. 2464204 (SB-1200, 2 kg)
-
Page 2: Table Of Contents
Contents Components ..........................3 Operating Instructions for download ..................4 Intended use ..........................4 Delivery contents ........................4 Safety ............................4 User restrictions ........................4 Personal safety ........................4 Environment ........................... 4 Modifications .......................... 5 Maintenance ........................... 5 Installation ..........................6 Perform pre-installation checks .................... -
Page 3: Components
Components NO. 1 Stopper NO. 2 Cable release lever NO. 3 Adjustment dial NO. 4 Mounting point... -
Page 4: Operating Instructions For Download
Operating Instructions for download Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the complete operating instructions (or new/current versions if available). Follow the instructions on the web page. Intended use The balancer is designed to balance the weight of tools and utensils in general and is to be used by one operator at a time. -
Page 5: Modifications
Modifications • Do not make any modification to the cable unit and specifically DO NOT SHORTEN the cable. • Do not remove any labels. Replace any damaged labels. Maintenance • Operators must never disassemble the balancer. The balancer contains springs that when released in an uncontrolled manner can lead to injury or property damage. -
Page 6: Installation
Installation The installation must be carried out by skilled personnel who must comply with the directions outlined in this manual. Incorrect installation could cause injury/damage to people/property. Perform pre-installation checks • Check the delivery contents for completeness. Do not install the balancer if parts are missing. -
Page 7: Operation
Operation Safety measures Always follow the applicable accident prevention regulations. • Always wear protective gear. It is strictly prohibited to: • Abandon the load if it is not in a vertical position • Swing/throw the hanging load to another operator •... -
Page 8: Exploded View
The balancer must be disposed of complying with prevailing rules and regulations at the end of its work life. Technical data Item no. 2464204 2436723 Model no. SB-1200 SB-3000 Capacity 0.5 - 2.0 kg 1.5 - 3.0 kg Dimensions 145 x 100 x 22 mm 145 x 100 x 22 mm Cable Length 1.5 m... -
Page 9: Declaration Of Conformity (Doc)
Declaration of conformity (DOC) Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the following directive(s): Model: SB-1200, SB-3000 Machinery Directive 2006/42/EC • EN ISO 12100:2010 • EN ISO 11148-4:2012 Click on the following link to read the full text of the EU declaration of conformity: www.conrad.com/downloads...
