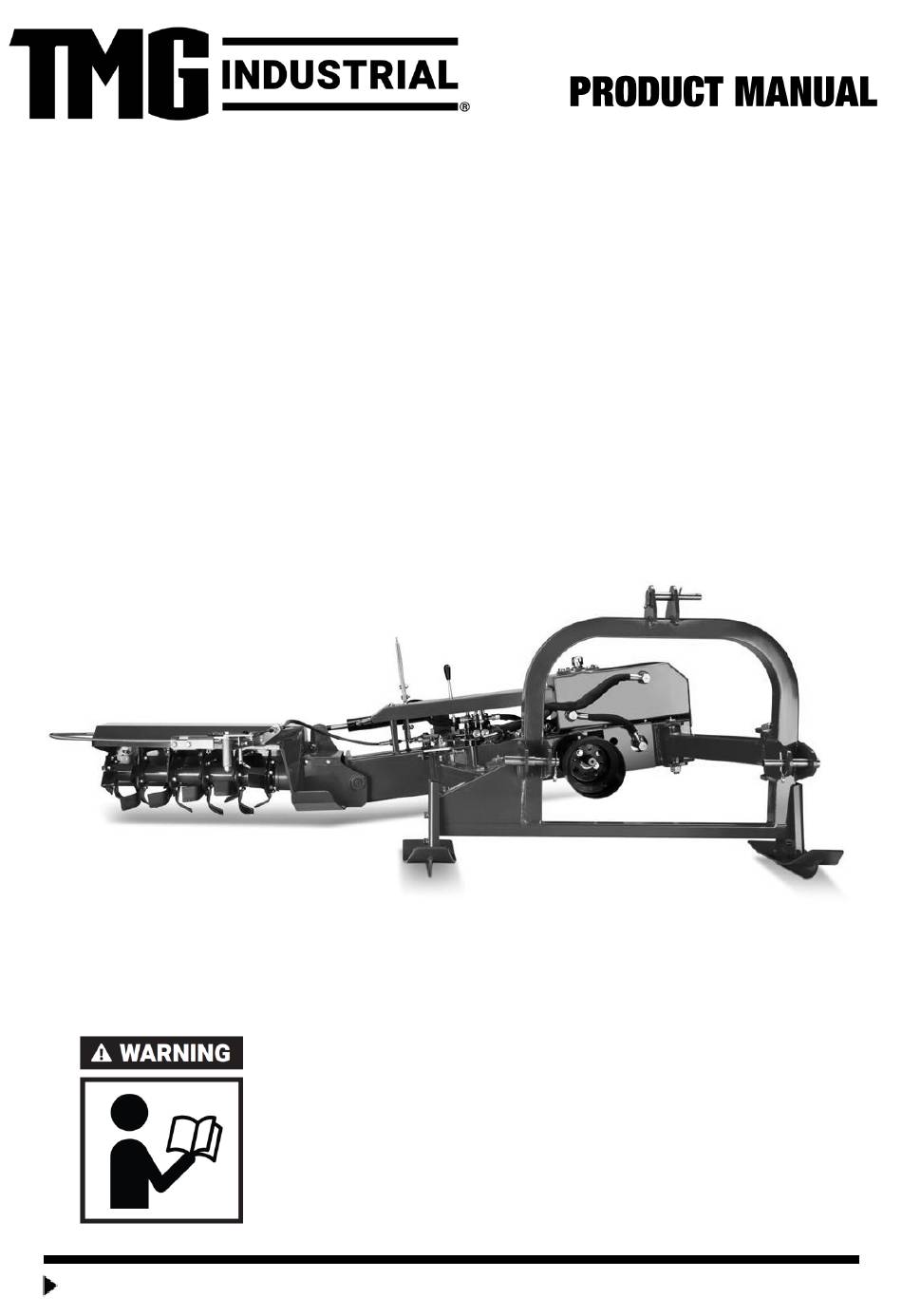

OFFSET ROTARY TILLER
SIDE TILLER OBSTACLE
www.tmgindustrial.com
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
17/17
TMG-RTO70
v.2024.10.5
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INDUSTRIAL TMG-RTO70 and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG INDUSTRIAL TMG-RTO70

  • Page 1 TMG-RTO70 v.2024.10.5 OFFSET ROTARY TILLER SIDE TILLER OBSTACLE • Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly •...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................2 SECURITY MEASURES ........................2 SYMBOLS ............................2 GENERAL SAFETY RULES ........................3 TECHNICAL PARAMETERS ........................ 4 STRUCTURE AND PRINCIPLE ......................5 INSTALLATION AND ADJUSTMENT ....................5 USE AND OPERATION ........................8 MAINTENANCE ..........................8 FAULTS AND TOUBLESHOOTING METHODS ..................
  • Page 3: Introduction

    INTRODUCTION Thank you for using TMG industrial RTO series Offset Rotary Tiller. This product is a new type of inter-plant rotary tiller designed and manufactured by our company in accordance with the requirements of orchards use , and passed strictly test.
  • Page 4: General Precautions

    It is necessary to review the owner's manual before any steps in operating the machine. General Precautions! Before Operation, Read the following carefully. Read the manual before operate the machine.  Take precautions to prevent hair, jewelry, and loose clothing from getting caught in the moving parts of the machine. ...
  • Page 5: Technical Parameters

    Safety Signs on the side of the machine TECHNICAL PARAMETERS Model TMG-RTO70 Working Width(cm) Power(hp) 40-60 PTO Type Ⅰ/Ⅱ Blades 18+15 Weight(kg) 135 cm 201 cm UP:15° Down:11° www.tmgindustrial.com 4/17 TOLL FREE:1-877-761-2819...
  • Page 6: Structure And Principle

    STRUCTURE AND PRINCIPLE RTO series inter-plant Rotary Tiller is mainly composed of gearbox assembly, frame assembly, rotary cultivation components, hydraulic system, etc.: 1 、Frame 2、Rotary parts 3 、Hydraulic tank 4、Gearbox Assembly 5、Hitch 6、Swing Arm 7、 Linkage Rod 8、Directional Valve 9、Cylinder for swing 10、Cylinder for lifting RTO series inter-plant tillers are orchard inter-plant Rotary Tiller and soil loosening machines driven by tractor.
  • Page 7 3. Install the hitch on the corresponding position of the swing arm, fill the butter See the attached drawing, ; ①Gasket ②Bearing ③Pin 4. Assemble the linkage Rod, adjust to the corresponding position of the hood, first insert the right-angle pin into the position shown in the right figure, then install the pull wire and the joint fork at the position shown in the figure, and adjust the thread to tighten the pull wire through the pull wire;...
  • Page 8 7. Fill gearbox oil(Model:SAE.90EP), see the below photo, add gearbox oil until the oil flows out from the plug for gearbox oil level. 8. Pay attention to the warning stickers on each greasing point. Before starting the machine, please make sure lubricate each grease point with grease or oil according to requirement on the warning stickers.
  • Page 9: Use And Operation

    USE AND OPERATION Start When the whole machine is raised, first combine the power output shaft, gently loosen the clutch pedal, and operate the hydraulic mechanism to make the whole machine gradually enter the ground, and increase the throttle until it works normally.
  • Page 10: Faults And Toubleshooting Methods

    FAULTS AND TOUBLESHOOTING METHODS F au l t s Reasons Solutions 1.Bearing Damage 1. Replace Blade axle not 2. Deformation of Blade shaft dust ring 2. Calibrate or Replace working 3.Blade shaft bending 3. Calibrate or Replace 4.The blade shaft is seriously clogged with mud 4.
  • Page 11: Parts Illustrations

    PARTS ILLUSTRATIONS (Figure A) www.tmgindustrial.com 10/17 TOLL FREE:1-877-761-2819...
  • Page 12 (FIGURE A) PARTS DETAILS Name & Specification Left rocker welding Circlip for shaft 20 Oscillating Limit Welding Left limit foot Lower suspension pin Lock pin 4.5 Limit pin R pin 3.5 Suspension welding Upper suspension pin Bolt M12×30 Spring lock washer 12 Plain washer 12 Right limit foot Oil cup M8×1...
  • Page 13 (Figure B) www.tmgindustrial.com 12/17 TOLL FREE:1-877-761-2819...
  • Page 14 (FIGURE B) PARTS DETAILS Name & Specification Lock nut M10 Bolt M10×35 Left blade Linkage Lower platen weldment Twin pole bracket Nut M12 Bolt M12×40 Spring lock washer 10 Plain washer 10 Bolt M10×45 Round head square neck bolt M10 × 25 Lock nut M16 Plain washer 16 Adjustment plate...
  • Page 15 (Figure C) www.tmgindustrial.com 14/17 TOLL FREE:1-877-761-2819...
  • Page 16 Name & Specification Oil tank welding paper pad Sealing flange Plain washer 8 Spring lock washer 8 Bolt M8×20 hydraulic air filter hydraulic oil filter Circlip for shaft 25 shield support pin upper shield Bolt M6×75 Plain washer 6 Lock nut M6 two-way reversing valve deflection cylinder valve control connecting plate...
  • Page 17 (Figure D) www.tmgindustrial.com 16/17 TOLL FREE:1-877-761-2819...
  • Page 18 Name & Specification Bolt G1/2 Pad G1/2 suction pipe oil in gate pad 20 gear pump pad 18 oil out gate in-out oil return pipe two-way reversing valve trasition connector bolt M18*1.5 trasition connector long oil pipe for big cylinder short oil pipe for big cylinder bolt M12*1.25 defelction cylinder...
