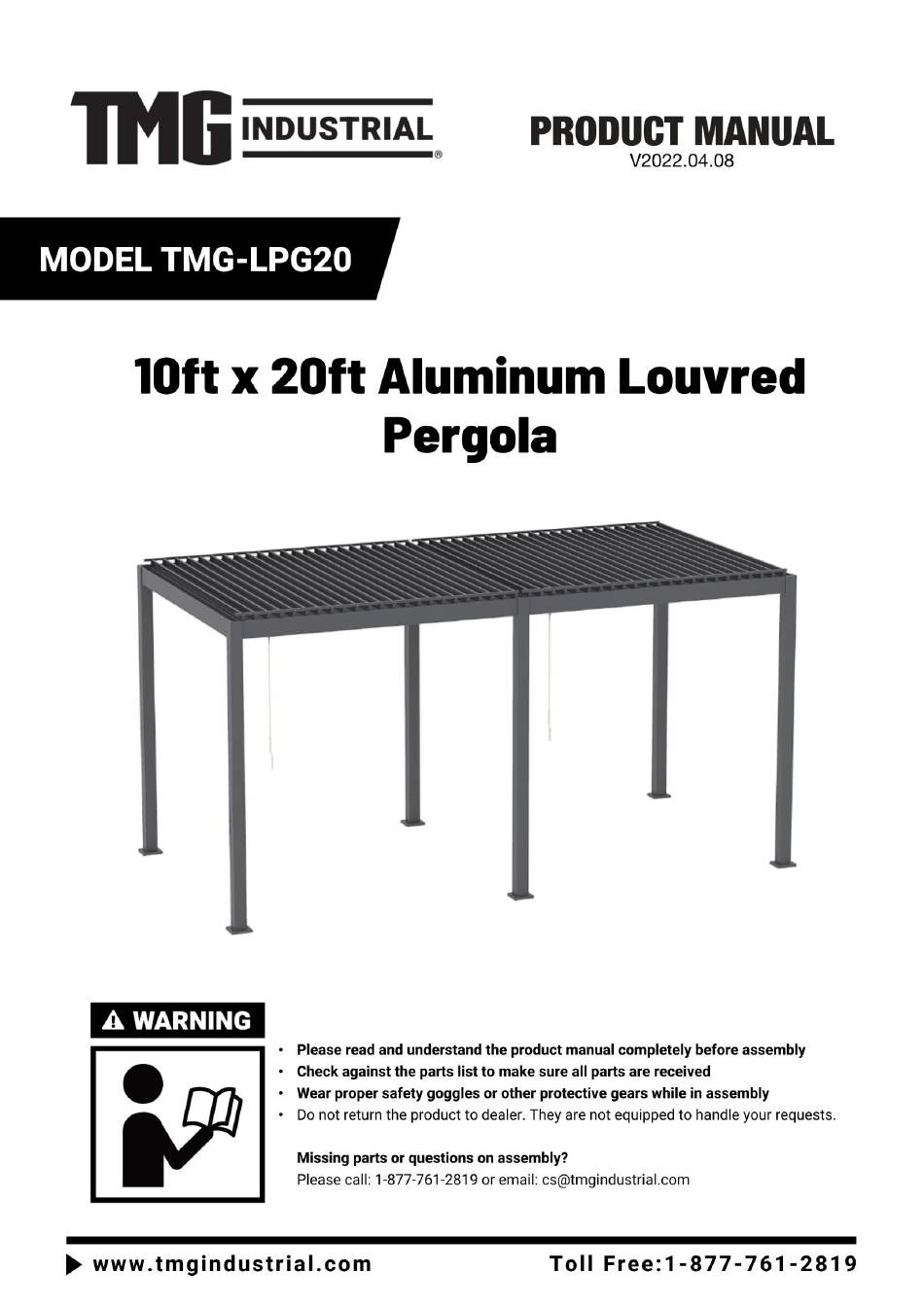

TMG -LPG20 Product Manual

10ft x 20ft aluminium louvred pergola

Advertisement

Quick Links

Main specifications
 Overall assembled size : W4.88 x L7.5x H3.05 (m) / 16 x 24 x 10 (ft)
 Front door : W3.6 x H2.0 (m) / 11.8 x 6.56 (ft)
 Side door: W0.9 x H2.0 (m) / 2.95 x 5.56 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is very important to
follow your local safety regulations and industry standards during installation.
Regulations may include but are not limited to:
Safety helmets, protective eyewear, and clothing
-
Safety harnesses for all elevated workers
-
Proper ladder, cage, and safety operation
-
Check all components and parts before installation. All parts are marked with a part number,
please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make
any alterations to the structure. Do not hang any weights on the frame during installation,
including parts. We are not responsible for any
Main Specifications:
 Assembly size : W2.95 x L5.79 x H2.5 (m) / 10ft x 20ft x 8ft
Prior to assembly
Main Specifications:
 Assembly size : W2.95 x L5.79 x H2.5 (m) / 10ft x 20ft x 8ft
www.tmgindustrial.com
P0 /11
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-LPG20 and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-LPG20

  • Page 1 Main specifications  Overall assembled size : W4.88 x L7.5x H3.05 (m) / 16 x 24 x 10 (ft)  Front door : W3.6 x H2.0 (m) / 11.8 x 6.56 (ft)  Side door: W0.9 x H2.0 (m) / 2.95 x 5.56 (ft) Prior to assembly Please read the instructions carefully before installation.
  • Page 2 Main Specifications:  Assembly size : W2.95 x L5.79 x H2.5 (m) / 10ft x 20ft x 8ft Prior to assembly Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to: Safety helmets, protective eyewear, and clothing Safety harnesses for all elevated workers...
  • Page 3 TMG-LPG20 Part List Parts Graphical Description Length code Post 110X110mm Base cover 190X190mm Base footing plate 170X170mm Base footing screw 4X35mm Expansion bolt M8X7mm Post cover 110X110mm Post cover screw 4X16mm Small cover 18X18X2 Beam B1-Beam 80X140mm B1-B4 Rubber plug...
  • Page 4 Front breakwater 65*15mm Front breakwater screw 4*16mm Rear breakwater 125*26mm Rear breakwater screw 4*16mm Hexagon spanner Pergola remote control Small rubber hammer 26*6*2mm Cross head 65mm Auger 3.4mm Silicon sealant 120ml Hand crank 1600mm Beam connection 105*35*2mm Aluminium tube 80*30*1mm ►...
  • Page 5 Step 1:Install Base footing plate and Beam  Lay the post A1 flat, install base cover A2 and base footing plate A3 on all post A1, and drilling base footing screw A4.  Install the beam, insert the ends of beam B1 into two post A1, and tighten the screws. This step applies to the Beam B3.
  • Page 6 Step 2: Install Beam B2&B2-1  Connect the Beam B2 and B2-1 with Beam connection B10. Align with four holes and install them on middle Post A1 with fixed drills.  Secure the Beam B2 and Beam B2-1 to Post A1. Parts Graphical code...
  • Page 7 Step 3:Install Beam B4&B4-1  Connect the Beam B4 and B4-1 with Beam connection B10. Align with four holes and install them on middle Post A1 with fixed drills.  Secure the Beam B4 and Beam B4-1 to Post A1. Parts Graphical code...
  • Page 8 Step 4: Install Aluminium tube A9.  Install Aluminum tube A9 on the two middle Post A1 Parts Graphical code ► www.tmgindustrial.com P7 /11 Toll Free:1-877-761-2819...
  • Page 9 Step 5: Install Base footing plate A3  Measuring base distance,make the parallel distances and the diagonal distances equal.  Secure the base footing plate A3 with expansion bolt A5. Parts Graphical code www.tmgindustrial.com P8 /11 Toll Free:1-877-761-2819 ►...
  • Page 10 Step 6: Install Blades C1-C43.  Install the blades C1--C43 in sequence, and drill the sliding pin screw B7 into sliding pin B6 to fix it.  Connect all the blades with L shape aluminum D1 & D2, and plug R-shape pin E as shown.
  • Page 11 Step 7:Install Front breakwater F1 and Rear breakwater G1 Parts Graphical code ► www.tmgindustrial.com P10 /11 Toll Free:1-877-761-2819...
  • Page 12 Step 8: Install Post cover A6 Parts Graphical code www.tmgindustrial.com P11 /11 Toll Free:1-877-761-2819 ►...
