EN

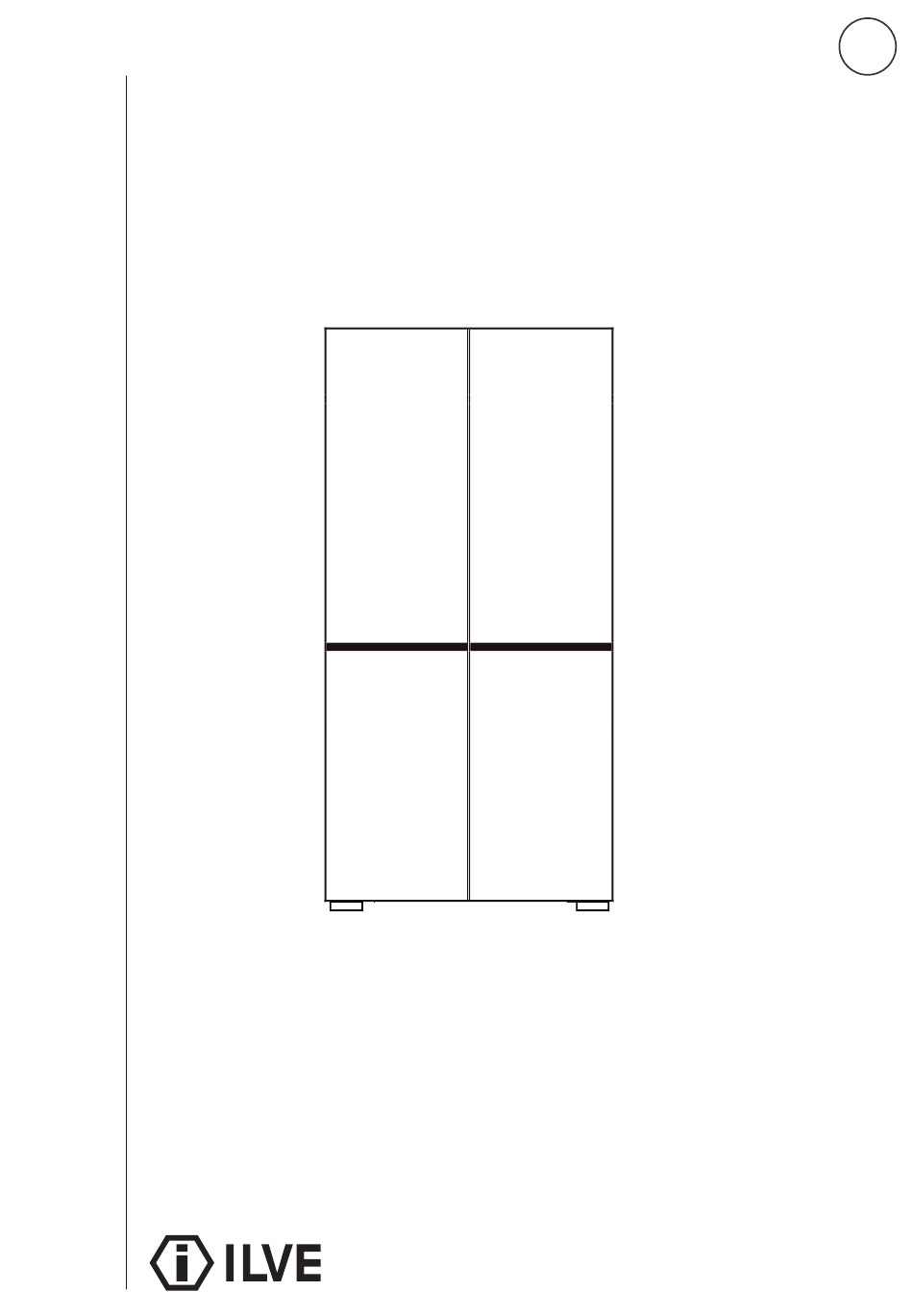

REFRIGERATOR
R96BICD
USER – Use and Maintenance
INSTALLER – Installation and Maintenance
cod. EI33960750000EN
31/2024
EB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R96BICD and is the answer not in the manual?

Questions and answers

Related Manuals for ILVE R96BICD

Summary of Contents for ILVE R96BICD

  • Page 1 REFRIGERATOR R96BICD USER – Use and Maintenance INSTALLER – Installation and Maintenance cod. EI33960750000EN 31/2024...
  • Page 3 INDEX USER IMPORTANT SAFETY WARNINGS Basic safety symbol Safety and warning information INSTRUCTIONS FOR USE Product features Operation CLEANING AND MAINTENANCE TROUBLESHOOTING INSTALLER INSTALLATION Preparation before Installation Installation instructions of cabinet and refrigerator...

  • Page 4: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS CAUTION - This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 USER IMPORTANT SAFETY WARNINGS 13. WARNING: Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance. 14. WARNING: To avoid contamination of food, please respect the following in- structions: - Opening the door for long periods can cause asignificant increase of the tempe- rature in the compartments of the appliance.
  • Page 6 IMPORTANT SAFETY WARNINGS Basic safety symbol This guide contains many important safety messages. Always read and obey all safety mes- sages. This is the safety alert symbol.It alerts you to warnings that will inform you of any potential ha- zards that could hurt or kill you. These messages will also help protect your unit from damage. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER,WARNING,or CAUTION.

  • Page 7: Safety And Warning Information

    USER IMPORTANT SAFETY WARNINGS Safety and warning If you believe there is refrigerant leaking, do not touch the unit or the power outlet, ven- information tilate the room and if possible turn your unit off using the circuit breaker. Call the manu- facturer immediately.
  • Page 8 IMPORTANT SAFETY WARNINGS - catering and similar non- retail applications. Do not install the fridge in a wet or high humidity environment.Failure to do so will cause premature deterioration, cause the unit to run more frequently and can cause an electri- cal shock.

  • Page 9: Product Features

    USER INSTRUCTIONS FOR USE Product features This unit container super freeze, energy-savings, noise reduction, optimal refrigeration are preset options for your unit. Precise temperature Microcomputer control systems are able to separately control both the fridge and freezer control more accurately. Automatic defrosting This unit is equipped with a program that controls the frequency and duration of defrosting your freezer.
  • Page 10 INSTRUCTIONS FOR USE Product features Components The layout of items below are subject to change without notice, and may not look or come setup as seen in the picture below. • The appearance and specifications of the actual product may differ depending on the model. You will achieve the most efficient use of energy for your appliance if you combine the drawers, glass shelves and door shelves as shown in the Product components page.

  • Page 11: Refrigerator Compartment

    USER INSTRUCTIONS FOR USE Product features Refrigerator compartment The fridge compartment should mainly be used to store food that will be consumed in a short time. Freezing compartment The freezing chamber is used to freeze foods,store deeply frozen foods and make ice cubes. lt can preserve foods for a long time.
  • Page 12 INSTRUCTIONS FOR USE Product features Basic dimensions (refrigerator + cabinet) Cabinet hole size (mm) Width Depth ≥ 580 Height 2000 956*572*1996 Refrigerator dimensions (L*P*H) Ø DEL FORO ≥ 50 200 mm 30 mm ≥ 10 H100 Tie bar Ventilation of appliance, clearance showed below shall be instructed. Clearances mm Left side Right side...
  • Page 13 USER INSTRUCTIONS FOR USE Product features Ref: door plate thickness B (mm) Refrigerator door plate Soacing X (mm) thickness A (mm) Full lap 1 Full lap 2 16 - 20 21 - 22 For example, the design clearance should be 4 mmwhen the thickness of external door plate is 20 mm. The width of cabinet door plate is 496 mm in full lap mode 1, or 494 mm in full lap mode 2.

  • Page 14: Operation

    INSTRUCTIONS FOR USE Operation Control panel Temp. Temp. Temp. Temp. adjust button adjust button adjust button adjust button Ultra freezer Quik freezer Freezer Fridge Flex Lock button button button zone button zone button zone button Quick cool zone button Feature selection & Fridge zone temperature setting range: 2°C -8°C;...
  • Page 15 USER INSTRUCTIONS FOR USE Operation Under the quick cool mode, the set temperature shown on the display is 2°C; The quick cool mode can be exited after a continuously running for 150min or when the button is touched again, and the icon above this button will be Off. LOCK button: The display will be locked or unlocked by pressing and holding this button for 3s.
  • Page 16 INSTRUCTIONS FOR USE Operation Instructions for When storing freezing foods, put them to the inside of freezing chamber, other than the storing foods bottle rack. Do not put bottled or canned foods into the freezing chamber to prevent frost cracking. Before putting hot foods into the refrigerator, cool them to room temperature first;...

  • Page 17: Freezing And Storing Food In The Freezer Compartment

    USER INSTRUCTIONS FOR USE Operation The following tips show you how you can store foods in your appliance to keep them in the best possible condition over the longest possible period. This will mean that you avoid food waste: - Upper door shelves: Cheese and spreadable butter - Middle door shelves: Jams, jars, small bottles, tubes and eggs - Lower door shelves: Drinks cartons and bottles.
  • Page 18 INSTRUCTIONS FOR USE Operation Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). FOOD STORAGE TIME Bacon, casseroles, milk 1 month...

  • Page 19: Cleaning And Maintenance

    USER CLEANING AND MAINTENANCE Defrosting This production has automatic defrosting function, without manual operation. Cleaning Precautions for internal and external cleaning of refrigerator: - Before cleaning, always turn off the power switch, disconnect the power plug. During cleaning, make sure that no water will enter the switch, control panel, doorlamp and top control box.

  • Page 20: Treoubleshooting

    TREOUBLESHOOTING Normal phenomena Button failure Controllare il pannello di controllo per verificare che non sia attiva la funzione blocco. In questa modalità tutti i pulsanti sono disabilitati. Low voltage,the compressor can’t start You should purchase pressurizer of more than 1000W when the area of the appliance installation,that’s better to protect your fridge.
  • Page 21 USER TREOUBLESHOOTING Before calling for service, review this list. It maysave you both time and expence. This list includes common occurences that are notthe result of defective workmanship or meterials in this appliance. FAULT POSSIBLECAUSE REMEDIAL ACTION No display on the display The mains plug of the appliance is not in the Check whether the power is on.

  • Page 22: Installation

    INSTALLATION Glass shelves 1. Grasp the front end of the glass shelf with both hands,Lift up as a whole until the glass is resting. The rear end of the frame cannot be lifted (at the limit position),At this point, the glass shelf claws are completely detached,Remove the card slot and lift the glass throu- ghout the entire process.

  • Page 23: List Of Installation Accessories

    INSTALLER INSTALLATION Notes before Installation Please follow the installation steps and requirements of the refrigerator (the Product) below, to ensure its normal functioning. Installation of power supply Do not place the Product under direct sunlight, or near the heating electric appliance, such as hearth, oven or dish-washing machine.
  • Page 24 INSTALLATION Installation tools Installation tools (the following installation tools are carried by professional installers) 1. Allen wrench (M3); 2. Electric gun; 3. Tape; 4. Hexagon nut wrench; 5. Tooling platei; 6. Limit guide piece; Cabinet inspection 1. Check if the dimensions of cabinets and door plate conform to the requirements (refer to the dimension drawing);;...
  • Page 25 INSTALLER INSTALLATION Instructions of cabinet and refrigerator Warning: The Product should be installed and fixed by specification to avoid hazards due to instability. Fixation of refrigerator and 1. Open the Product’s door, insert the 4 guide pieces into the two holes of upper and lower cabinet four hinges (guide pieces are not placed in the four hinges inside the Product), (refer to Fig.
  • Page 26 INSTALLATION Instructions of cabinet and refrigerator Rotate the nuts on adjustment pin with a hexagon nut wrench clockwise to uplift the front part of the Product, or rotate the nuts anticlockwise to lower the front part. Adjustment is done when both upper and lower limit guide pieces are fitted with the cabinet surface (Refer to Fig.
  • Page 27 INSTALLER INSTALLATION Instructions of cabinet and refrigerator 1. Install the door handle onto the cabinet door. 2. Measure the distance from fixing plate to cabinet top with a tape. 3. Firstly, install the two cabinet doors on the Product, loose and remove the hexagon flange nut.
  • Page 28 INSTALLATION Instructions of cabinet and refrigerator Put one end of tooling plate against the handle side, insert the installed cabinet fixing plate into the corresponding slots of tooling plate, put the other cabinet fixing plate into the cor- responding slots of tooling plate; then fix the cabinet fixing plate and door with flat head self tapping screws (refer to Fig.
  • Page 29 INSTALLER INSTALLATION Instructions of cabinet and refrigerator Adjustment of cabinet 1. Vertical adjustment of cabinet door: Rotate the refrigerator adjustment bolts clockwise/ door anticlockwise with an Allen wrench, to move the cabinet door up or down. 2. Horizontal adjustment of cabinet odor: Rotate the lateral set screws of refrigerator door clockwise/anticlockwise with an Allen wrench, to move the cabinet to the left or right.
  • Page 30 INSTALLATION Instructions of cabinet and refrigerator 2. Fasten the lateral set screws and hex socket set screws on refrigerator door (refer to Fig. 10). Hex socket set screw Allen wrench Set screw (Fig.10) 3. Slightly loosen the fixed hex socket set screws of lower fixing plate and refrigerator door, until the lower fixing can be moved to all directions;...
  • Page 31 INSTALLER INSTALLATION Instructions of cabinet and refrigerator Installation of refrigerator 1. Insert the upper/lower decoration hood to the upper/lower edge clip of the Product re- accessories spectively Upper decoration hood Lower decoration hood (Fig.12) (Fig.13) (Refer to Fig. 12, 13) 2.
  • Page 32 ILVE S.p.A Via Antoniana 100 35011 Campodarsego Padova – Italia T. +39 049 9200990 www.ilve.com F. +39 049 9201010...
