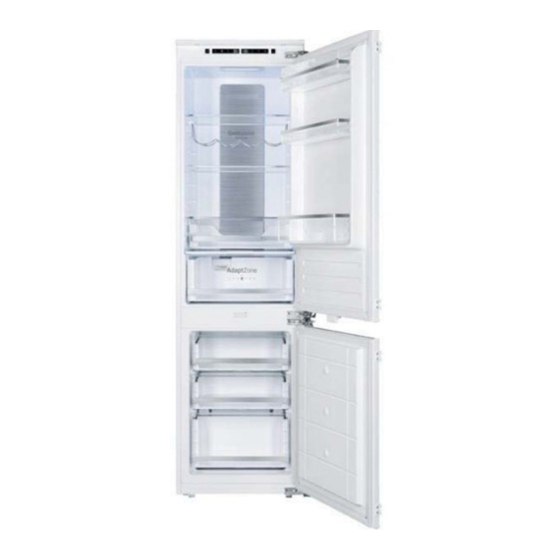

- Page 1 INTEGRATED FRIDGE - ILREF256I/R2 & ILREF256I/L2 USER MANUAL...
- Page 2 FREE MASTERCLASS Although we encourage you to dive right in, as the owner of a brand new ILVE oven we’d also like to invite you to attend a complimentary 2 hour masterclass. As part of the class you’ll learn how to prepare and cook a number of delicious signature ILVE dishes, not to mention our top tips for getting the most out of your ILVE oven.
- Page 5 OPEN 24 ILVE ACCESSORIES ONLINE SHOP For a wide range of Genuine ILVE accessories at the click of a button go to ilve.com.au...
-
Page 6: Table Of Contents
Contents: Important information Important safety and usage instructions Before first use General use of the fridge Crisper drawer humidity adjustment / Fresh Zone General use of the freezer Storage Control panel Defrosting the freezer / fridge Care and cleaning Troubleshooting Installation preparation Cabinet dimensions Ventilation requirements... -
Page 7: Important Information
Important Information The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that we reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had... - Page 8 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must not be disposed of as urban waste. The refrigeration system contains insulating gases and refrigerants, which require specialised waste disposal. The valuable materials contained in this appliance can be recycle.
- Page 9 Important af t an In tr tion Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products.
-
Page 10: Before First Use
Before first use You must allow the fridge to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. -
Page 11: General Use Of The Fridge
General use of the Fridge Never put liquids in the refrigerator uncovered. Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator. Nothing should rest against the rear wall of the refrigerator. Make sure food is clean and any extra water is wiped away before putting into the fridge. -
Page 12: Crisper Drawer Humidity Adjustment / Fresh Zone
Crisper drawer humidity adjustment The crisper drawer within this appliance features a humidity level adjustment slider. Vegetables and similar produce that are subject to wilting (e.g. rocket, spinach leaves, herbs such as basil etc.) should be kept in the crisper drawer and the adjustment slider kept closed (fully to the left - high). -
Page 13: General Use Of The Freezer
General use of the Freezer The freezer compartments are designed to store only frozen food. Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer. Follow the instructions on the food packaging for storage of frozen food. -
Page 14: Storage
Storage The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended. As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type. -
Page 15: Control Panel
Control Panel Display Fig. 3 A. Fresh Zone temperature adjustment sensor This button is used to adjust the temperature within the Fresh Zone. Press this button once to alter the display to show the current temperature in the Fresh Zone, and then as many times as necessary until the desired temperature is selected. - Page 16 D. Fridge temperature adjustment This button is used to adjust the temperature within the fridge. Press this button once to activate adjustment, and then as many times as necessary until the desired level is selected Display This is where you can see the current temperature in the fridge (left) and freezer (right) E.
-
Page 17: Defrosting The Freezer / Fridge
Defrosting the freezer The freezer has a no frost system which is designed to prevent the heavy build up of ice. Under normal use, there should be no need to regularly defrost the freezer system. To help in times of service or cleaning, the appliance has a forced defrost mode which can be activated by pressing and holding buttons E and H in Fig. -
Page 18: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly. Clean the shelves and balconies separately by hand with a mild solution of washing up liquid and water. -
Page 19: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling the Customer Care. If the appliance is not working, check: That there is power to the appliance. The house fuses are intact and the fuse in the plug has not blown. - Page 20 If excessive ice has formed in the freezer: Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced or the appliance is incorrectly fitted and this can be due to the decor door(s) not being properly fitted.
-
Page 21: Installation Preparation
Installation Preparation This appliance must never be installed close to heat sources, e.g. heating elements, cookers or in damp places. • To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance. •... - Page 22 Fig. 6 Important Please follow the instructions to install this unit. The diagrams show the ventilation requirements for your appliance. Failure to provide adequate ventilation can lead to increased running costs and premature failure and may invalidate The warranty provided with the appliance.
-
Page 23: Cabinet Dimensions
Cabinet Dimensions Fig. 7 Ventilation Hole Indicates required AirFlow... - Page 24 Ventilation The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive power consumption and total system failure. For products intended to be installed into a tall housing unit, the following requirements need to be met: A ventilation hole is required in the plinth of the unit (Fig.7),this...
-
Page 25: Installation Into The Cabinet
Installation into the cabinet With the help of another individual, or two, manoeuvre the appliance into the cabinet. There are two metal plates at the base of the appliance. Fit the supplied white spacers (Fig. 8) to these plates, as per Fig. 9. Fig. -
Page 26: Mounting The Fascia Doors
Mounting the Fascia Doors Ensure that there is a gap of 3 to 4mm between the non-hinged side and the cabinet wall. Locate the slider in the bracket and fix the slider to the fascia door 20 to 22mm from the edge of the fascia as shown in Fig. 11, ensuring that the slider is positioned centrally and horizontally within the bracket. - Page 27 Once complete, and if you are happy with the fit of the appliance in the cabinet, bend and snap the parts of the white spacers marked ‘S’ as shown by the dotted outline in Fig. 14. Leave the rest of the spacer cover in place over the metal plates.
-
Page 28: Reversing The Appliance Doors
Reversing the Doors We recommend you seek the help of another individual to support the doors whilst performing this operation. Carefully prise off the cover cap for the top hinge and unscrew the screws fixing the top hinge to the appliance, you should support the upper door whilst doing this. -
Page 31: Climate Range
Climate range The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is room temperature in which the appliance is working) is optimal for the operation of the appliance. Climate class Allowable ambient temperature This refrigeration appliance is intended for... -
Page 32: Practical Tips
Practical tips Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. The coldest area is directly above the vegetable drawers. Use this area for all delicate and highly perishable food such as: Fish, meat, poultry Sausage products, ready meals Dishes or baked goods containing eggs or cream... - Page 33 REGISTER YOUR WARRANTY ONLINE NOW GO TO: ilve.com.au > support > product registration As a part of our continued customer service offering, you can now register your ILVE products online at ilve.com.au > support > product registration Just follow our simple online registration process.
- Page 34 We ask that you complete the installation; enclosed Warranty Registration Card and return it to us so that we have a record of the ILVE (d) use or operation after a defect has occurred or product purchased by you, Alternitivley, you can been discovered;...
- Page 35 Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ILVE on 1300 85 64 11) ILVE Operating Manual 01072021...
- Page 36 LUXURY KITCHEN APPLIANCES 1/42 Cavendish Rd Coorparoo, QLD 10/55 Howe St Osborne Park, WA 48-50 Moore St Leichhardt, NSW NATIONAL SERVICE CENTRE Our high quality appliances are designed and manufactured to give you many years of cooking pleasure. Should you have any questions or issues with your appliance please email our national service centre customercare@eurolinx.com.au or phone us on 1300 85 64 11.
