Instructions For Assembling MECO OMAHA
SERIES 3000 HEAVY DUTY CANTILEVER RACK,
SERIES 4000 STANDARD HEAVY DUTY CANTILEVER RACK
and SERIES 5000 EXTRA HEAVY DUTY CANTILEVER RACK
MODERN EQUIPMENT COMPANY
6161 ABBOTT DRIVE, OMAHA, NE 68110
www.meco-omaha.com
1-800-228-7334
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Meco OMAHA 3000 Series
Summary of Contents for Meco OMAHA 3000 Series

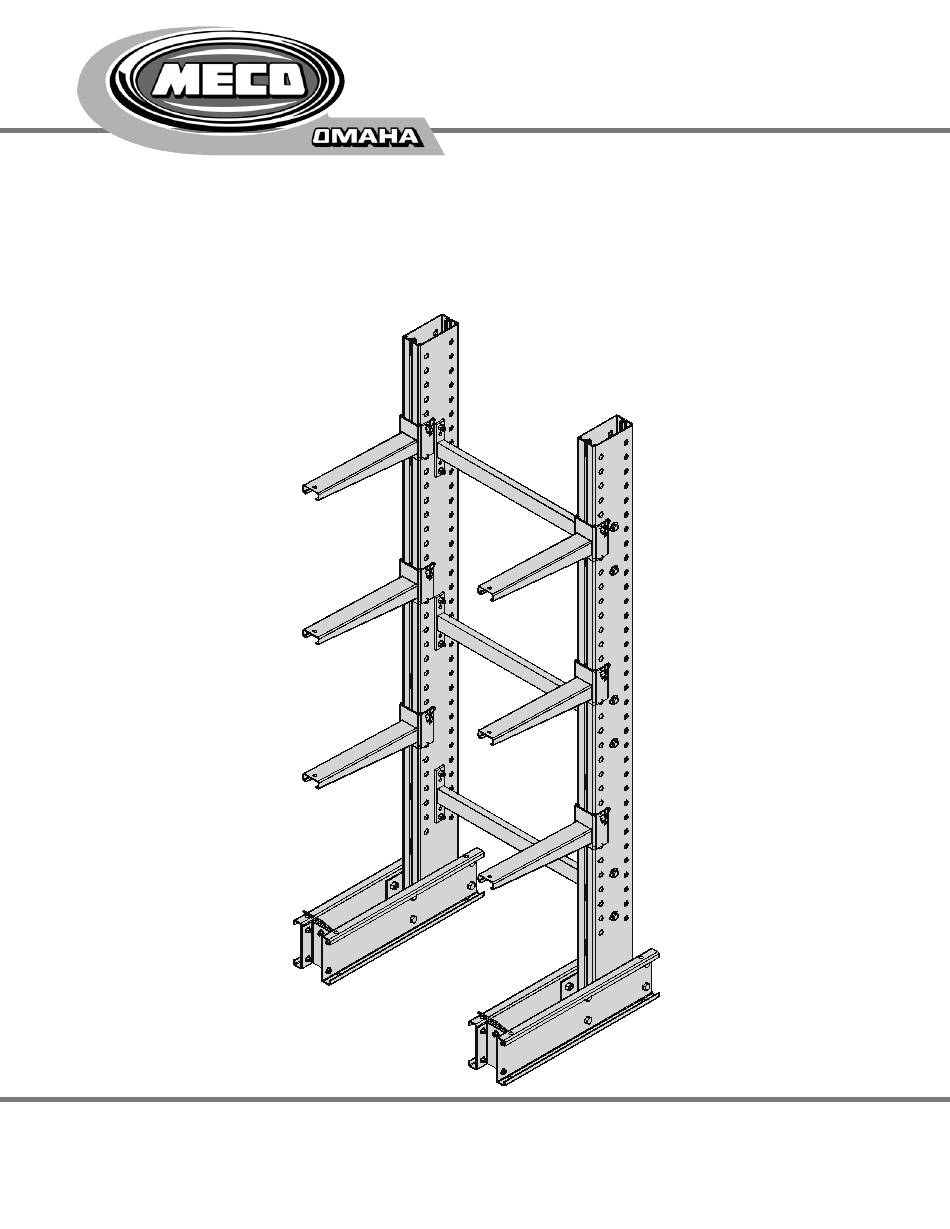

- Page 1 Instructions For Assembling MECO OMAHA SERIES 3000 HEAVY DUTY CANTILEVER RACK, SERIES 4000 STANDARD HEAVY DUTY CANTILEVER RACK and SERIES 5000 EXTRA HEAVY DUTY CANTILEVER RACK MODERN EQUIPMENT COMPANY 6161 ABBOTT DRIVE, OMAHA, NE 68110 www.meco-omaha.com 1-800-228-7334...
-
Page 2: Maintenance
Page 2 of 7 IMPORTANT! Review this entire booklet thoroughly before proceeding with assembly of rack This rack system should be professionally installed by individuals familiar with this type of structure. Any modification to the rack during or after its assembly may affect the rack’s structural integrity. General Assembly Procedure Upright should be installed on a level surface. - Page 3 Page 3 of 7 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 3000 HEAVY DUTY, SERIES 4000 STANDARD HEAVY DUTY AND SERIES 5000 EXTRA HEAVY DUTY CANTILEVER RACKS DO NOT SUBSTITUTE HARDWARE TIGHTEN FINGER TIGHT ONLY AT THIS STEP Refer to DIAGRAM A for a single 2.) Attach the base end to the front of the base channel...
- Page 4 Page 4 of 7 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 3000 HEAVY DUTY, SERIES 4000 STANDARD HEAVY DUTY AND SERIES 5000 EXTRA HEAVY DUTY CANTILEVER RACKS Attach horizontal braces to upright as shown in DIAGRAM C and DIAGRAM D using ”...
- Page 5 Page 5 of 7 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 3000 HEAVY DUTY, SERIES 4000 STANDARD HEAVY DUTY AND SERIES 5000 EXTRA HEAVY DUTY CANTILEVER RACKS Bracing for models See DIAGRAM H 4B96XX & 4B120XX DIAGRAM E DIAGRAM F DIAGRAM G...
- Page 6 Page 6 of 7 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 3000 HEAVY DUTY, SERIES 4000 STANDARD HEAVY DUTY AND SERIES 5000 EXTRA HEAVY DUTY CANTILEVER RACKS Upright After attaching the SD Pin (HK-29) arm to the upright, lift up on the tip of the...
-
Page 7: Installation
Page 7 of 7 Cantilever Arm Installation Scan this QR Code to access the installation video. https://www.linkedin.com/company/mecoomaha/ https://www.facebook.com/mecoomaha https://www.meco-omaha.com...
