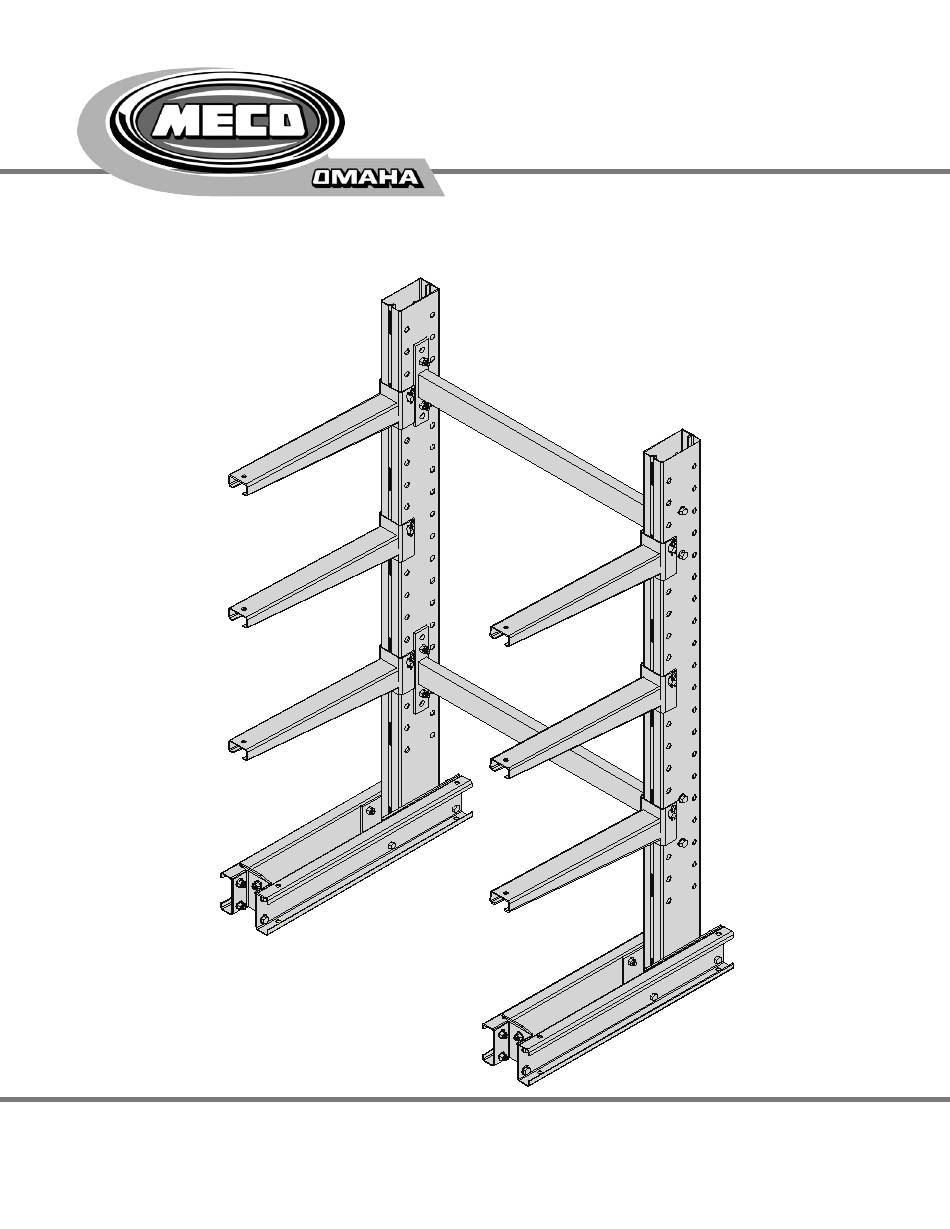

- Page 1 Instructions For Assembling MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACK MODERN EQUIPMENT COMPANY 6161 ABBOTT DRIVE, OMAHA, NE 68110 www.meco-omaha.com 1-800-228-7334...
-
Page 2: Maintenance
Page 2 of 6 IMPORTANT! Review this entire booklet thoroughly before proceeding with assembly of rack This rack system should be professionally installed by individuals familiar with this type of structure. Any modification to the rack during or after its assembly may affect the rack’s structural integrity. General Assembly Procedure Upright should be installed on a level surface. - Page 3 Page 3 of 6 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACKS DO NOT SUBSTITUTE HARDWARE TIGHTEN FINGER TIGHT ONLY AT THIS STEP Refer to DIAGRAM A for a single sided 2.) Attach the base end to the front of the base channel using bolts, nuts, and (4) flat washers.
-
Page 4: Lock Washer
Page 4 of 6 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACKS Attach horizontal braces to upright as shown in After two uprights have been assembled, begin DIAGRAM C and DIAGRAM D using ” tightening hardware in the manner described bolts. - Page 5 Page 5 of 6 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACKS Upright MD Pin (HK-18) After attaching the 3/8 Carriage arm to the upright, lift Bolt (HK-47) up on the tip of the MD keeper arm to seat the arm...
-
Page 6: Installation
Page 6 of 6 Cantilever Arm Installation Scan this QR Code to access the installation video. https://www.linkedin.com/company/mecoomaha/ https://www.facebook.com/mecoomaha https://www.meco-omaha.com...
