Technical data :
Power supply:
Operating frequency:
Transmission power:
Operating temperature:
Operating range:
Device specification:
PORTOS Drive control system
SRR-5T+
3V battery ( CR 2450 )
433 MHz
<10 mW
from -10 °C to +50 °C
Determined by the system architecture
and regulatory factors
LCD
DISPLAY
UP
STOP
DOWN
CHANNEL +
CHANNEL -
SRR-5T+
with a timer for S-SOLAR solar drives
USER MANUAL OF
remote controls
5-channel transmitter
P2
BATTERY
COMPARTMENT
MODE
BUTTON
TIME
BUTTON
Advertisement
Related Manuals for Portos SRR-5T+
Summary of Contents for Portos SRR-5T+

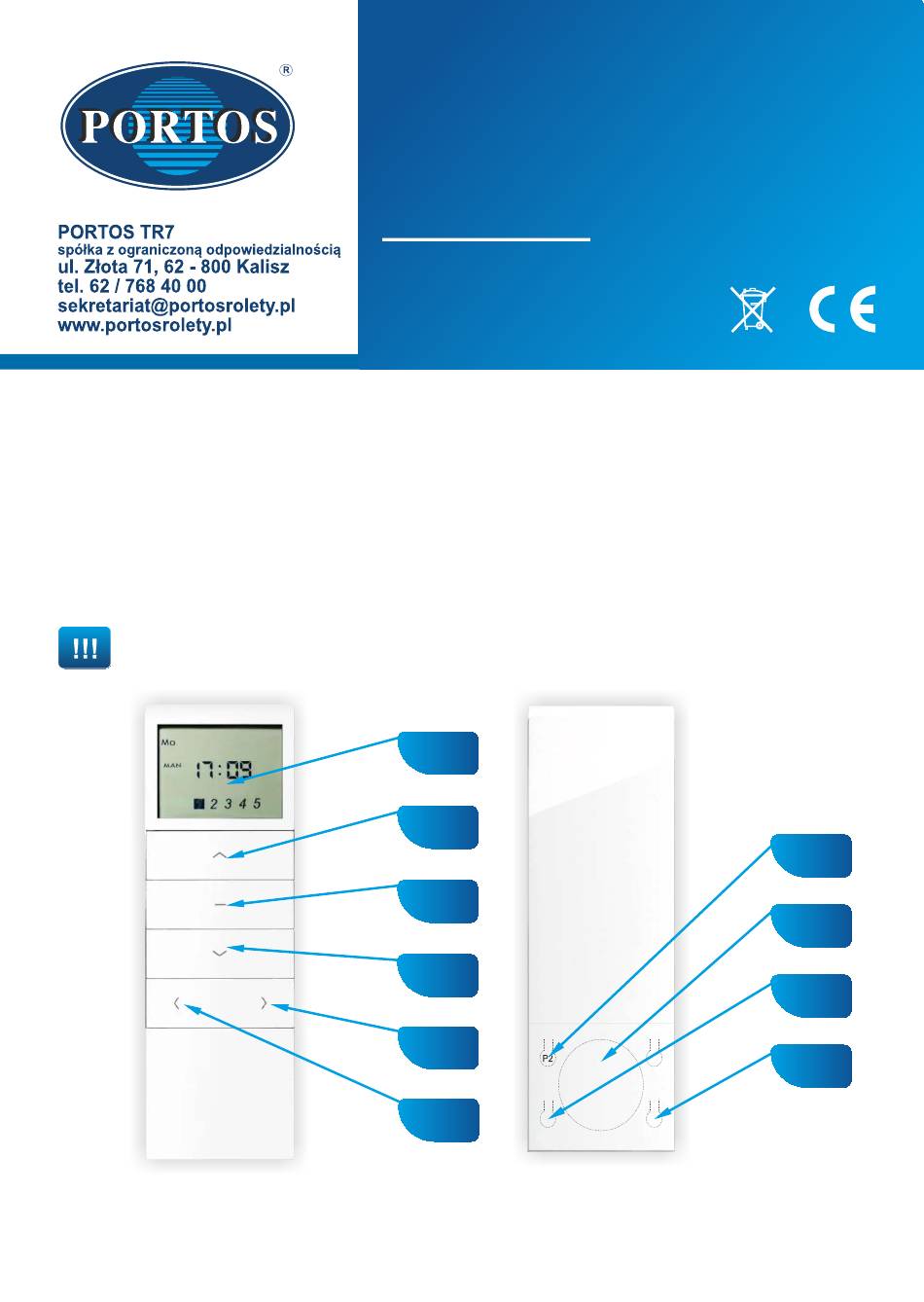

- Page 1 PORTOS Drive control system USER MANUAL OF SRR-5T+ remote controls Technical data : Power supply: 3V battery ( CR 2450 ) Operating frequency: 433 MHz Transmission power: <10 mW Operating temperature: from -10 °C to +50 °C Operating range: Determined by the system architecture...
-
Page 2: Device Description
1. Device description. 1. A group channel must be activated so that the transmitter could control all receivers. A group channel is activated if all channels are lit up. 2. Select the group channel on the transmitter and set the auto mode so that the devices programmed on all the channels could work at the programmed time. -
Page 3: Change The Mode
3. Change the mode. Available modes: .Manual mode (the display shows the MAN symbol): ordinary mode, time-controlled ź function is off. .Auto mode (the display shows the AUTO symbol): ordinary mode, time-controlled ź function is on. .Random mode (the display shows the AUTO symbol with a shield: time control is switched ź... - Page 4 3 seconds 3 seconds 5. Automatic opening and closing time set up. Time can be set only in the manual mode. The opening and closing time can be changed only in the auto mode. Time-controlled opening and closing must be set separately on each channel. An interval longer than 60 seconds between subsequent button presses will result in an automatic exit from the programming mode.
- Page 5 5. Use the UP or DOWN buttons to set the right selection. 6. Press the TIME button and hold it for 3 seconds to confirm the changes (the time on the display will stop blinking). 3 seconds 3 seconds 6. Function combination lock. Function combination lock prevents a user from accidentally pressing two buttons at the same time, which prevents introduction of any unintended change of the drive or radio receiver settings.
- Page 6 2. Press the P2 programming button. 3. Holding the P2 programming button, insert the battery. - if the display shows “1”, the transmitter operates in the Radio Portos-R mode - if the display shows “2”, the transmitter operates in the Radio+ mode...
- Page 7 2 seconds 2 seconds...
