Technical data :
Power:
Operating frequency:
Transmission power:
Operating temperature:
Operating range:
Device characteristics:
LED
PORTOS drive controlling system
The remotes operate
at 433 MHz
frequency
3V battery ( CR 2430 )
433 MHz
10 mW
from -10 ˚C to +50 ˚C
Determined by architectural
and regulatory factors

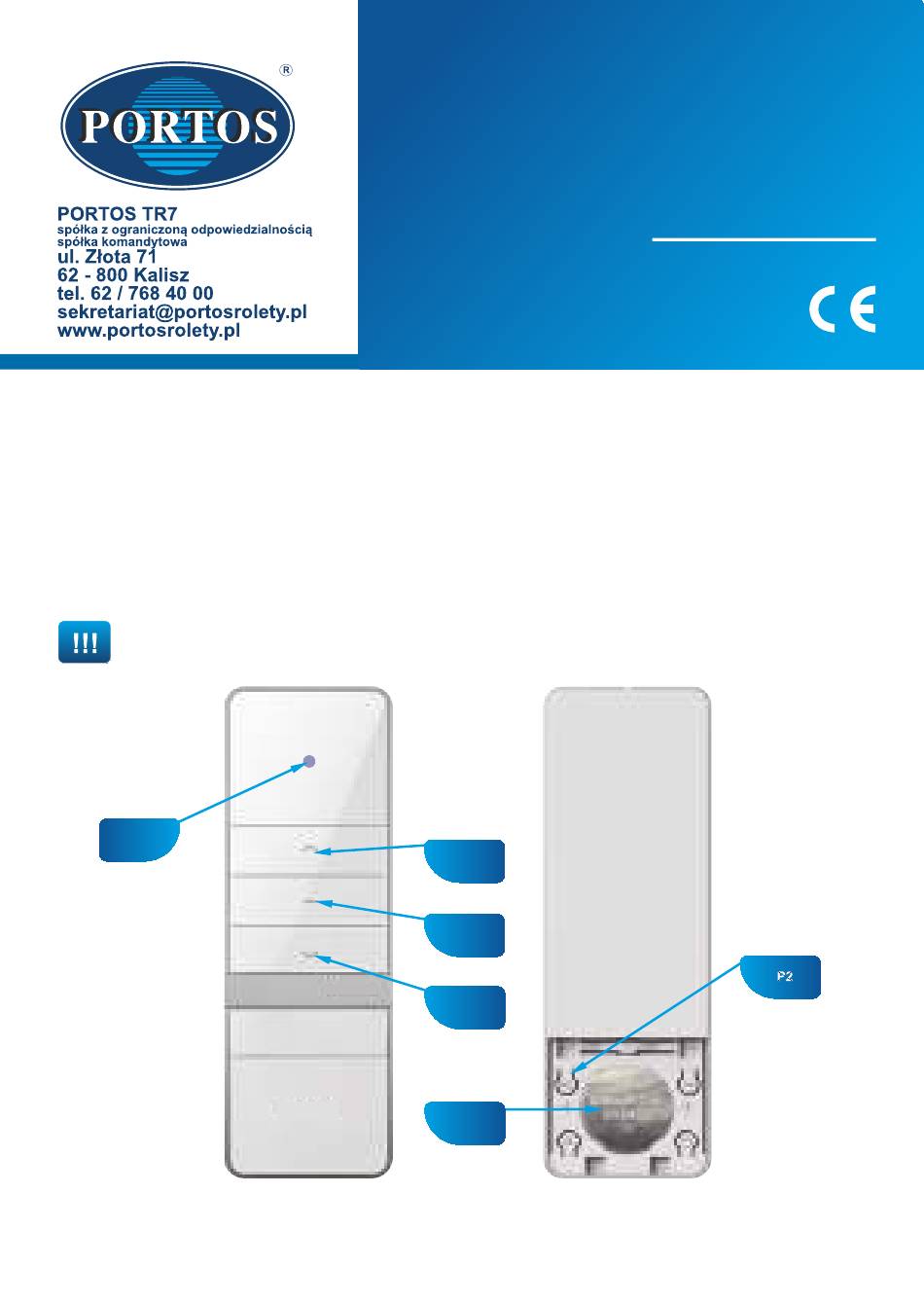

UP
STOP
DOWN
BATTERY
SLOT
USER MANUAL
DC1, DC15
DC1
(1 channel)
Advertisement
Related Manuals for Portos DC1
Summary of Contents for Portos DC1
- Page 1 PORTOS drive controlling system USER MANUAL DC1, DC15 The remotes operate at 433 MHz frequency Technical data : Power: 3V battery ( CR 2430 ) Operating frequency: 433 MHz Transmission power: 10 mW Operating temperature: from -10 ˚C to +50 ˚C...
- Page 2 NUMER KANAŁU STOP CHANNEL - DOWN CHANNEL + BATTERY SLOT DC15 (15 channels)
-
Page 3: Method One
1. Programming the radio drive on a specific channel of any transmitter. A. Method one IMPORTANT!!! While programming, only the drive being programmed should be connected to a power supply. After connecting the motor to a power supply, you will hear a long single beep sound and the motor will move briefly up and down (if you do not press any button within 12 seconds, the motor will quit the programming mode). - Page 4 2. Programming an external radio receiver on a specific channel of any transmitter. IMPORTANT!!! If you have an external radio receiver, follow the user manual for the device (i.e. XT-R, PPKR-313 or PPKR-400). 3. Changing the direction of rotation of the drive. METHOD 1: After assigning the device to a motor, check if the running direction is correct by switching the motor on with the device.
- Page 5 4. Channel deletion (deleting all channel settings). IMPORTANT!!! If you delete the settings of a particular channel, drives assigned to that channel will be completely deleted from other channels as well. METHOD 1: 1. Select a previously programmed channel on the display: 2.
- Page 6 4. Press P2 on the device you wish to program. You will hear 5 beeps and the motor will move briefly UP and DOWN. 6. Device operating mode. The PORTOS-RM radio drive can operate in two modes: Support mode Pressing and releasing the UP or DOWN button activates a programmed motor function (opening or closing the roller shutter).
-
Page 7: Changing The Operating Mode
7. Changing the operating mode. You can switch between the operating modes by following the instructions below: 1. Select a previously programmed channel. 2. Press P2, the motor will make a single beep sound and move briefly UP and DOWN. 3. - Page 8 NOTES ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
