Quick Guide – Fresh Forward Installation
Components
1. Fresh Forward Fan cartridge
2. Fresh Forward dormant cartridge
3. Flat grill
4. Curved Grill
5. External power supply or built-in power supply
6. 12 Volt extention cable
General
The Fresh Forward is an automatically controlled room to room ventilator with dynamic flow from 7
CFM to 30 CFM based on CO2 and Rh levels. It is wifi connected and runs from a 12 volt power
supply.
Minimum wall thickness is 5 inches and there is no specific maximum wall thickness as the fan
cartridge and dormant cartridge can be separated to suit the thicker wall.

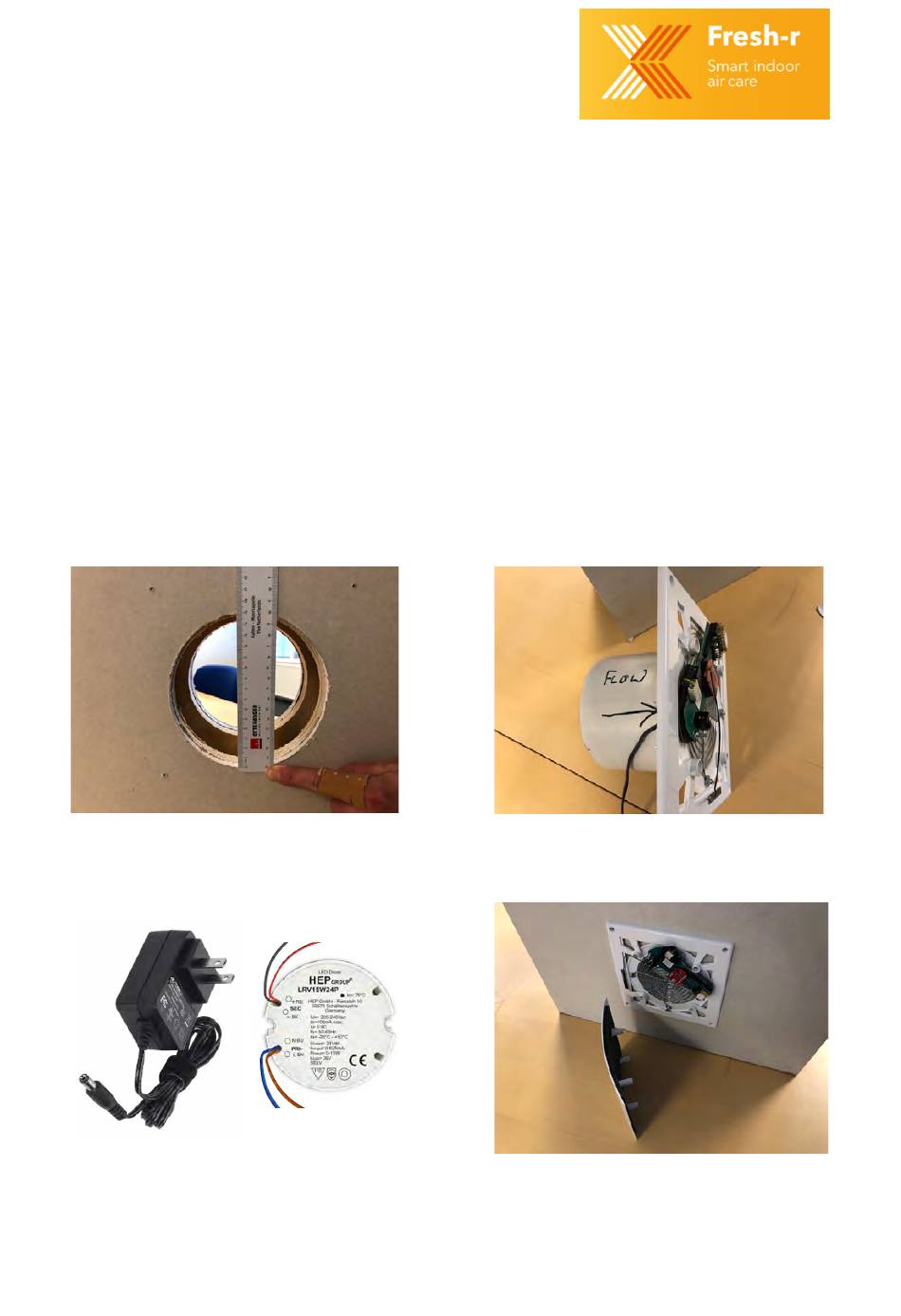

fig 1- Core hole trough the wall
fig 3 - External power supply (left)
Build-in power supply (right)
fig 2- Fan cartridge
Fig 4 - fan cartridge (from stale air side)
