Quick Guide – Fresh Forward Installation
Components
1. Fresh Forward Fan cartridege
2. Fresh Forward dormant cartridge
3. Flat grill
4. Curved Grill
5. LED Power supply
6. 12 Volt extention cable
General
The Fresh Forward is a room to room ventilator with dynamic flow from 12m3/hour to 50m3/hour
based on CO2. It is wifi connected and runs from a 12 volt power supply.
Minimum wall thickness is 12cm and there is no specific maximum wall thickness as the fan cartridge
and dormant cartridge can be seperated to suit the thicker wall.

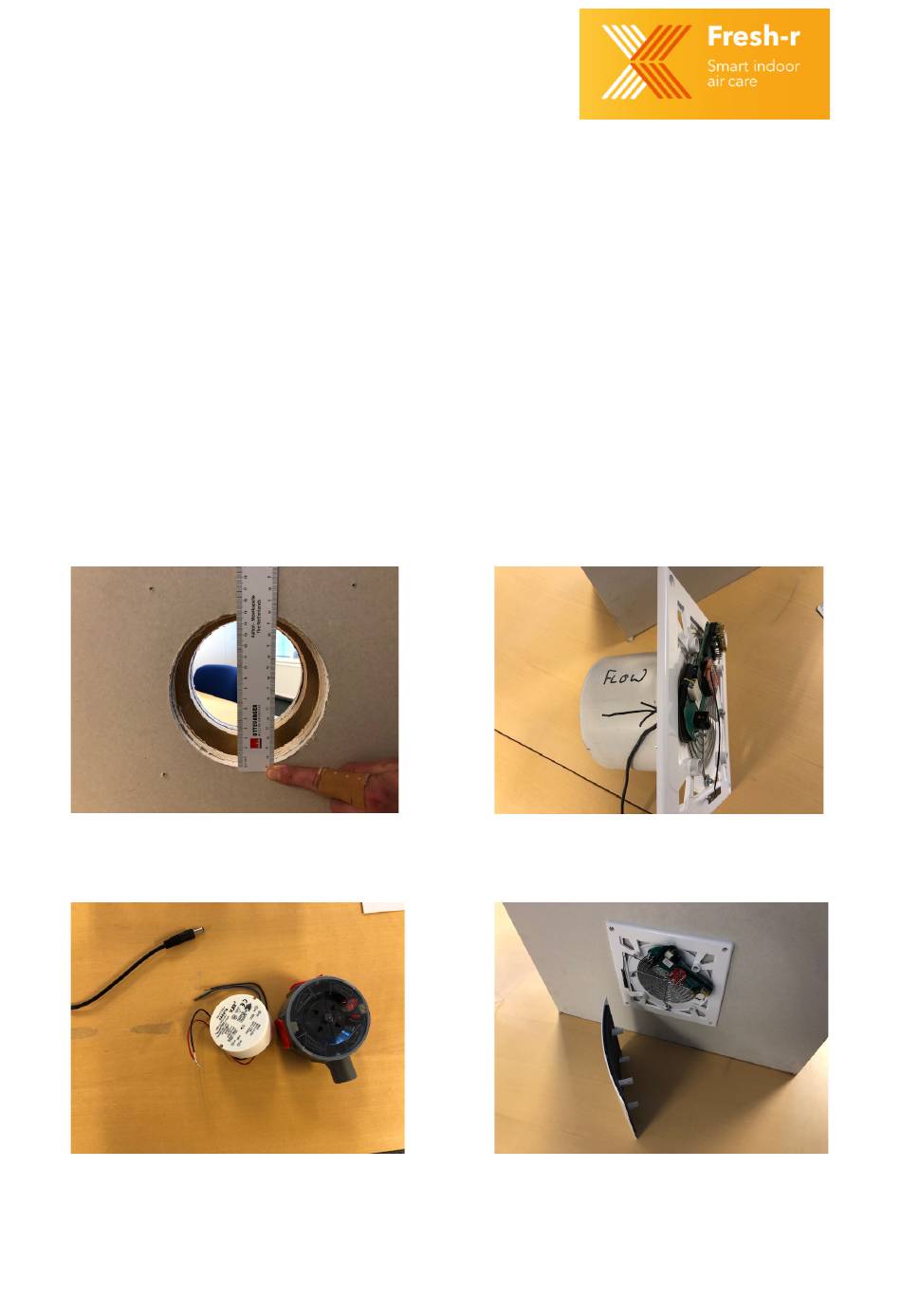

fig 1- Core hole trough the wall
fig 3 - LED Driver, 12v cable and connector box
fig 2- Fan cartridge
Fig 4 - fan cartridge (from stale air side)
