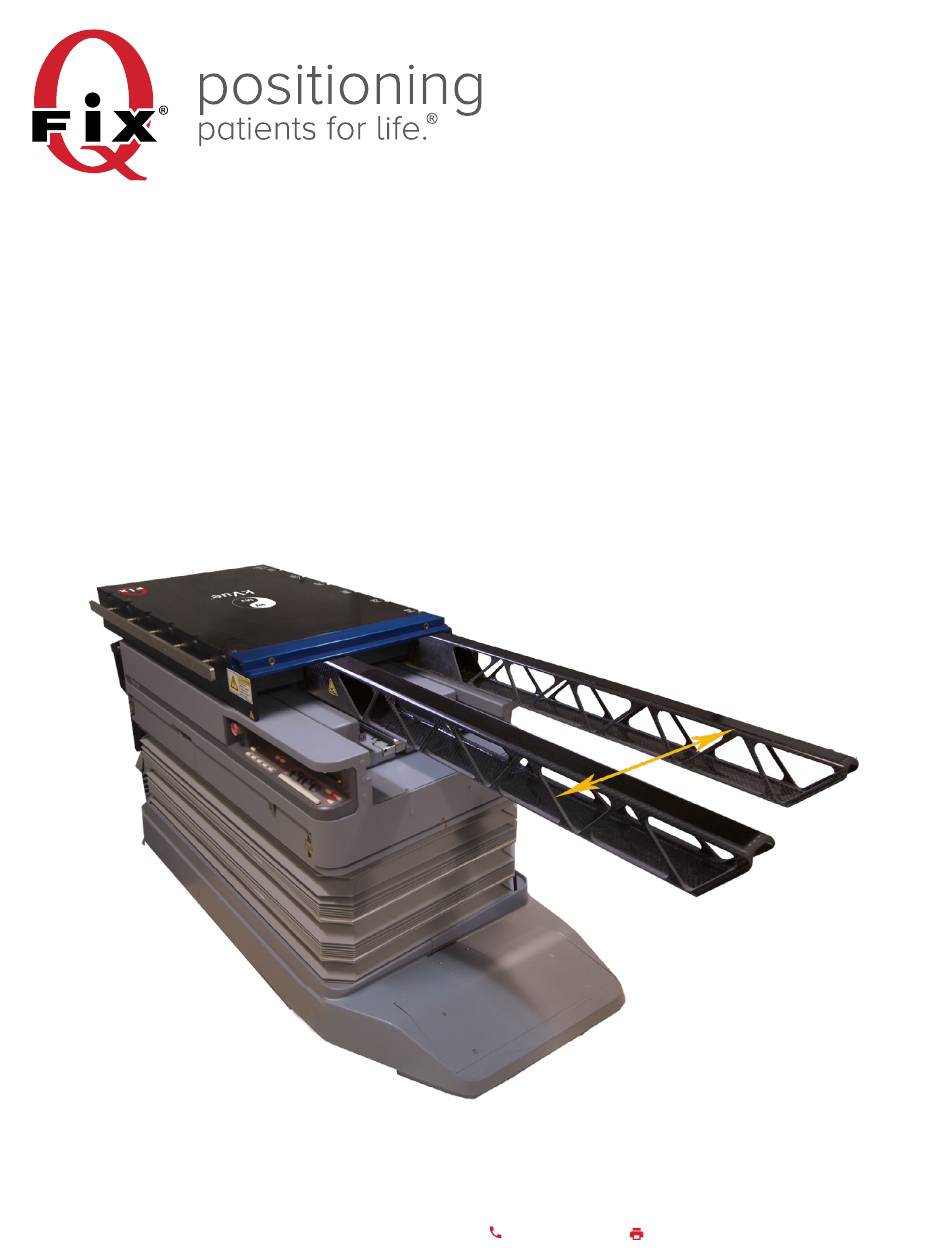

- Page 1 INSTALLATION MANUAL kVue™ Beam Assembly Qfix | 440 Church Road | Avondale, Pennsylvania 19311 USA | +1 484-720-6053 | +1 610-268-0588 | www.Qfix.com...
- Page 2 440 Church Rd, Avondale, Pennsylvania, USA Malta +1 484-720-6053 www.Qfix.com kVue, Stealth Beam and OneTouch are trademarks of Qfix. INSTALLATION MANUAL – 2002659_kVue Beam Assembly_EN Qfix | 440 Church Road | Avondale, Pennsylvania 19311 USA | +1 484-720-6053 | +1 610-268-0588 | www.Qfix.com...
-
Page 3: Table Of Contents
TOOLS REQUIRED (NOT PROVIDED): ....................... 4 WARNING LABELS & DESCRIPTIONS ....................... 5 DISASSEMBLY INSTRUCTIONS ............................7 ASSEMBLY INSTRUCTIONS ............................... 8 INSTALLATION MANUAL – 2002659_kVue Beam Assembly_EN Qfix | 440 Church Road | Avondale, Pennsylvania 19311 USA | +1 484-720-6053 | +1 610-268-0588 | www.Qfix.com... -
Page 4: General Precautions
OR DAMAGE TO THE EQUIPMENT. COLLISION HAZARDS Use caution when moving the kVue or gantry to avoid equipment damage or patient injury. The wide variety of motions obtainable with couch bases and treatment heads may present situations where the kVue Insert collides with other items. -
Page 5: Warning Labels & Descriptions
Insert or cause injury. ONETOUCH™ LATCH Place a patient on the kVue ONLY when the red collar of the latch button is not visible. The OneTouch Latch has a built-in indicator to verify proper engagement. If the red collar of the latch button is visible, the locking mechanism is not engaged. -
Page 6: Pinch Points
GENERAL PRECAUTIONS WARNING LABELS & DESCRIPTIONS PINCH POINTS Use caution when moving the kVue to avoid patient injury. Extreme care has been taken to minimize pinch points and other hazards associated with the kVue. Common pinch points include: • Between the kVue Insert and the OneTouch Latch •... -
Page 7: Disassembly Instructions
1. Remove any kVue Insert that may be installed. 2. Remove the kVue Back Panel A. Remove (2) 1/ 4 "-20 x 1" FHCS and (2) 1/ 4 "-20 x 1.5" FHCS from the kVue Back Panel B. Remove the kVue Back Panel and set aside 3. -
Page 8: Assembly Instructions
(2) 10-24 x 5/8" screws to secure the front mount block to the channel as shown in Fig. 1. The part may need to be moved around to face the holes. INSTALLATION MANUAL – 2002659_kVue Beam Assembly_EN Qfix | 440 Church Road | Avondale, Pennsylvania 19311 USA | +1 484-720-6053 | +1 610-268-0588 | www.Qfix.com... - Page 9 ! NOTE ! You may need to press down slightly on the ends of the beams to ensure the beam rollers are contacting the cam surface. Fig. 8 INSTALLATION MANUAL – 2002659_kVue Beam Assembly_EN Qfix | 440 Church Road | Avondale, Pennsylvania 19311 USA | +1 484-720-6053 | +1 610-268-0588 | www.Qfix.com...
- Page 10 6. Attach the kVue OneTouch™ Assembly using (4) 10-24 x 5/8" screws. (Leave these screws slightly loose). Make the surfaces of the unit as flush with the edges of the assembly as possible. Install a back panel onto the kVue assembly and screw into place.
- Page 11 INSTALLATION MANUAL – 2002659_kVue Beam Assembly_EN Qfix | 440 Church Road | Avondale, Pennsylvania 19311 USA | +1 484-720-6053 | +1 610-268-0588 | www.Qfix.com...
- Page 12 440 Church Road Avondale, PA 19311 USA www.Qfix.com +1 484-720-6053 / 800.526.5247 +1 610.268.0588 / 800.831.8174 2002659_EN_G sales@Qfix.com 2021-07...
